| Part number | UCFL209 | |
|---|---|---|
| EAN | 4047643243827 | |
| Unit | Each | |

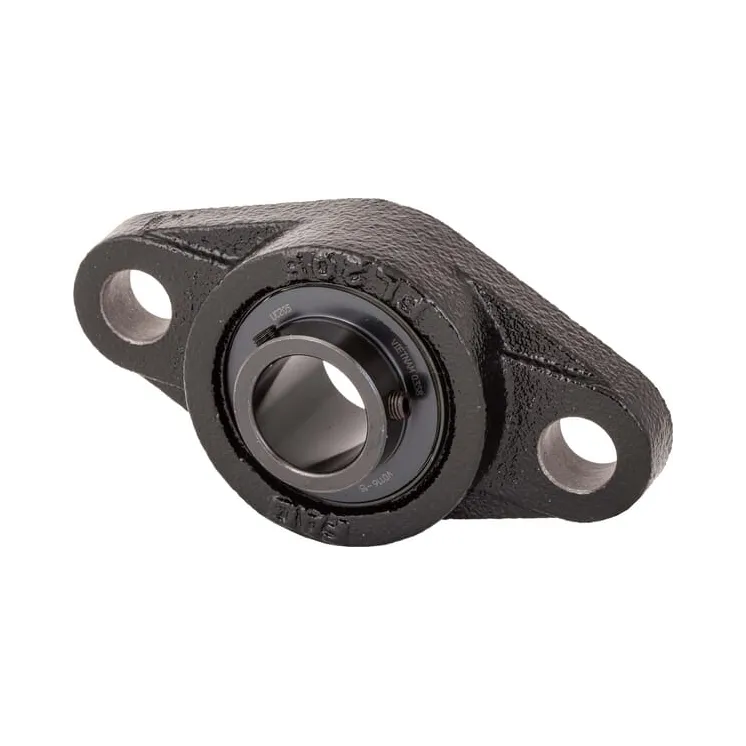

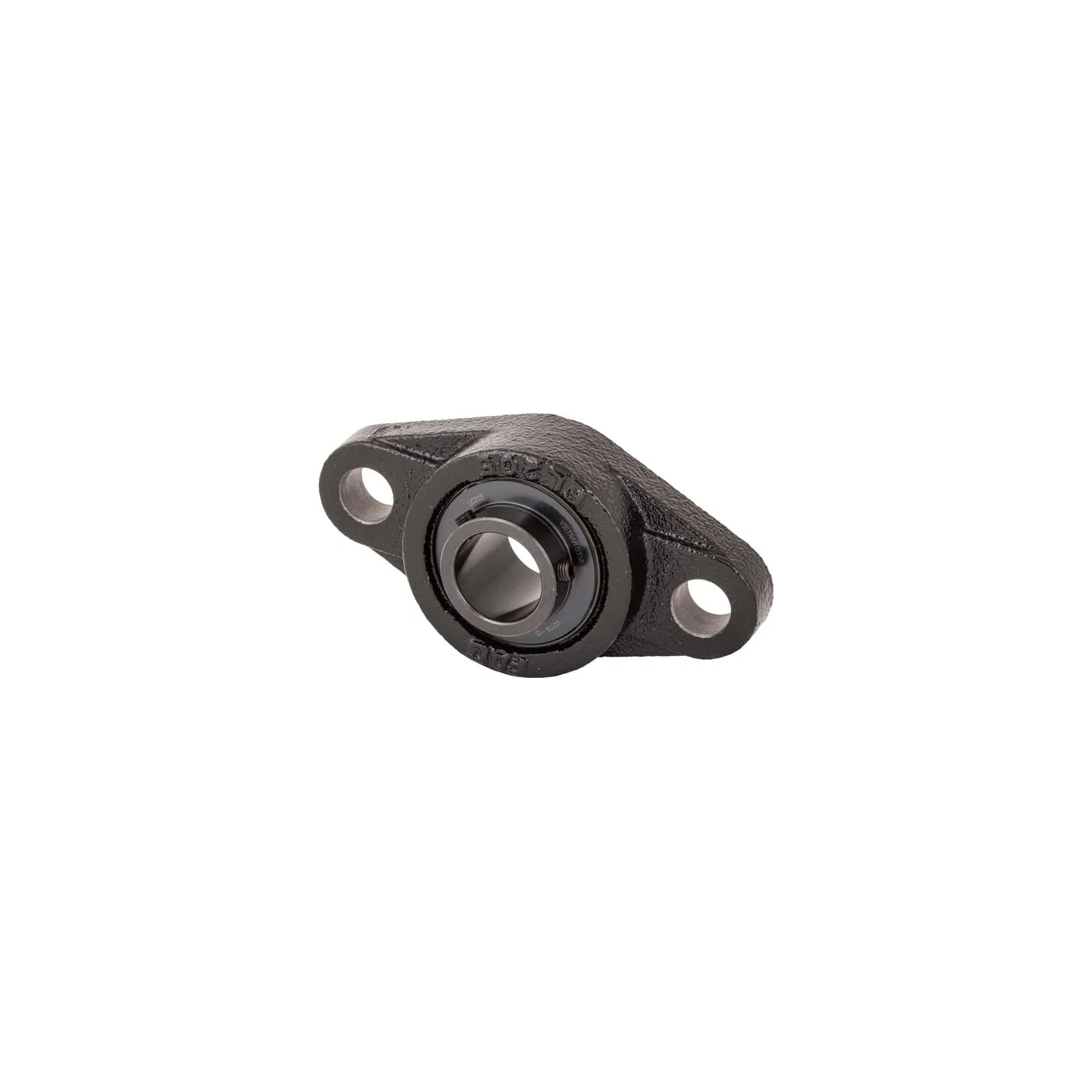

| Long description | These ball bearing units with oval flange are pre-assembled and pre-lubricated. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment. | |
| Pros |
| |
| Product details |
| |
| Includes |
| |
| Housing type | Oval flange | |
| dBearing inside diameter | 45 mm | |
| aTotal length | 188 mm | |
| bHousing width | 108 mm | |
| ZTotal height | 52.2 mm | |
| lHousing height | 38 mm | |
| BiBearing inner ring width | 49.2 mm | |
| iBearing balls distance to locking side end | 22 mm | |
| eMounting holes distance | 148 mm | |
| SMounting holes diameter | 19 mm | |
| QGrease nipple thread diameter | M6 | |
| Original number equivalent | UCFL209-J7 |
