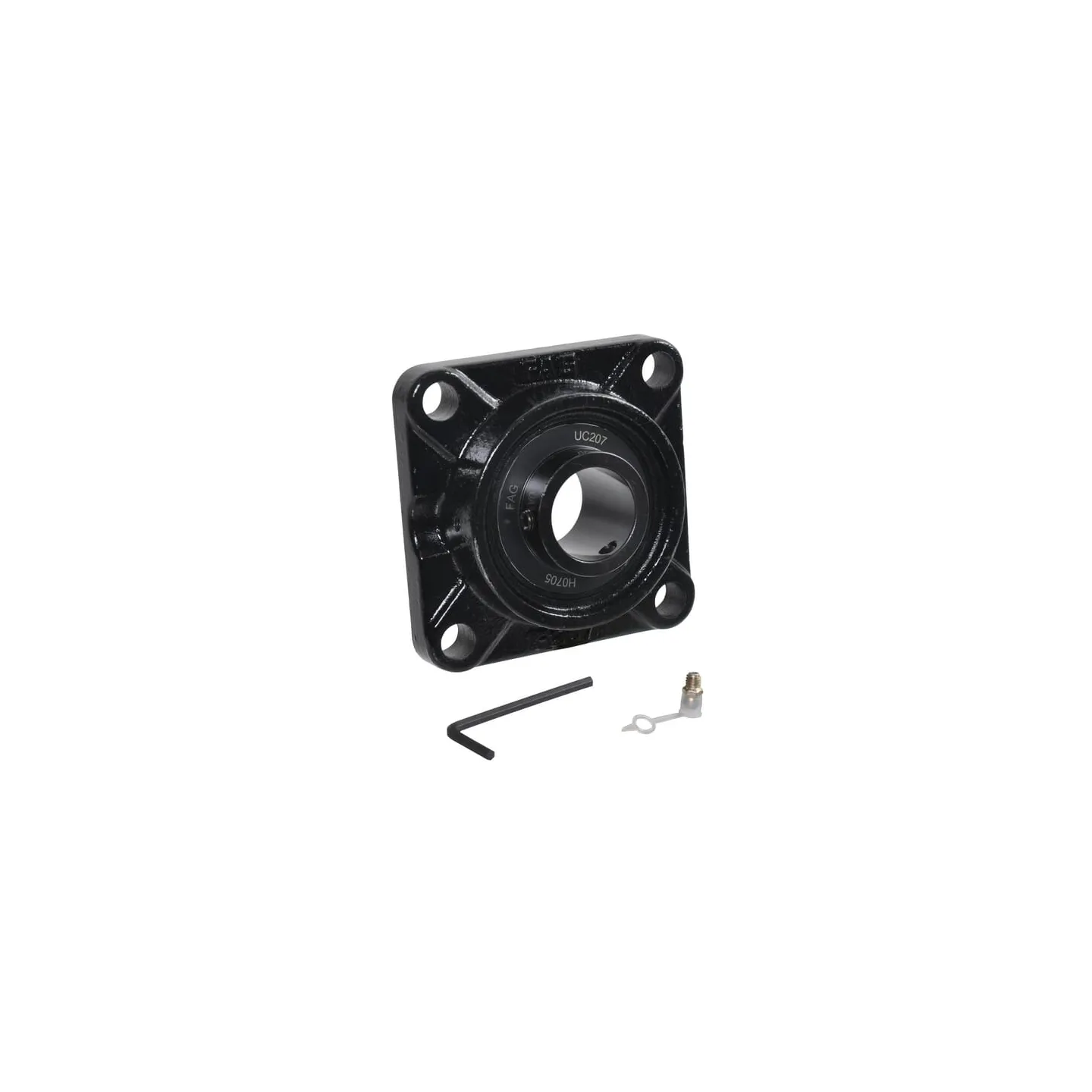

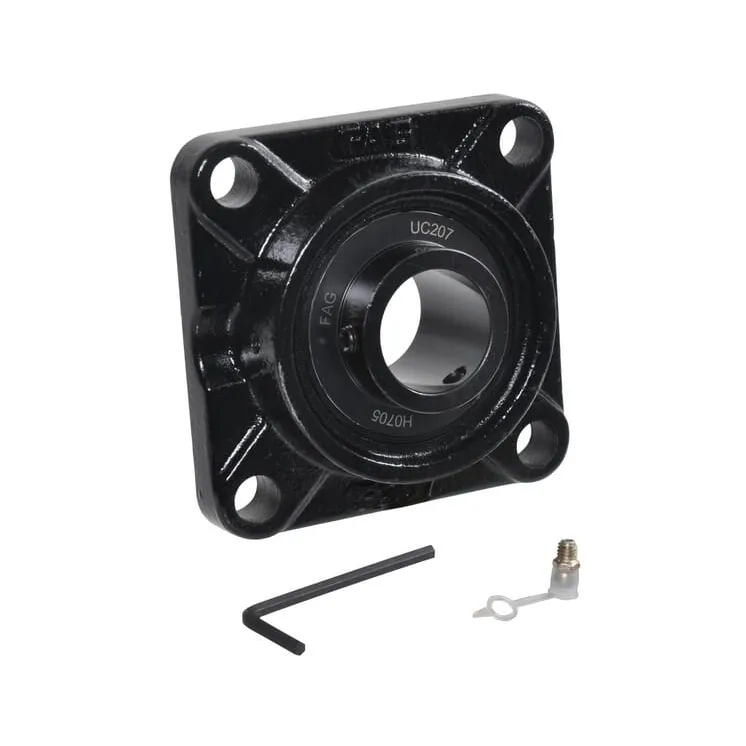

Dzīvojamā vienība UCF UCF206 924110206 VLD3727

Name: Dzīvojamā vienība UCF UCF206 924110206 VLD3727
Brand: INA/FAG
SKU: UCF206
Price: 26.52 EUR
Availability: InStock

Apmaksas iespējas

26,52 €

AR PVN

4-5 Darba dienas

Dzīvojamā vienība UCF UCF206 INA/FAG 924110206 VLD3727

IR NOLIKTAVĀ

ID: 65375

Apraksts

Part number	UCF206
EAN	4047643247689
Unit	Each
Long description	These square ball bearing units with four bolt holes are pre-assembled and pre-lubricated. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment.
Pros	Highly suitable for limited installation spaces Assembled, ready for use Pre-lubricated
Product details	Inner bearing has extended inner ring on both sides with 2 adjusting screws Regreasable Self-aligning ball bearing Wide inner ring ball bearing
Properties	Inner bearing has extended inner ring with 2 adjusting screws on both sides Can be subsequently lubricated
Includes	Bearing block Bearing Grease nipple
Housing type	Square flange
dBearing inside diameter	30 mm
aTotal length	108 mm
aHousing width	108 mm
Total height	40.2 mm
lHousing height	31 mm
BiBearing inner ring width	38.1 mm
Bearing balls distance to locking side end	18 mm
lBearing balls distance to mounting surface	15.9 mm
eMounting holes distance	83 mm
Mounting holes diameter	12 mm
Grease nipple thread diameter	M6
Basic radial load static	11300 N
Basic radial load dynamic	19500 N
Original number equivalent	UCF206-J7
