Dzīvojamā vienība UCF UCF209 VLD3730

Name: Dzīvojamā vienība UCF UCF209 VLD3730
Brand: INA/FAG
SKU: UCF209
Price: 36.32 EUR
Availability: InStock

Apmaksas iespējas

36,32 €

AR PVN

4-5 Darba dienas

Dzīvojamā vienība UCF UCF209 INA/FAG VLD3730

IR NOLIKTAVĀ

ID: 65377

Apraksts

Part number	UCF209
EAN	4047643247603
Unit	Each

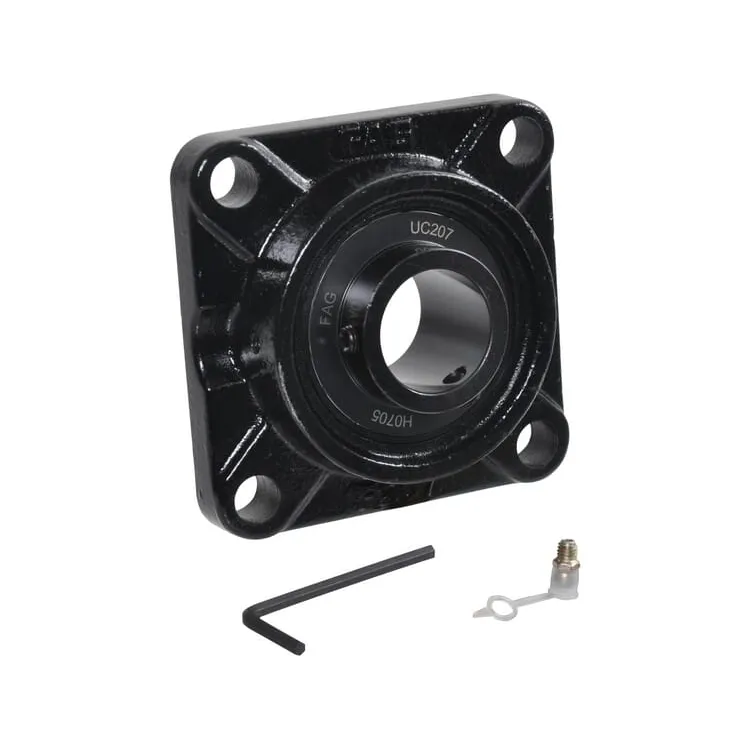

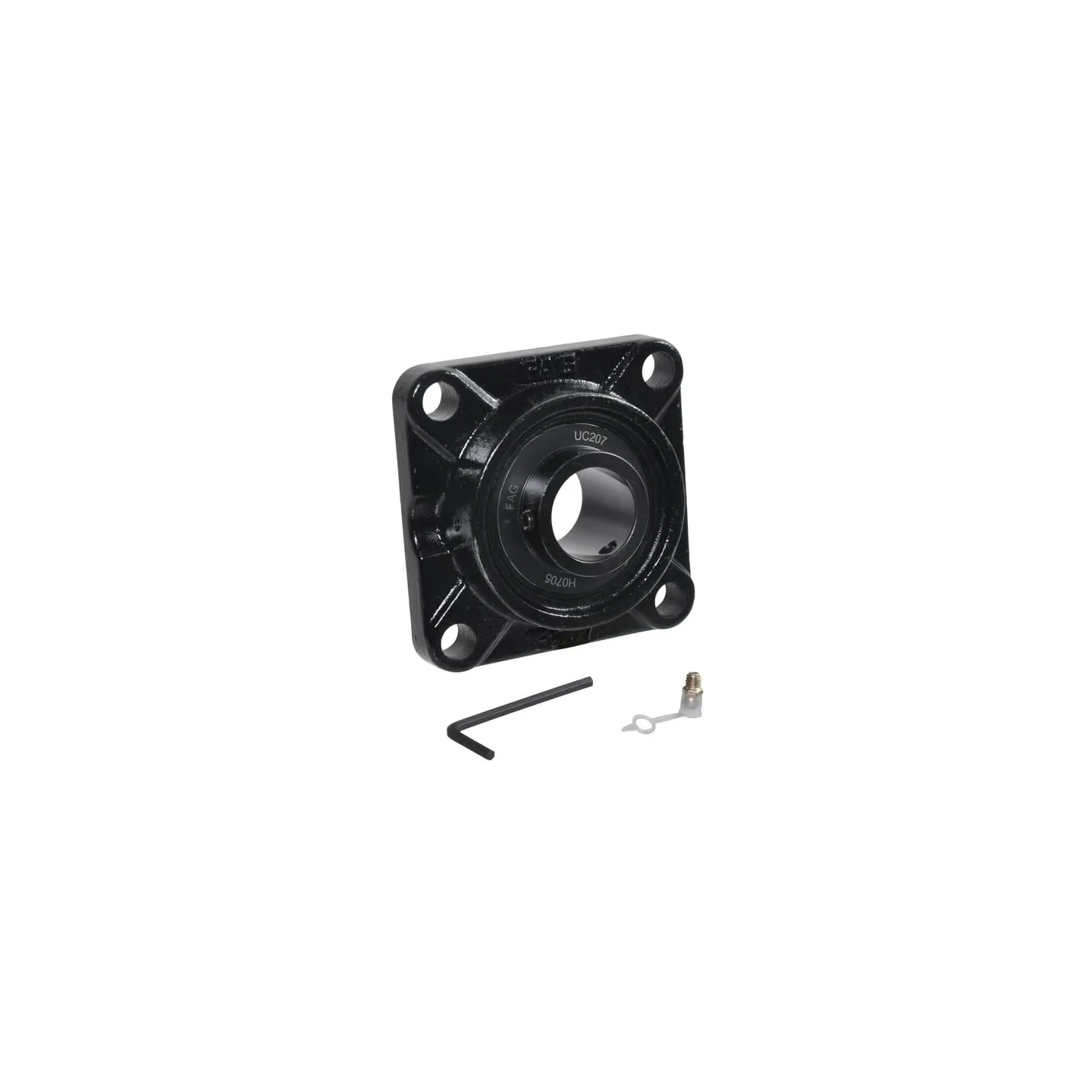

Long description	These square ball bearing units with four bolt holes are pre-assembled and pre-lubricated. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment.
Pros	Highly suitable for limited installation spaces Assembled, ready for use Pre-lubricated
Product details	Inner bearing has extended inner ring on both sides with 2 adjusting screws Regreasable Self-aligning ball bearing Wide inner ring ball bearing
Properties	Inner bearing has extended inner ring with 2 adjusting screws on both sides Can be subsequently lubricated
Includes	Bearing block Bearing Grease nipple
Housing type	Square flange
dBearing inside diameter	45 mm
aTotal length	137 mm
aHousing width	137 mm
Total height	52.2 mm
lHousing height	38 mm
BiBearing inner ring width	49.2 mm
Bearing balls distance to locking side end	22 mm
eMounting holes distance	105 mm
Mounting holes diameter	16 mm
Grease nipple thread diameter	M6
Basic radial load static	20400 N
Basic radial load dynamic	32500 N
Original number equivalent	UCF209-J7
