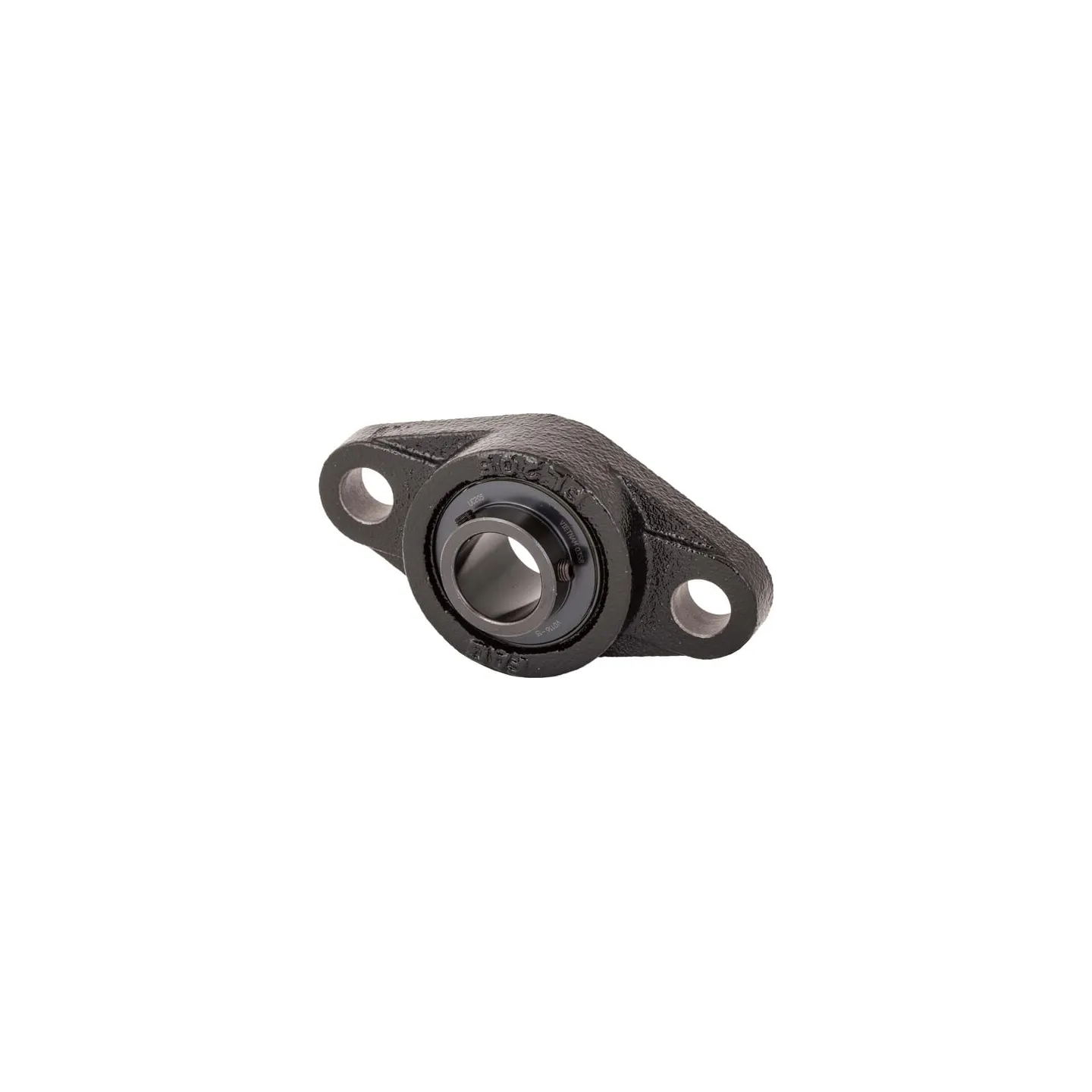

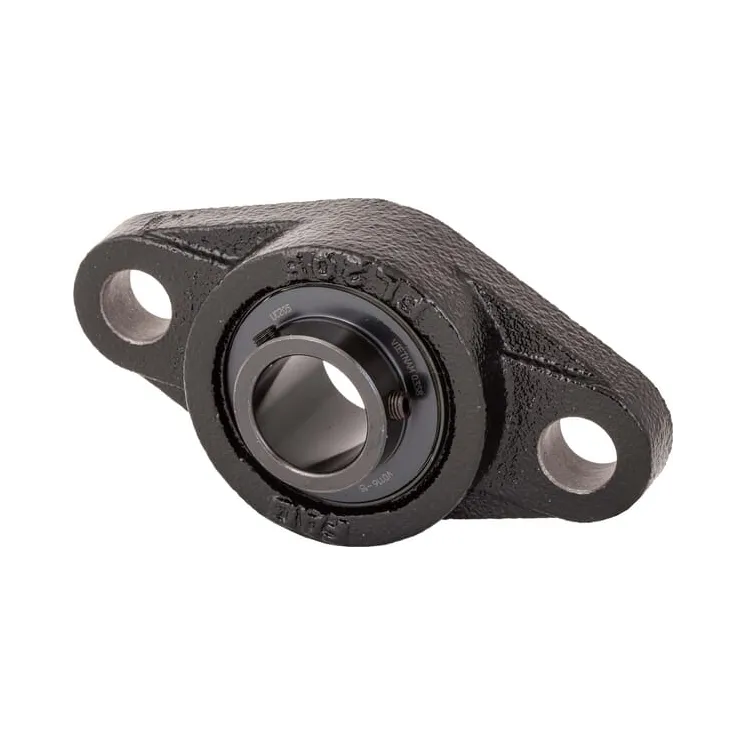

Korpuss UCFL UCFL207

Name: Korpuss UCFL UCFL207
Brand: INA/FAG
SKU: UCFL207
Price: 27 EUR
Availability: InStock

Apmaksas iespējas

27,00 €

AR PVN

4-5 Darba dienas

Korpuss UCFL UCFL207 INA/FAG

IR NOLIKTAVĀ

ID: 65378

Apraksts

Part number	UCFL207
EAN	4047643247658
Unit	Each
Long description	These ball bearing units with oval flange are pre-assembled and pre-lubricated. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment.
Pros	Highly suitable for limited installation spaces Assembled, ready for use Pre-lubricated
Product details	Inner bearing has extended inner ring on both sides with 2 adjusting screws Regreasable Self-aligning ball bearing Wide inner ring ball bearing
Includes	Bearing block Bearing Grease nipple
Housing type	Oval flange
dBearing inside diameter	35 mm
aTotal length	161 mm
bHousing width	90 mm
ZTotal height	44.4 mm
lHousing height	34 mm
BiBearing inner ring width	42.9 mm
iBearing balls distance to locking side end	19 mm
nBearing balls distance to mounting surface	17.5 mm
eMounting holes distance	130 mm
SMounting holes diameter	16 mm
QGrease nipple thread diameter	M6
Original number equivalent	UCFL207-J7
