Dzīvojamā vienība UCF UCF213 UCF213TR

Name: Dzīvojamā vienība UCF UCF213 UCF213TR
Brand: INA/FAG
SKU: UCF213
Price: 106.65 EUR
Availability: InStock

Apmaksas iespējas

106,65 €

AR PVN

4-5 Darba dienas

Dzīvojamā vienība UCF UCF213 INA/FAG UCF213TR

IR NOLIKTAVĀ

ID: 65385

Apraksts

Part number	UCF213
EAN	4047643261388
Unit	Each

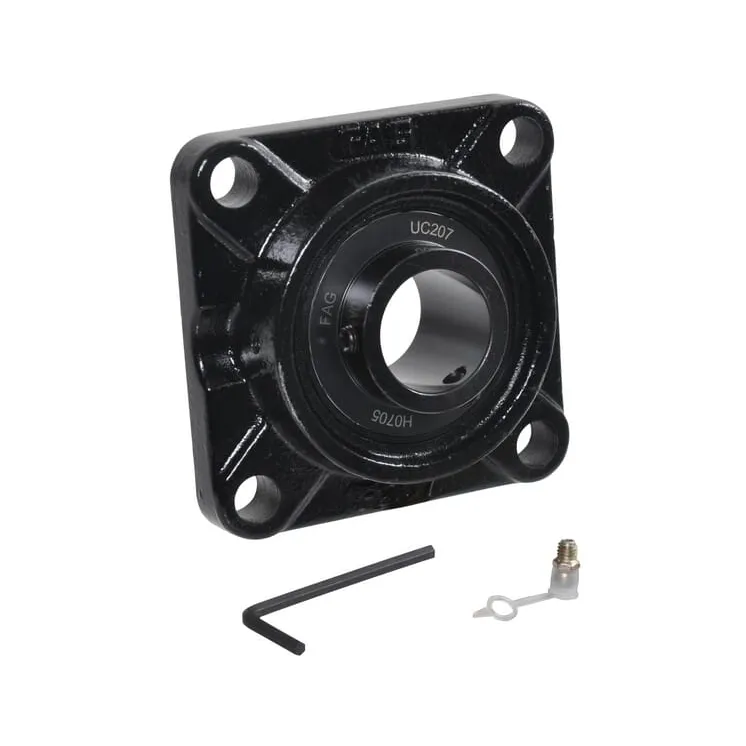

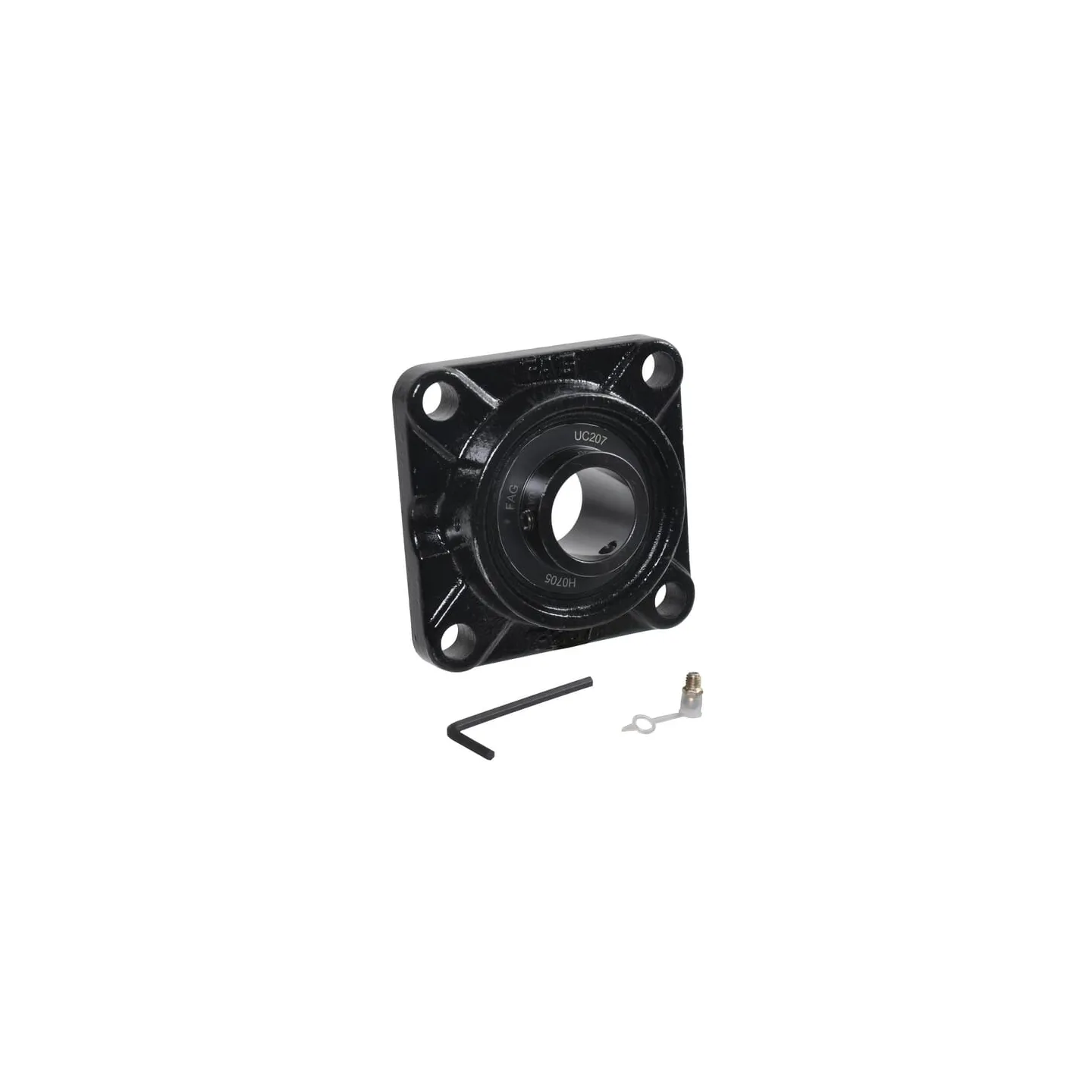

Long description	These square ball bearing units with four bolt holes are pre-assembled and pre-lubricated. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment.
Pros	Highly suitable for limited installation spaces Assembled, ready for use Pre-lubricated
Product details	Inner bearing has extended inner ring on both sides with 2 adjusting screws Regreasable Self-aligning ball bearing Wide inner ring ball bearing
Properties	Inner bearing has extended inner ring with 2 adjusting screws on both sides Can be subsequently lubricated
Includes	Bearing block Bearing Grease nipple
Housing type	Square flange
dBearing inside diameter	65 mm
aTotal length	187 mm
aHousing width	187 mm
Total height	69.7 mm
lHousing height	50 mm
BiBearing inner ring width	65.1 mm
Bearing balls distance to locking side end	30 mm
lBearing balls distance to mounting surface	25.4 mm
eMounting holes distance	149 mm
Mounting holes diameter	19 mm
Grease nipple thread diameter	M6
Basic radial load static	40000 N
Basic radial load dynamic	61000 N
