| Part number | UCFL210 | |
|---|---|---|
| EAN | 4047643243834 | |
| Unit | Each | |

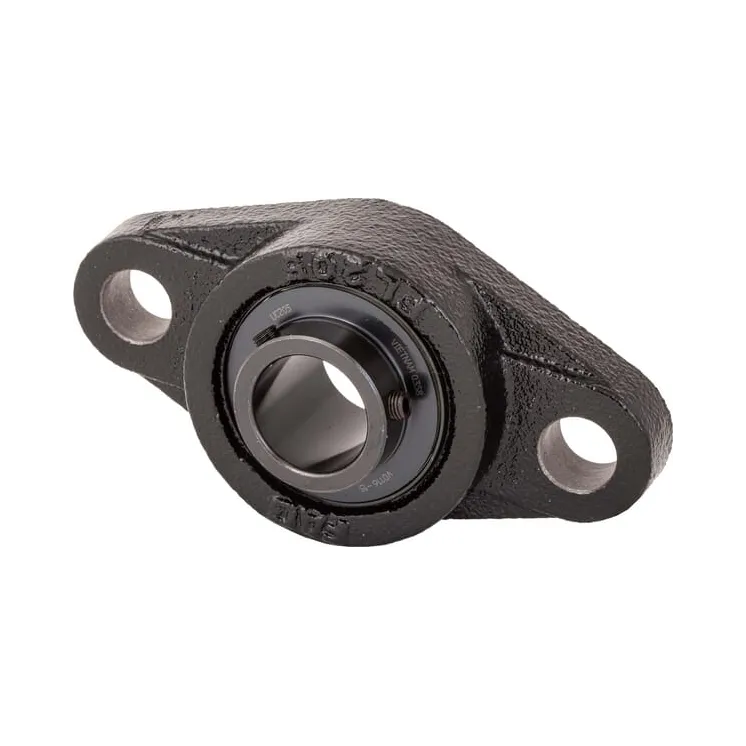

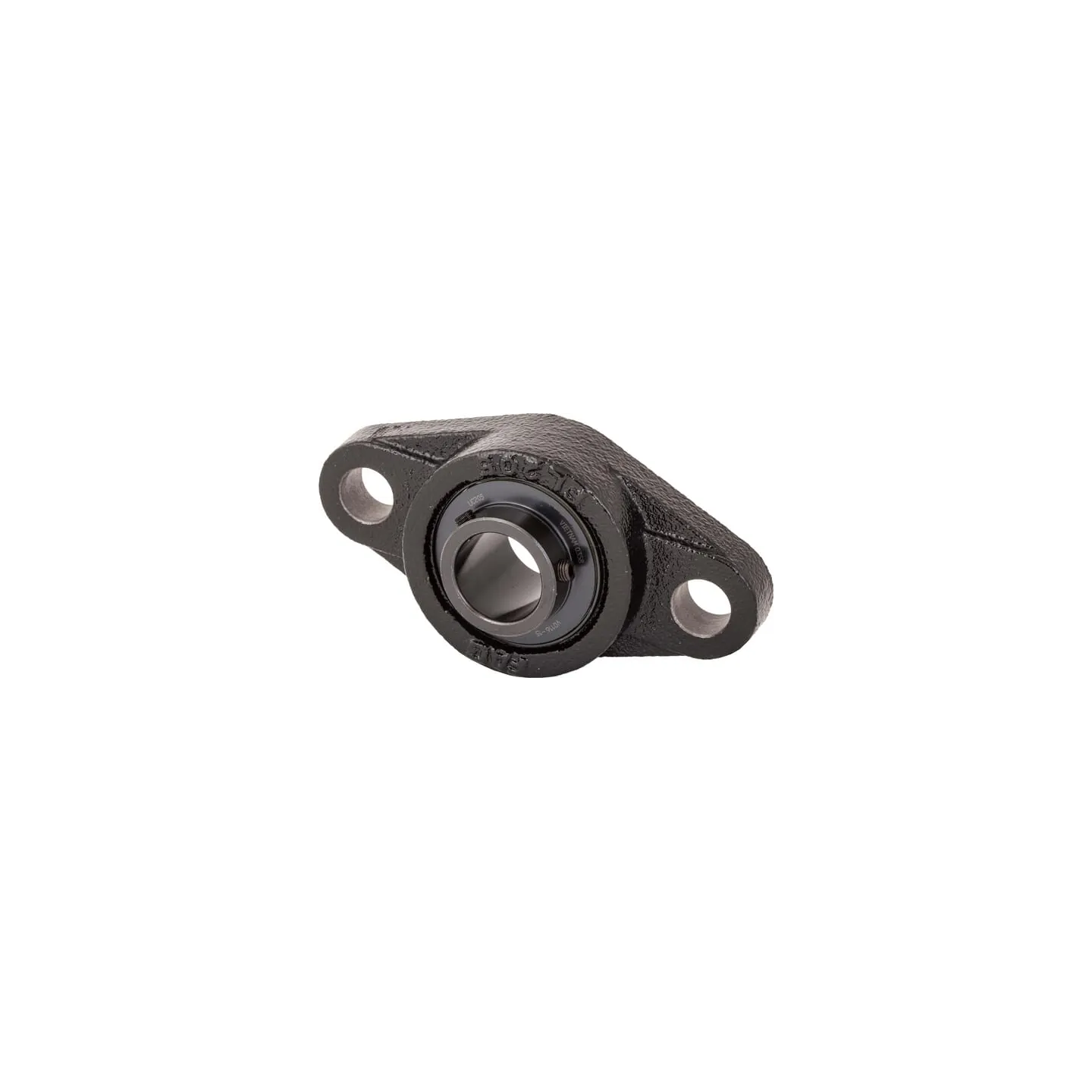

| Long description | These ball bearing units with oval flange are pre-assembled and pre-lubricated. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment. | |
| Pros |
| |
| Product details |
| |
| Includes |
| |
| Housing type | Oval flange | |
| dBearing inside diameter | 50 mm | |
| aTotal length | 197 mm | |
| bHousing width | 115 mm | |
| ZTotal height | 54.6 mm | |
| lHousing height | 40 mm | |
| BiBearing inner ring width | 51.6 mm | |
| iBearing balls distance to locking side end | 22 mm | |
| eMounting holes distance | 157 mm | |
| SMounting holes diameter | 19 mm | |
| QGrease nipple thread diameter | M6 | |
| Original number equivalent | UCFL210-J7 |
