Dzīvojamā vienība UCF UCF211 UCF211NB UCF211TR

Name: Dzīvojamā vienība UCF UCF211 UCF211NB UCF211TR
Brand: INA/FAG
SKU: UCF211
Price: 55.97 EUR
Availability: InStock

Apmaksas iespējas

55,97 €

AR PVN

4-5 Darba dienas

Dzīvojamā vienība UCF UCF211 INA/FAG UCF211NB UCF211TR

IR NOLIKTAVĀ

ID: 65396

Apraksts

Part number	UCF211
EAN	4047643247566
Unit	Each

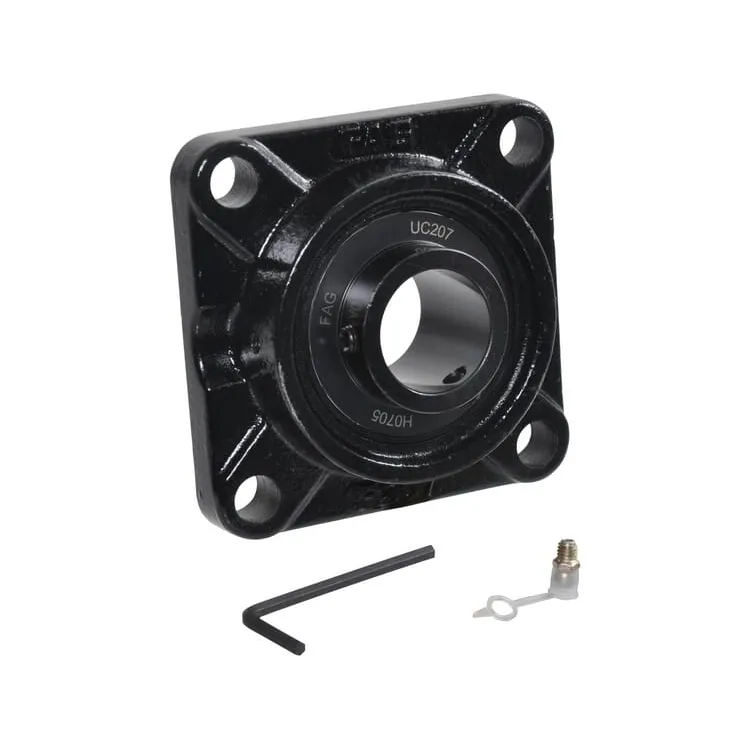

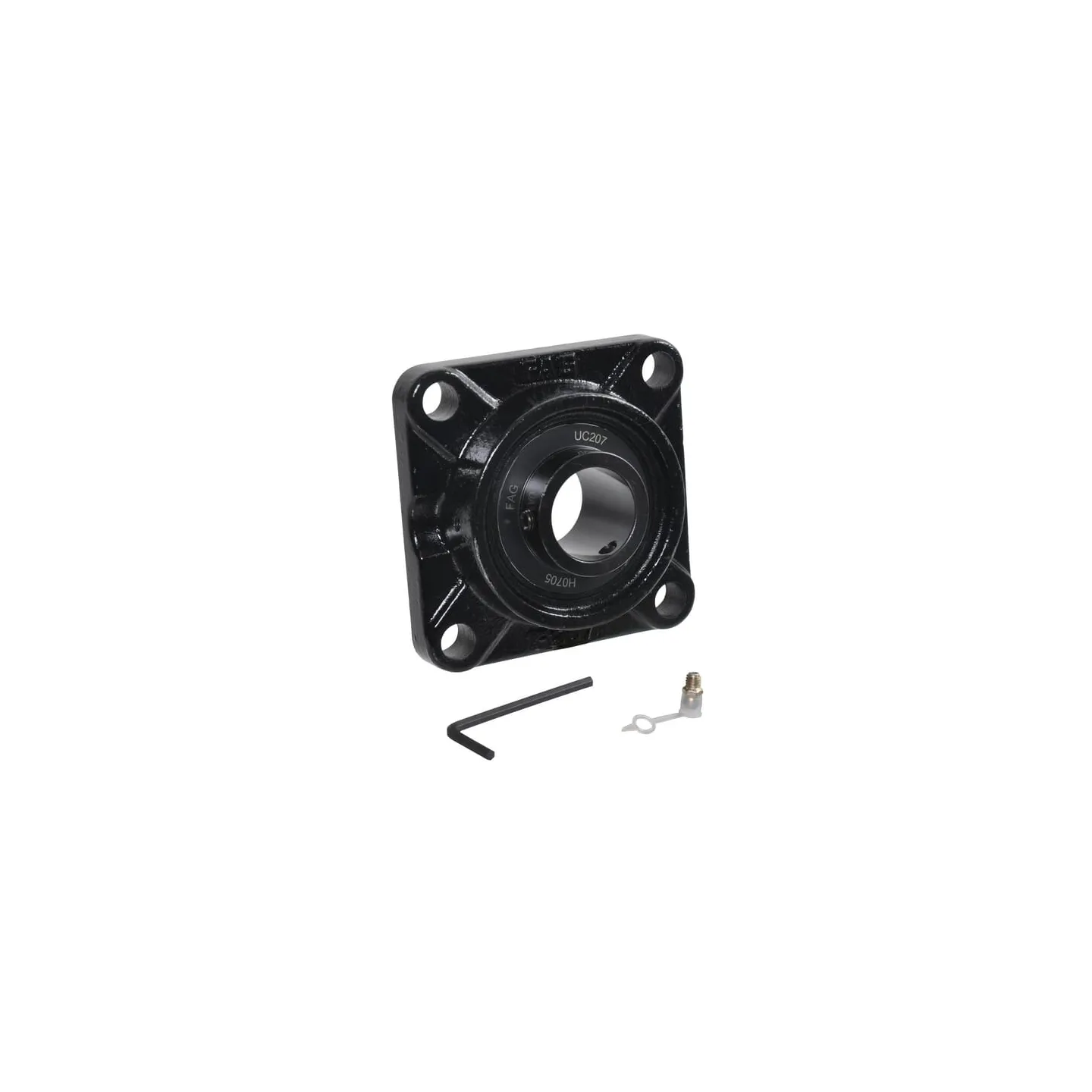

Long description	These square ball bearing units with four bolt holes are pre-assembled and pre-lubricated. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment.
Pros	Highly suitable for limited installation spaces Assembled, ready for use Pre-lubricated
Product details	Inner bearing has extended inner ring on both sides with 2 adjusting screws Regreasable Self-aligning ball bearing Wide inner ring ball bearing
Properties	Inner bearing has extended inner ring with 2 adjusting screws on both sides Can be subsequently lubricated
Includes	Bearing block Bearing Grease nipple
Housing type	Square flange
dBearing inside diameter	55 mm
aTotal length	162 mm
aHousing width	162 mm
Total height	58.4 mm
lHousing height	43 mm
BiBearing inner ring width	55.6 mm
Bearing balls distance to locking side end	25 mm
lBearing balls distance to mounting surface	22.2 mm
eMounting holes distance	130 mm
Mounting holes diameter	19 mm
Grease nipple thread diameter	M6
Basic radial load static	23000 N
Basic radial load dynamic	35000 N
Original number equivalent	UCF211-J7
