Dzīvojamā vienība UCF UCF205 924110205

Name: Dzīvojamā vienība UCF UCF205 924110205
Brand: INA/FAG
SKU: UCF205
Price: 22.24 EUR
Availability: InStock

Apmaksas iespējas

22,24 €

AR PVN

4-5 Darba dienas

Dzīvojamā vienība UCF UCF205 INA/FAG 924110205

IR NOLIKTAVĀ

ID: 65398

Apraksts

Part number	UCF205
EAN	4047643228305
Unit	Each

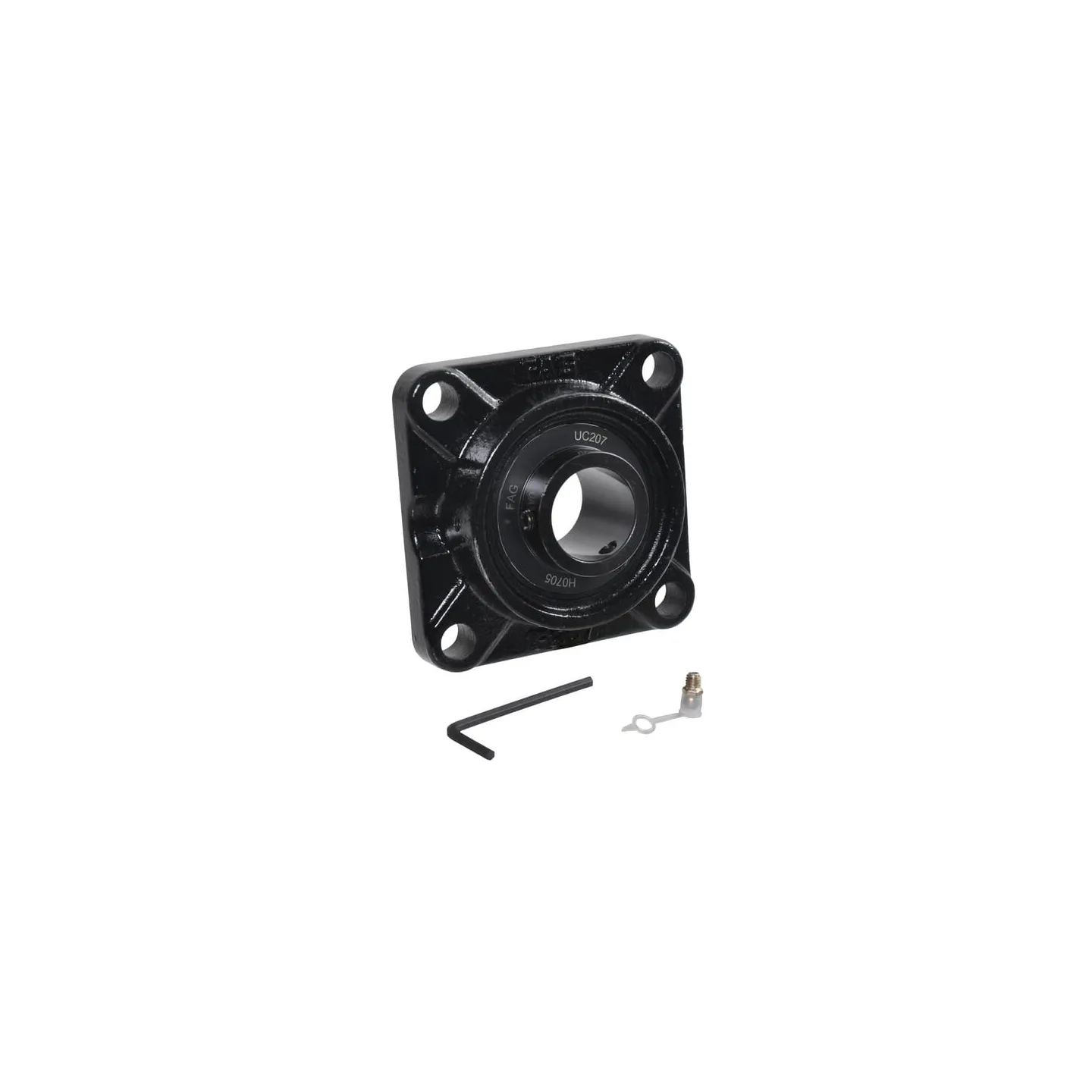

Long description	These square ball bearing units with four bolt holes are pre-assembled and pre-lubricated. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment.
Pros	Highly suitable for limited installation spaces Assembled, ready for use Pre-lubricated
Product details	Inner bearing has extended inner ring on both sides with 2 adjusting screws Regreasable Self-aligning ball bearing Wide inner ring ball bearing
Properties	Inner bearing has extended inner ring with 2 adjusting screws on both sides Can be subsequently lubricated
Includes	Bearing block Bearing Grease nipple
Housing type	Square flange
dBearing inside diameter	25 mm
aTotal length	95 mm
aHousing width	95 mm
Total height	35.7 mm
lHousing height	27 mm
BiBearing inner ring width	34 mm
Bearing balls distance to locking side end	16 mm
lBearing balls distance to mounting surface	14.3 mm
eMounting holes distance	70 mm
Mounting holes diameter	12 mm
Grease nipple thread diameter	M6
Basic radial load static	7800 N
Basic radial load dynamic	14000 N
Original number equivalent	UCF205-J7
