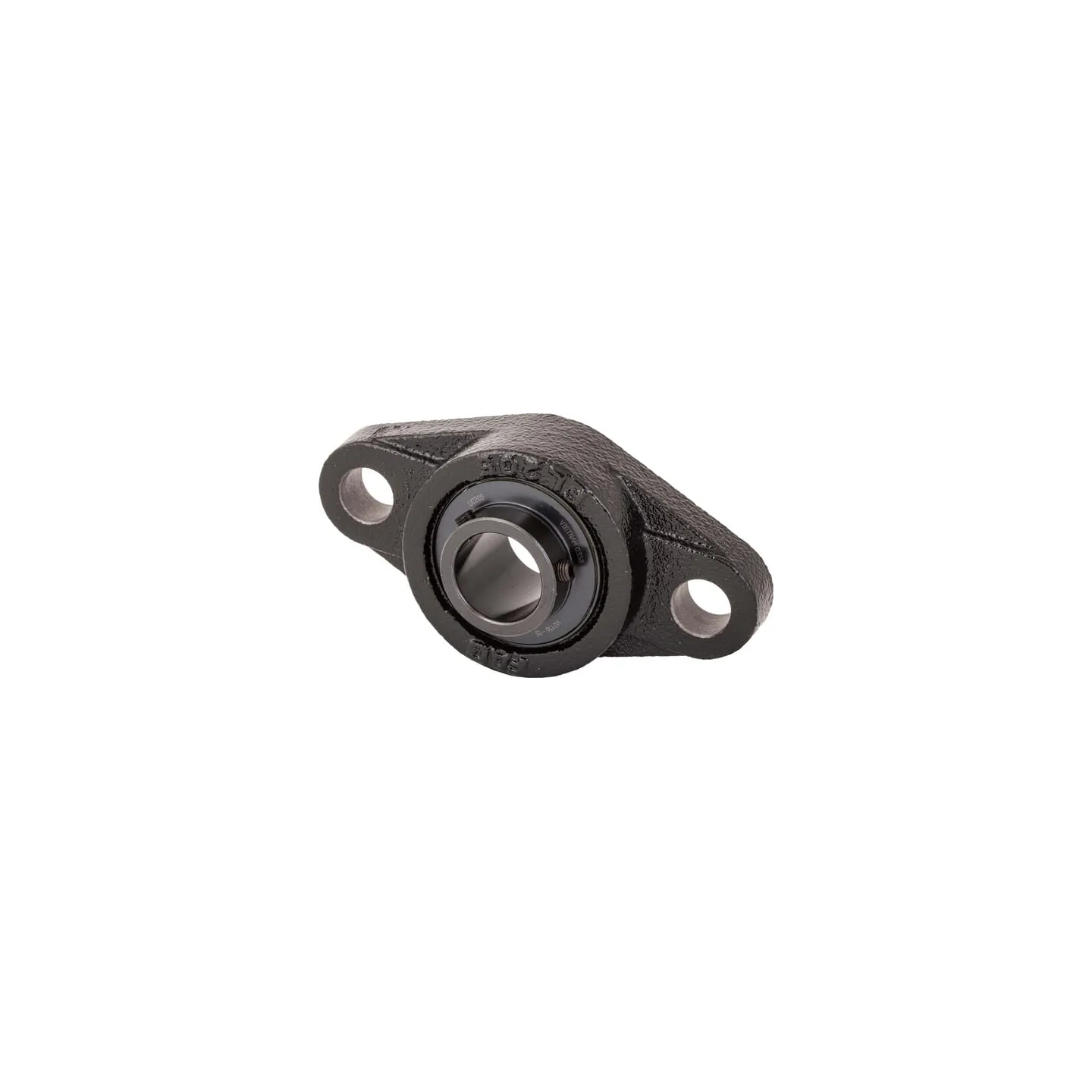

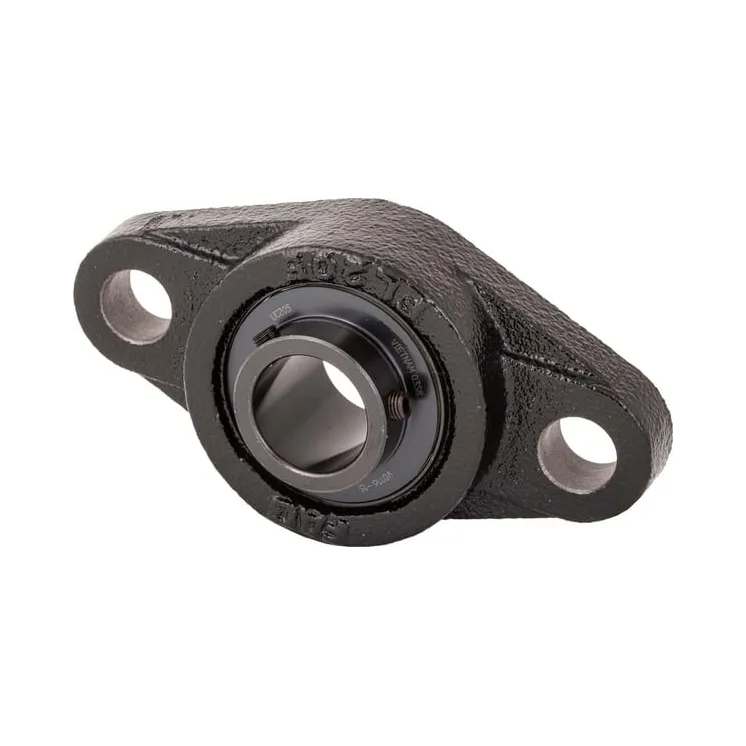

Korpuss UCFL UCFL212

Name: Korpuss UCFL UCFL212
Brand: INA/FAG
SKU: UCFL212
Price: 83.66 EUR
Availability: InStock

Apmaksas iespējas

83,66 €

AR PVN

4-5 Darba dienas

Korpuss UCFL UCFL212 INA/FAG

IR NOLIKTAVĀ

ID: 65399

Apraksts

Part number	UCFL212
EAN	4047643243858
Unit	Each
Long description	These ball bearing units with oval flange are pre-assembled and pre-lubricated. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment.
Pros	Highly suitable for limited installation spaces Assembled, ready for use Pre-lubricated
Product details	Inner bearing has extended inner ring on both sides with 2 adjusting screws Regreasable Self-aligning ball bearing Wide inner ring ball bearing
Includes	Bearing block Bearing Grease nipple
Housing type	Oval flange
dBearing inside diameter	60 mm
aTotal length	250 mm
bHousing width	140 mm
ZTotal height	68.7 mm
lHousing height	48 mm
BiBearing inner ring width	65.1 mm
iBearing balls distance to locking side end	29 mm
nBearing balls distance to mounting surface	25.4 mm
eMounting holes distance	202 mm
SMounting holes diameter	23 mm
QGrease nipple thread diameter	M6
Original number equivalent	UCFL212-J7
