Dzīvoklis UCP UCP207

Name: Dzīvoklis UCP UCP207
Brand: INA/FAG
SKU: UCP207
Price: 22.22 EUR
Availability: InStock

Apmaksas iespējas

22,22 €

AR PVN

4-5 Darba dienas

Dzīvoklis UCP UCP207 INA/FAG

IR NOLIKTAVĀ

ID: 65400

Apraksts

Part number	UCP207
EAN	4047643247641
Unit	Each

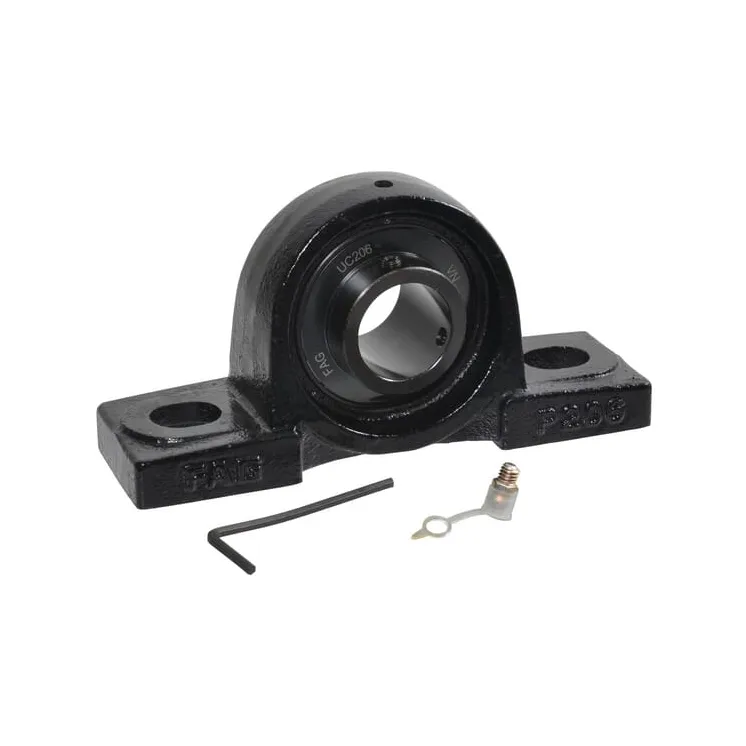

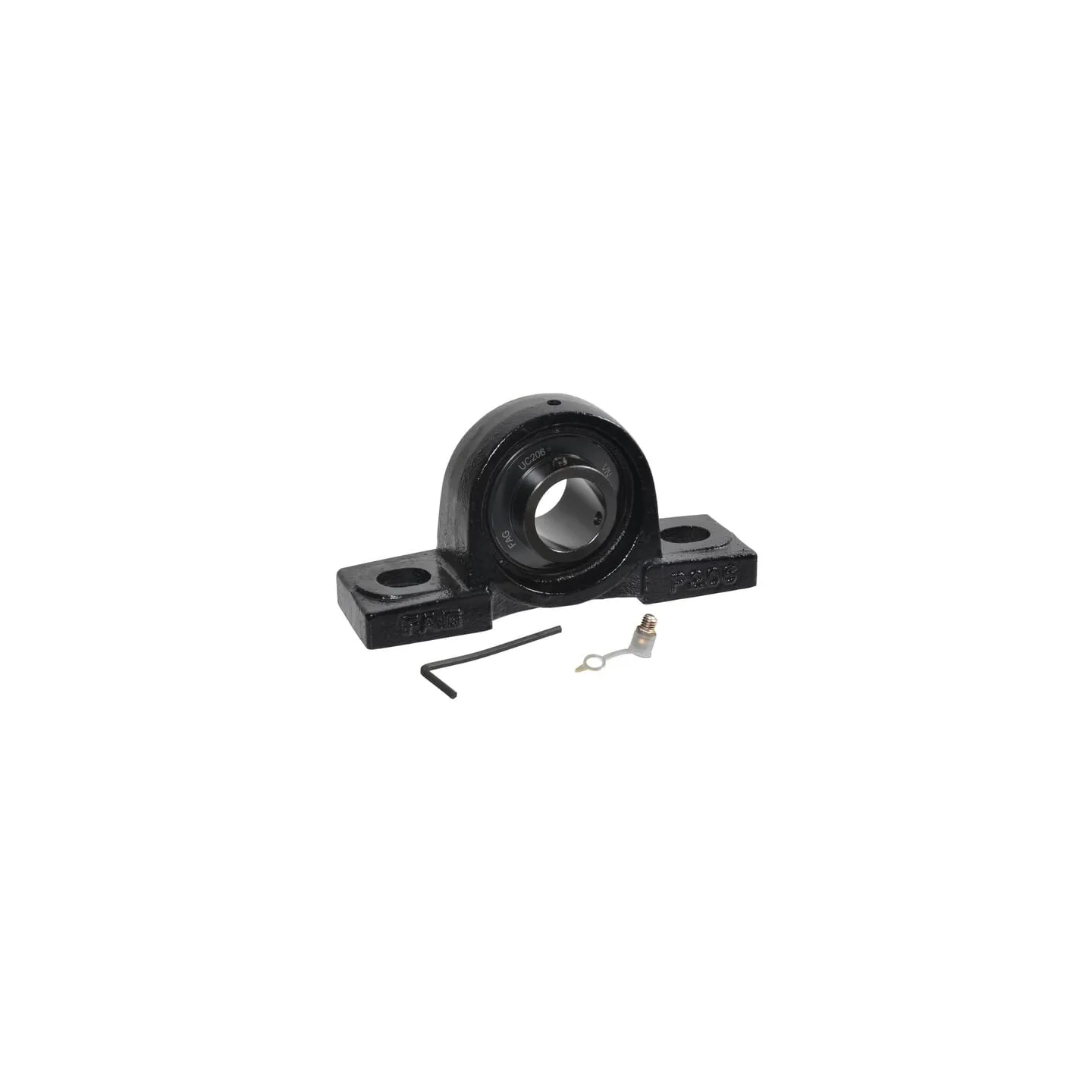

Long description	These standing ball bearing units are pre-assembled and pre-lubricated. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment.
Pros	Highly suitable for limited installation spaces Assembled, ready for use Pre-lubricated
Product details	Inner bearing has extended inner ring on both sides with 2 adjusting screws Regreasable Self-aligning ball bearing Wide inner ring ball bearing
Includes	Bearing block Bearing Grease nipple
Housing type	Pillow block
dBearing inside diameter	35 mm
aTotal length	167 mm
bHousing width	48 mm
WTotal height	93 mm
BiBearing inner ring width	42.9 mm
hShaft vertical distance	47.6 mm
nBearing balls distance to mounting surface	17.5 mm
eMounting holes distance	127 mm
Grease nipple thread diameter	M6
Original number equivalent	UCP207-J7
