Dzīvojamā vienība UCF UCF204

Name: Dzīvojamā vienība UCF UCF204
Brand: INA/FAG
SKU: UCF204
Price: 20.45 EUR
Availability: InStock

Apmaksas iespējas

20,45 €

AR PVN

4-5 Darba dienas

Dzīvojamā vienība UCF UCF204 INA/FAG

IR NOLIKTAVĀ

ID: 65403

Apraksts

Part number	UCF204
EAN	4047643301916
Unit	Each

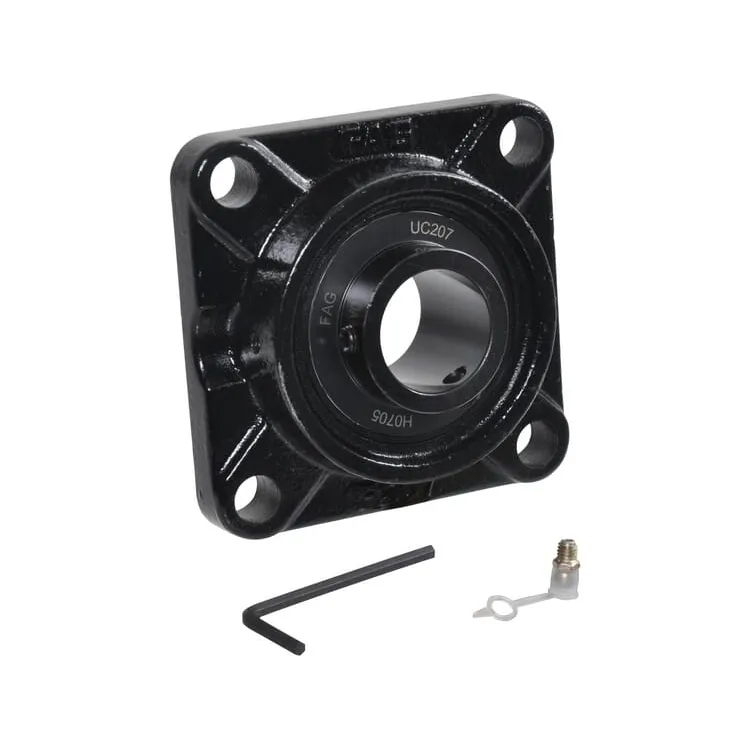

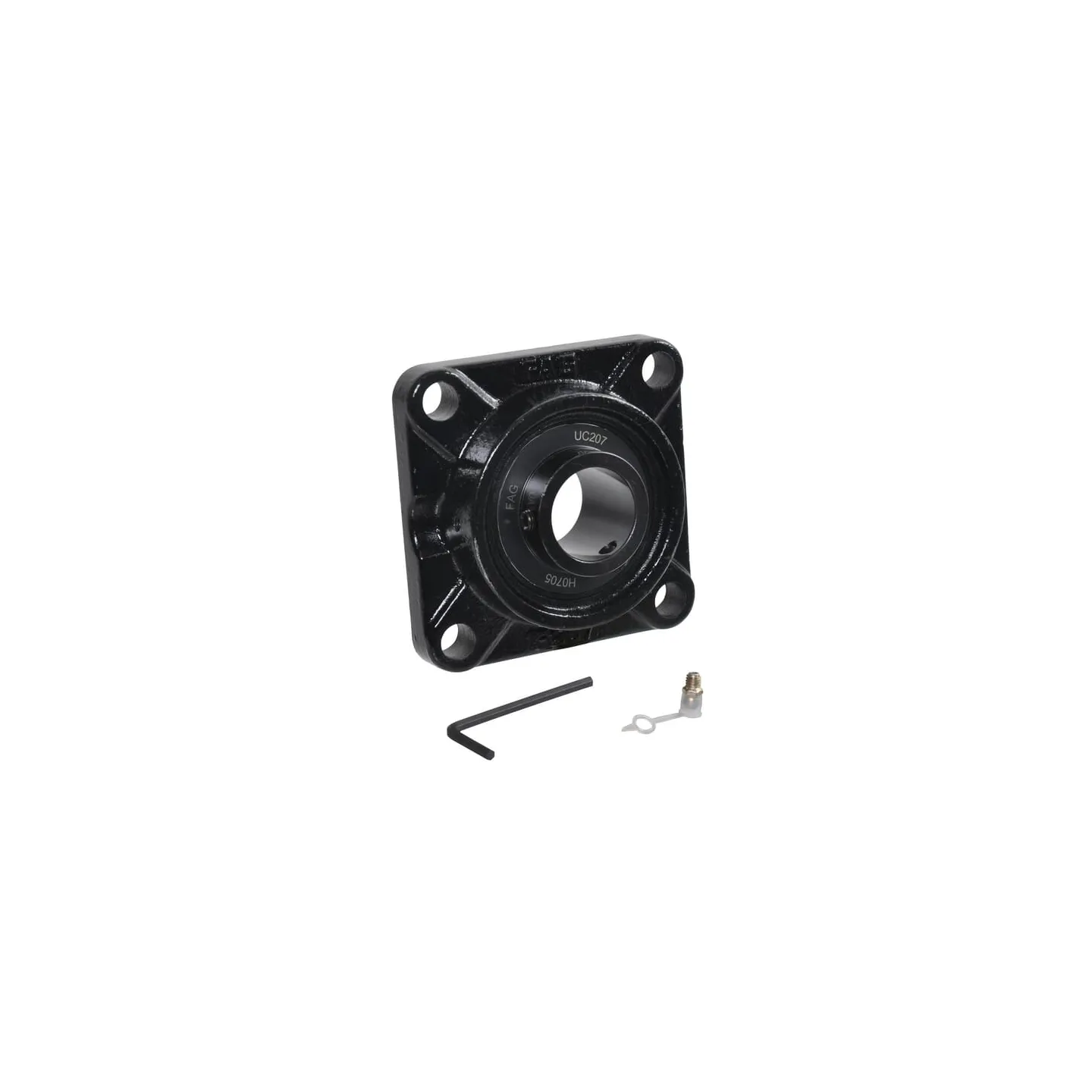

Long description	These square ball bearing units with four bolt holes are pre-assembled and pre-lubricated. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment.
Pros	Highly suitable for limited installation spaces Assembled, ready for use Pre-lubricated
Product details	Inner bearing has extended inner ring on both sides with 2 adjusting screws Regreasable Self-aligning ball bearing Wide inner ring ball bearing
Properties	Inner bearing has extended inner ring with 2 adjusting screws on both sides Can be subsequently lubricated
Includes	Bearing block Bearing Grease nipple
Housing type	Square flange
dBearing inside diameter	20 mm
aTotal length	86 mm
aHousing width	86 mm
Total height	33.3 mm
lHousing height	25.5 mm
BiBearing inner ring width	31 mm
Bearing balls distance to locking side end	15 mm
lBearing balls distance to mounting surface	12.7 mm
eMounting holes distance	64 mm
Mounting holes diameter	12 mm
Grease nipple thread diameter	M6
Basic radial load static	6600 N
Basic radial load dynamic	12800 N
Original number equivalent	UCF204-J7
