Gultņa ieliktnis 1 / 25,4x52x17mm UC20516INA INA/FAG UC20516 UC20516TR

Gultņa ieliktnis 1 / 25,4x52x17mm UC20516INA UC20516 UC20516TR

Name: Gultņa ieliktnis 1 / 25,4x52x17mm UC20516INA UC20516 UC20516TR
Brand: INA/FAG
SKU: UC20516INA
Price: 13.07 EUR
Availability: InStock

Apmaksas iespējas

13,07 €

AR PVN

4-5 Darba dienas

Gultņa ieliktnis 1 / 25,4x52x17mm UC20516INA INA/FAG UC20516 UC20516TR

IR NOLIKTAVĀ

ID: 65405

Apraksts

Part number	UC20516INA
EAN	4012802627725
Unit	Each

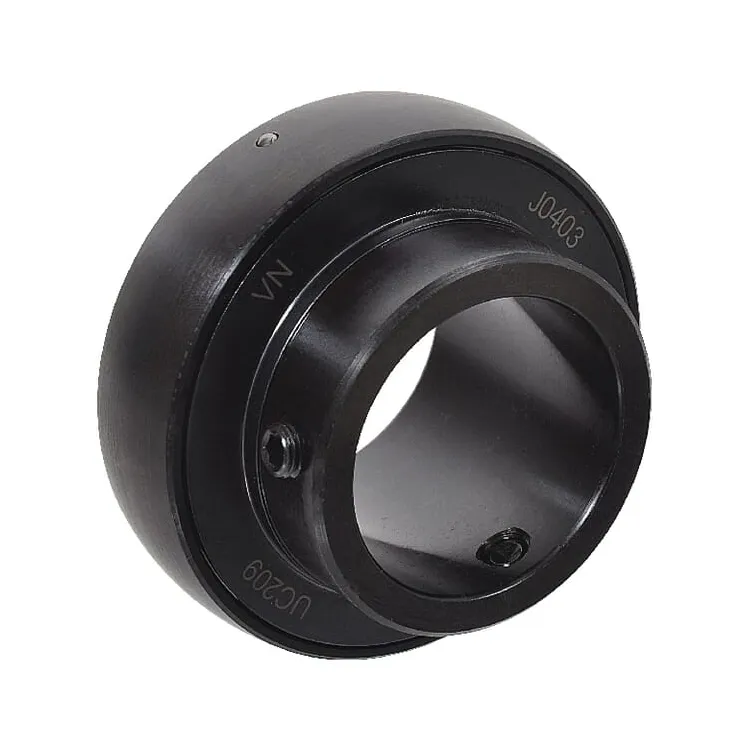

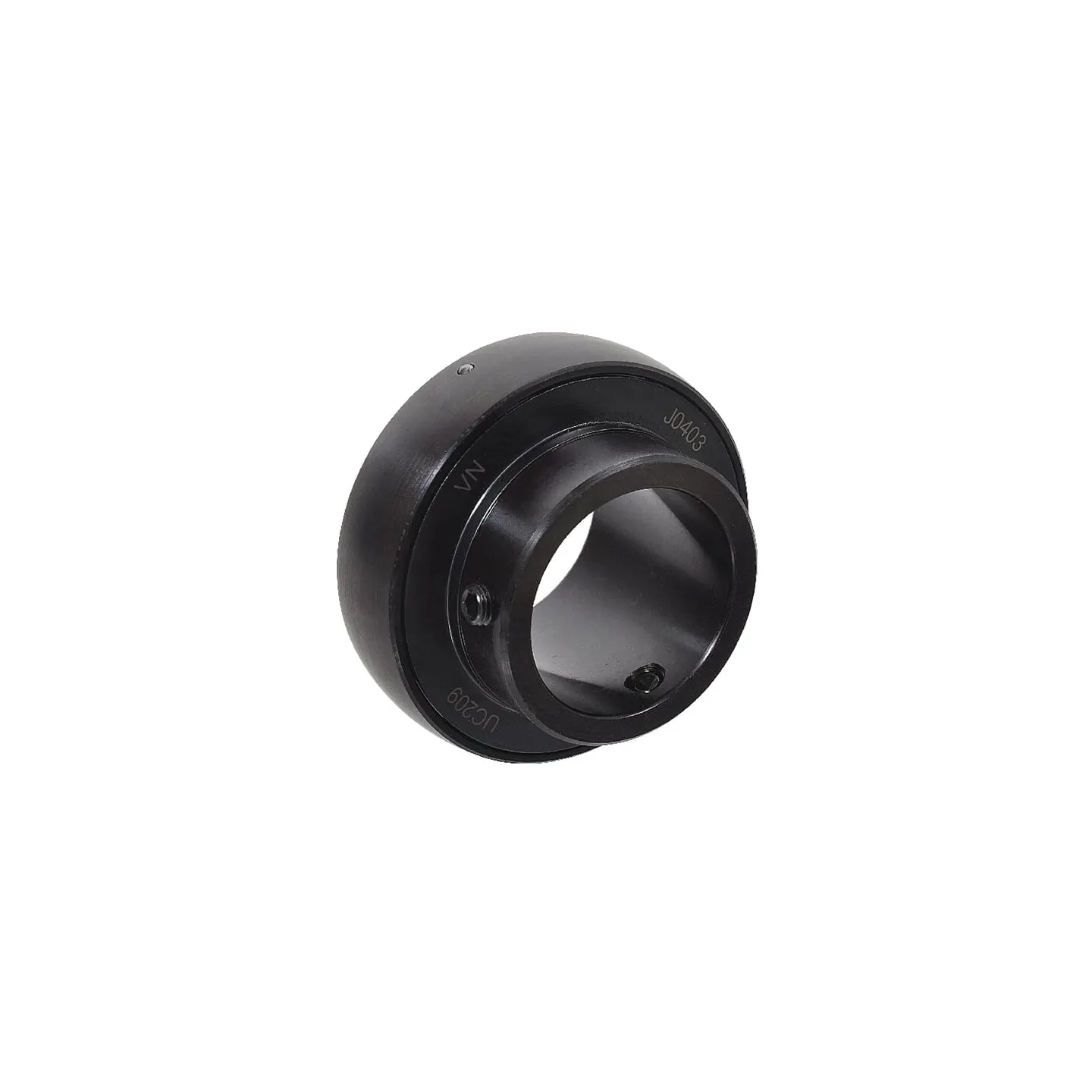

Long description	Ball bearing inserts Koyo, series UC 200 imperial
Application range	Mobile mechanical engineering Stationary mechanical engineering
Properties	Both sides: extended inner ring with 2 adjusting screws Convex outer ring with lubricating holes Sealed on both sides
dInside diameter	25.4 mm
Inside diameter	1 Inch
DOutside diameter	52 mm
COuter ring width	17 mm
BInner ring width	34.1 mm
Locking screw centre to end distance	5 mm
Basic radial load static	7800 N
Basic radial load dynamic	14900 N
Thread diameter	1/8 Inch
Thread type	Inch
Ball centre to grease hole distance	4.2 mm
Ball centre to end distance	14.3 mm
Ball centre to inner ring end distance	19.8 mm
