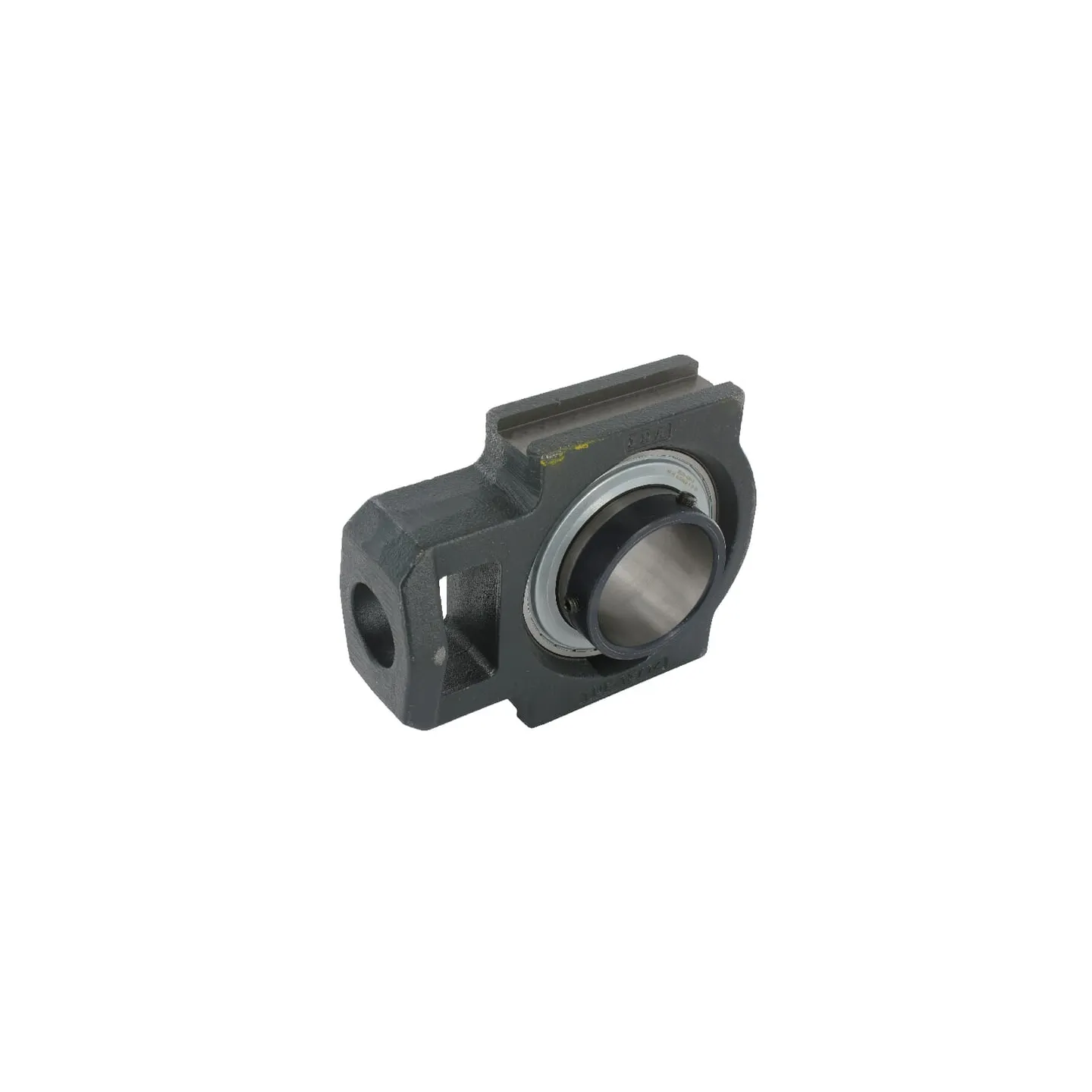

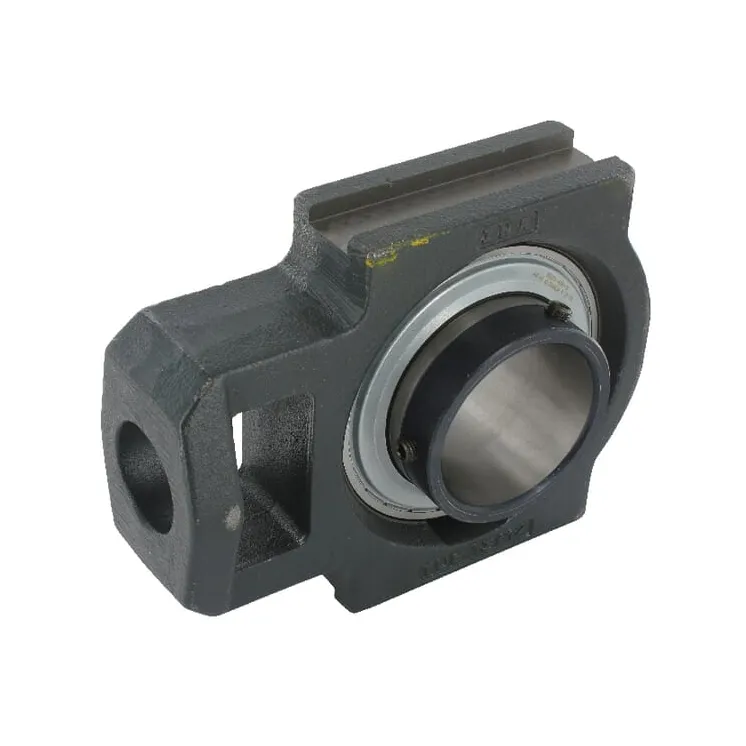

Korpuss UCT UCT210

Name: Korpuss UCT UCT210
Brand: INA/FAG
SKU: UCT210
Price: 57.68 EUR
Availability: InStock

Apmaksas iespējas

57,68 €

AR PVN

4-5 Darba dienas

Korpuss UCT UCT210 INA/FAG

IR NOLIKTAVĀ

ID: 65408

Apraksts

Part number	UCT210
EAN	4054366900388
Unit	Each
Long description	These "Take-Up" ball bearing units with clamping screw fastening are already pre-assembled and lubricated. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment.
Pros	Highly suitable for limited installation spaces Assembled, ready for use Pre-lubricated Easy tensioning of belt drives.
Product details	Inner bearing has extended inner ring on both sides with 2 adjusting screws Regreasable Self-aligning ball bearing Wide inner ring ball bearing
dBearing inside diameter	50 mm
Total length	149 mm
aHousing width	117 mm
eHousing length	102 mm
BiBearing inner ring width	51.6 mm
hShaft vertical distance	90 mm
Mounting holes diameter	29 mm
Grease nipple thread diameter	M6
Guide groove width	16 mm
bGuide groove length	86 mm
Original number equivalent	UCT210-J7
