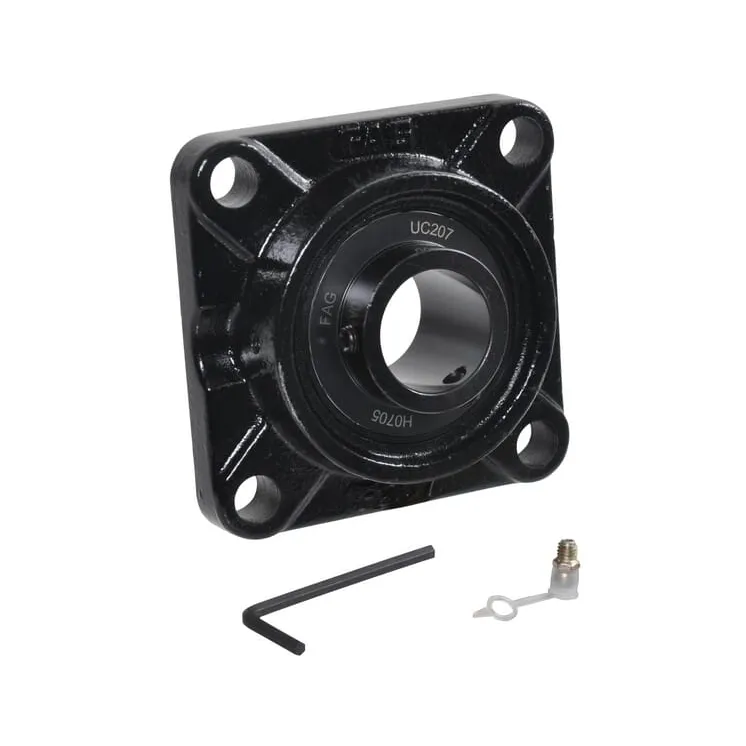

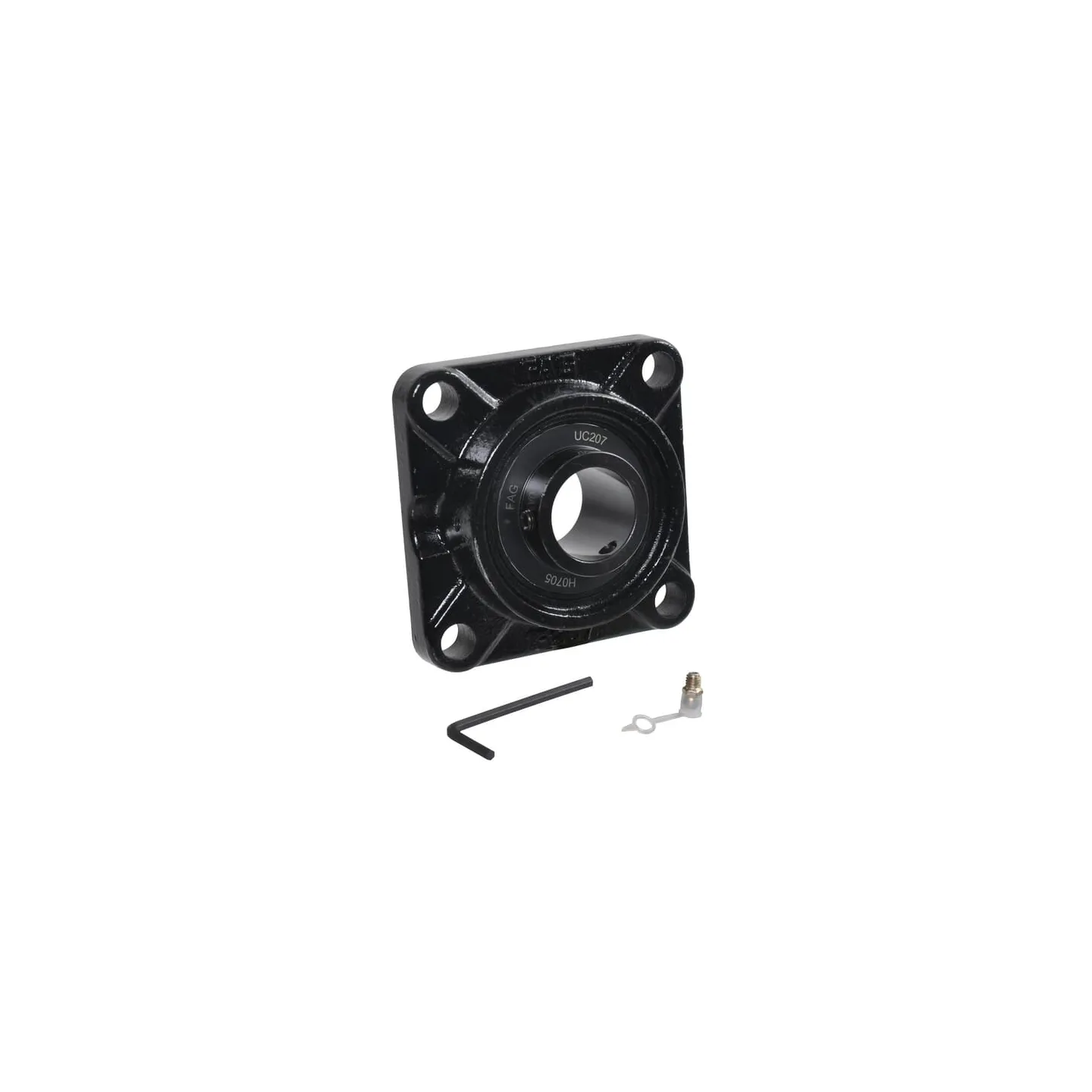

Dzīvoklis UCF202J7

Name: Dzīvoklis UCF202J7
Brand: INA/FAG
SKU: UCF202J7
Price: 21.51 EUR
Availability: InStock

Apmaksas iespējas

21,51 €

AR PVN

4-5 Darba dienas

Dzīvoklis UCF202J7 INA/FAG

IR NOLIKTAVĀ

ID: 65411

Apraksts

Part number	UCF202J7
EAN	4047643336932
Unit	Each
Long description	These square ball bearing units with four bolt holes are pre-assembled and pre-lubricated. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment.
Pros	Highly suitable for limited installation spaces Assembled, ready for use Pre-lubricated
Product details	Inner bearing has extended inner ring on both sides with 2 adjusting screws Regreasable Self-aligning ball bearing Wide inner ring ball bearing
Properties	Inner bearing has extended inner ring with 2 adjusting screws on both sides Can be subsequently lubricated
Includes	Bearing block Bearing Grease nipple
Housing type	Square flange
dBearing inside diameter	15 mm
aTotal length	86 mm
Total height	33.3 mm
Total width	31 mm
Grease nipple thread diameter	M6
Weight	0.62 kg
Basic radial load static	6600 N
Basic radial load dynamic	12800 N
Original number equivalent	UCF202-J7
