Dzīvoklis UCT UCT209

Name: Dzīvoklis UCT UCT209
Brand: INA/FAG
SKU: UCT209
Price: 51.45 EUR
Availability: InStock

Apmaksas iespējas

51,45 €

AR PVN

4-5 Darba dienas

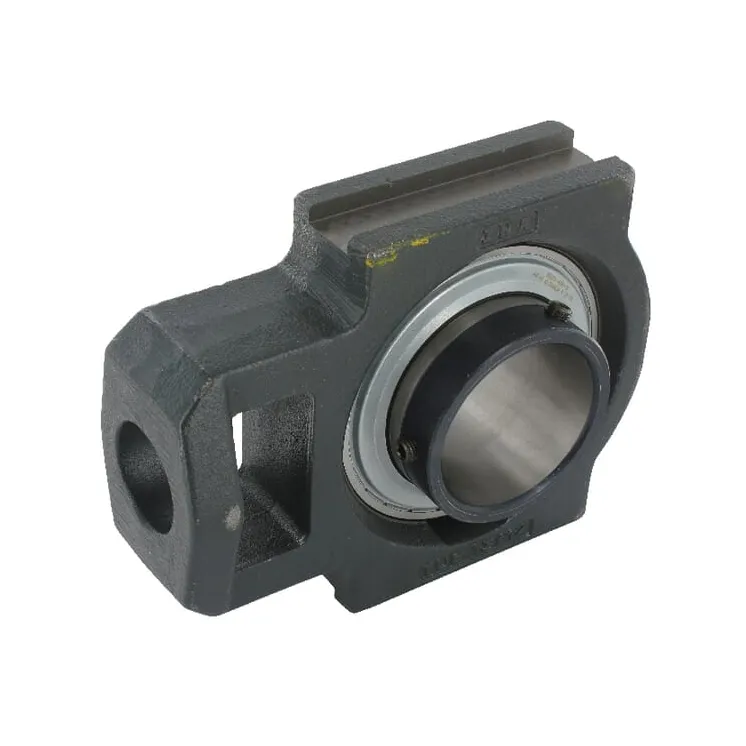

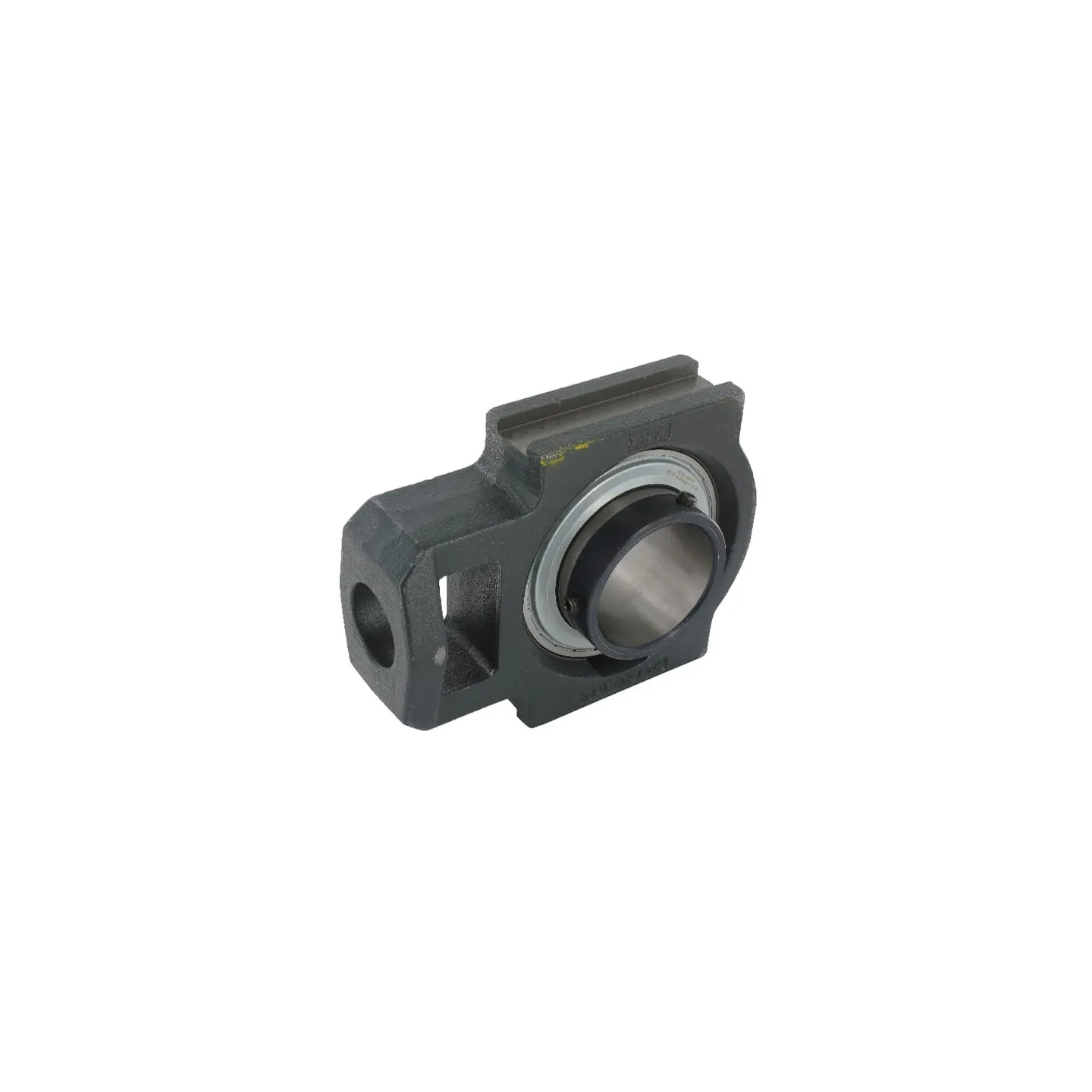

Dzīvoklis UCT UCT209 INA/FAG

IR NOLIKTAVĀ

ID: 65416

Apraksts

Part number	UCT209
EAN	4054366900128
Unit	Each
Long description	These "Take-Up" ball bearing units with clamping screw fastening are already pre-assembled and lubricated. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment.
Pros	Highly suitable for limited installation spaces Assembled, ready for use Pre-lubricated Easy tensioning of belt drives.
Product details	Inner bearing has extended inner ring on both sides with 2 adjusting screws Regreasable Self-aligning ball bearing Wide inner ring ball bearing
Housing type	Take-up
dBearing inside diameter	45 mm
Total length	144 mm
aHousing width	117 mm
eHousing length	102 mm
BiBearing inner ring width	49.2 mm
hShaft vertical distance	87 mm
Grease nipple thread diameter	M6
Guide groove width	16 mm
bGuide groove length	83 mm
Original number equivalent	UCT209-J7
