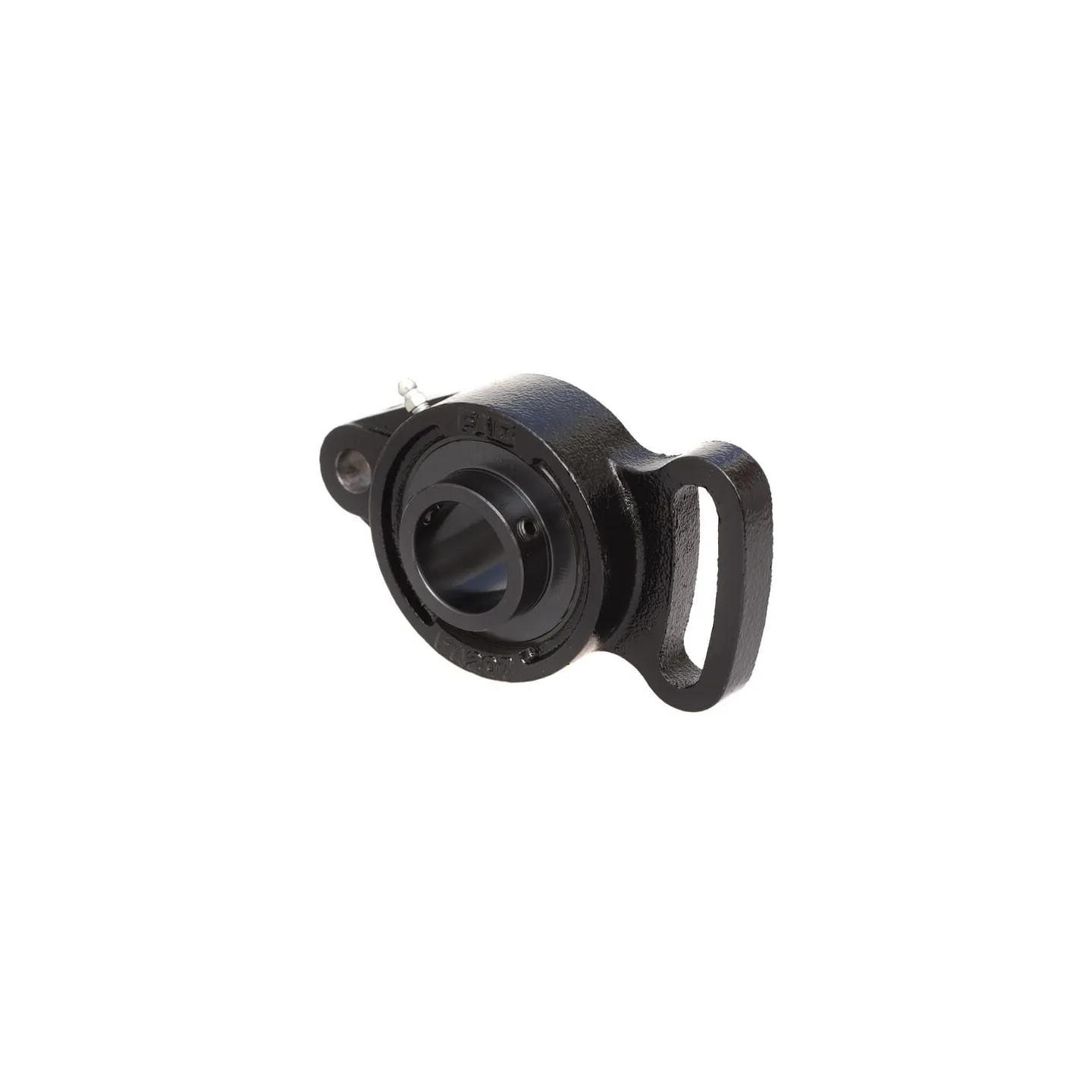

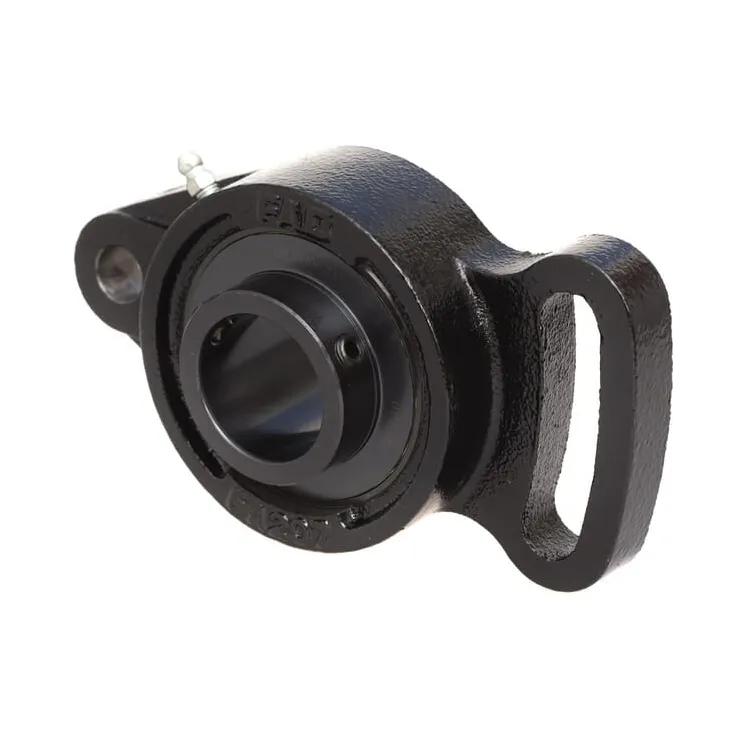

Dzīvojamā vienība UCFA UCFA207

Name: Dzīvojamā vienība UCFA UCFA207
Brand: INA/FAG
SKU: UCFA207
Price: 61.78 EUR
Availability: InStock

Apmaksas iespējas

61,78 €

AR PVN

4-5 Darba dienas

Dzīvojamā vienība UCFA UCFA207 INA/FAG

IR NOLIKTAVĀ

ID: 65417

Apraksts

Part number	UCFA207
EAN	4054366899446
Unit	Each
Properties	Inner bearing has extended inner ring with 2 adjusting screws on both sides Can be subsequently lubricated
Housing type	Two adjustable holes
dBearing inside diameter	35 mm
aTotal length	161 mm
bHousing width	90 mm
Total height	44.4 mm
lHousing height	34 mm
BiBearing inner ring width	42.9 mm
Shaft vertical distance	66 mm
Bearing balls distance to locking side end	19 mm
nBearing balls distance to mounting surface	17.5 mm
Mounting holes distance	130 mm
S1Mounting holes diameter	14 mm
