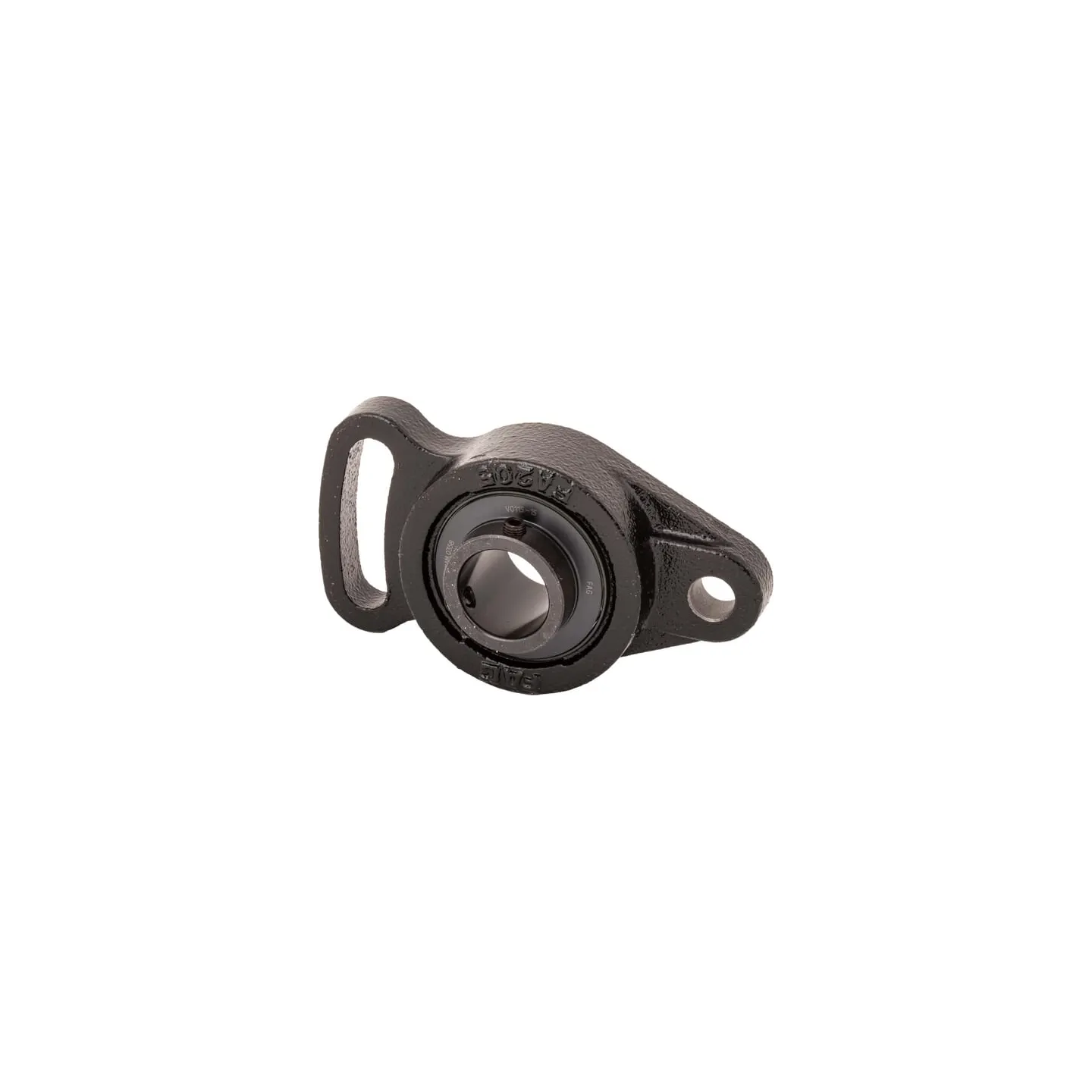

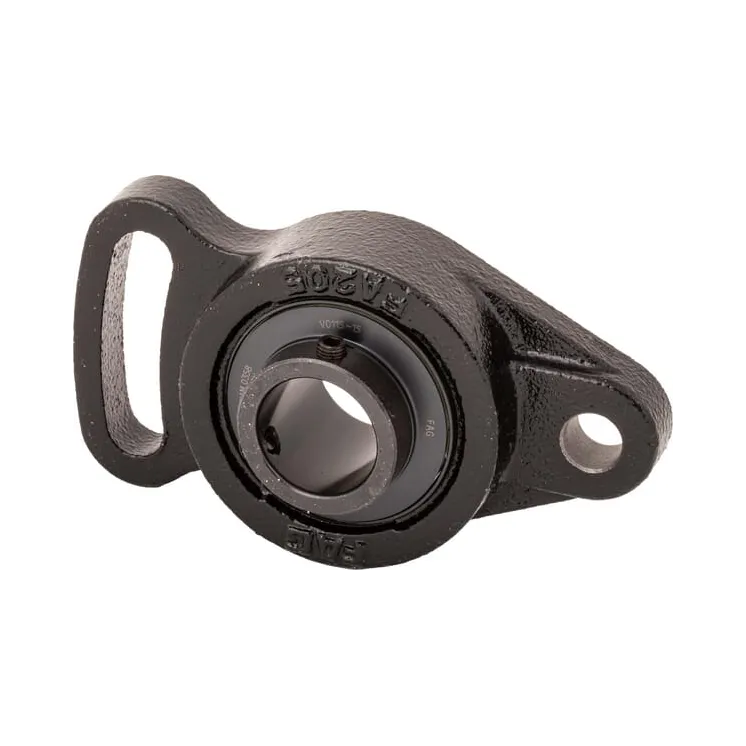

Korpuss UCFA UCFA205

Name: Korpuss UCFA UCFA205
Brand: INA/FAG
SKU: UCFA205
Price: 43.27 EUR
Availability: InStock

Apmaksas iespējas

43,27 €

AR PVN

4-5 Darba dienas

Korpuss UCFA UCFA205 INA/FAG

IR NOLIKTAVĀ

ID: 65418

Apraksts

Part number	UCFA205
EAN	4054366898883
Unit	Each
Properties	Inner bearing has extended inner ring with 2 adjusting screws on both sides Can be subsequently lubricated
Housing type	Two adjustable holes
dBearing inside diameter	25 mm
aTotal length	124 mm
bHousing width	70 mm
Total height	35.7 mm
lHousing height	27 mm
BiBearing inner ring width	34 mm
Shaft vertical distance	49 mm
Bearing balls distance to locking side end	16 mm
nBearing balls distance to mounting surface	14.3 mm
Mounting holes distance	98 mm
S1Mounting holes diameter	11 mm
