Gultņa korpuss UCT UCT211

Name: Gultņa korpuss UCT UCT211
Brand: INA/FAG
SKU: UCT211
Price: 79.45 EUR
Availability: BackOrder

Apmaksas iespējas

79,45 €

AR PVN

Pēc pieprasījuma

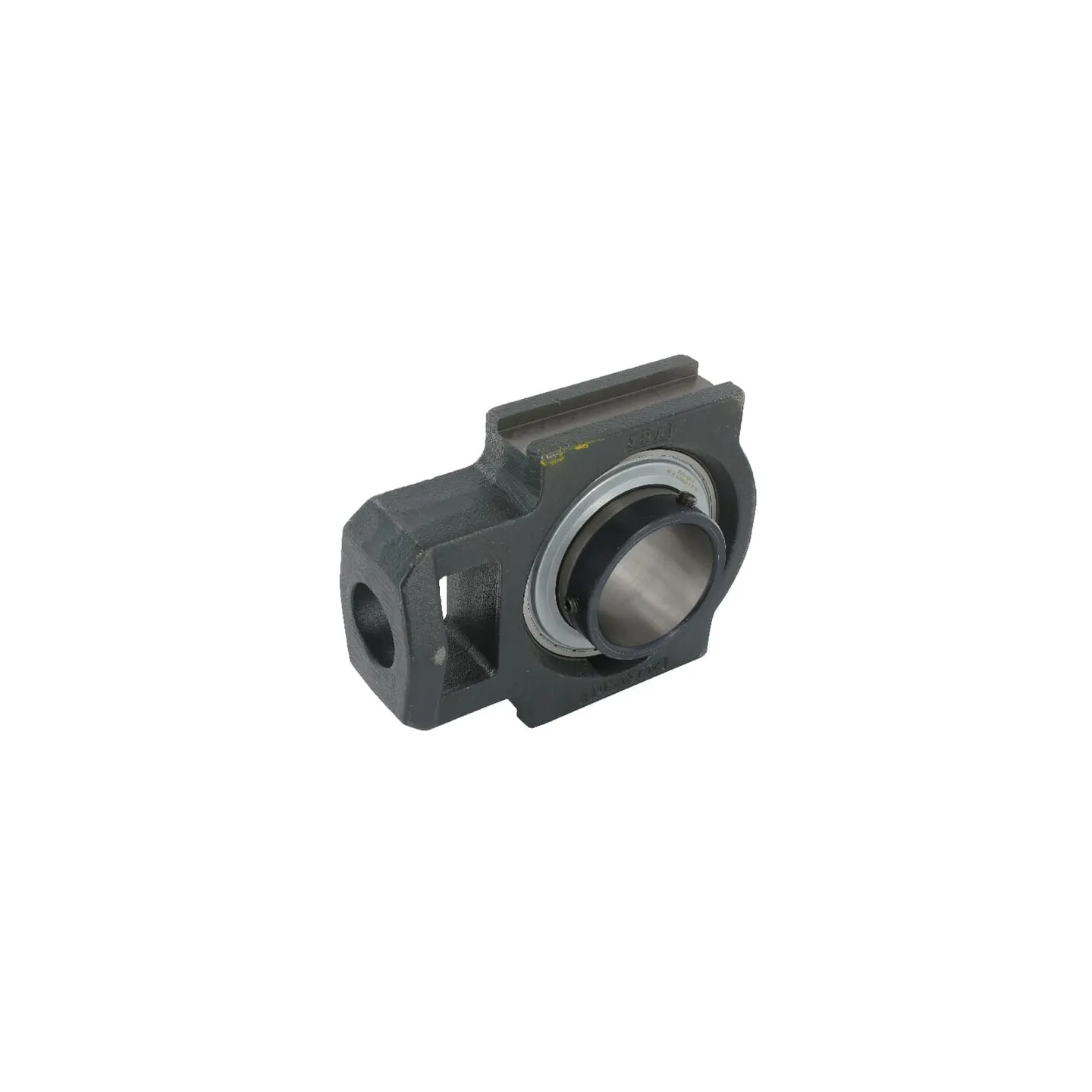

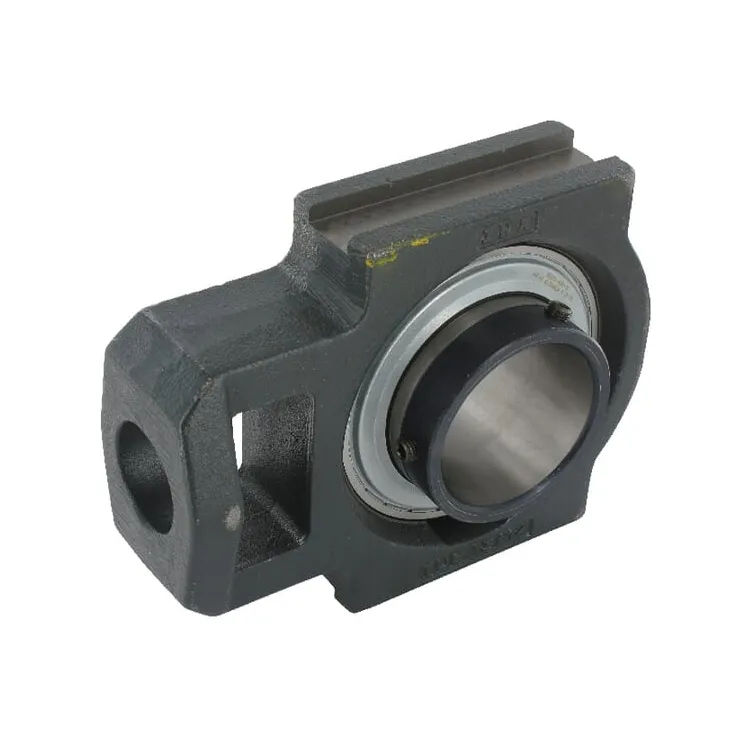

Gultņa korpuss UCT UCT211 INA/FAG

Uz pasūtījumu

ID: 65420

Apraksts

Part number	UCT211
EAN	4054366900548
Unit	Each
Long description	These "Take-Up" ball bearing units with clamping screw fastening are already pre-assembled and lubricated. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment.
Pros	Highly suitable for limited installation spaces Assembled, ready for use Pre-lubricated Easy tensioning of belt drives.
Product details	Inner bearing has extended inner ring on both sides with 2 adjusting screws Regreasable Self-aligning ball bearing Wide inner ring ball bearing
dBearing inside diameter	55 mm
Total length	171 mm
aHousing width	146 mm
eHousing length	130 mm
BiBearing inner ring width	55.6 mm
hShaft vertical distance	106 mm
Bearing balls distance to mounting surface	22.2 mm
Mounting holes diameter	35 mm
Grease nipple thread diameter	M6
Guide groove width	22 mm
bGuide groove length	95 mm
Original number equivalent	UCT211-J7
