Korpuss UCP UCP218

Name: Korpuss UCP UCP218
Brand: INA/FAG
SKU: UCP218
Price: 295.09 EUR
Availability: BackOrder

Apmaksas iespējas

295,09 €

AR PVN

Pēc pieprasījuma

Korpuss UCP UCP218 INA/FAG

Uz pasūtījumu

ID: 65434

Apraksts

Part number	UCP218
EAN	4054366901620
Unit	Each

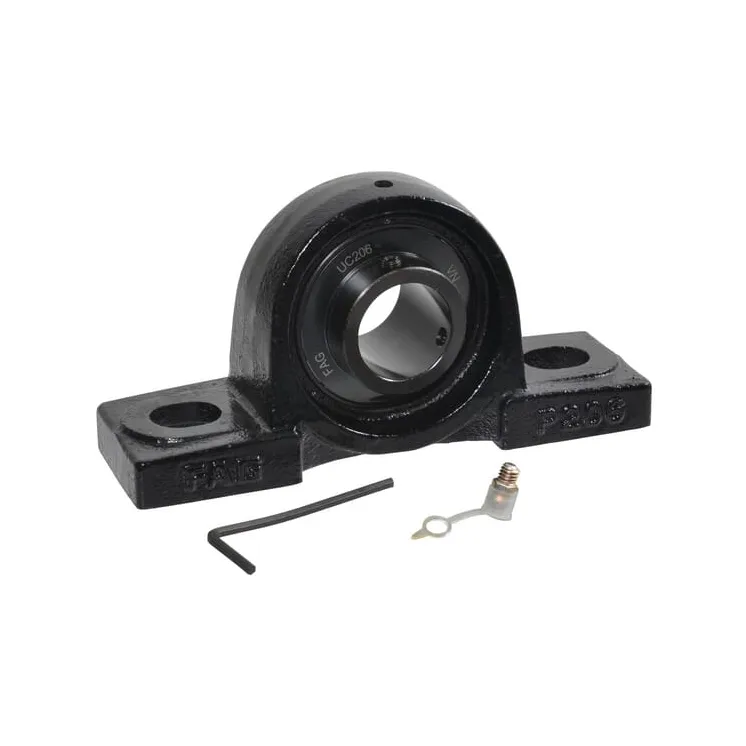

Long description	These standing ball bearing units are pre-assembled and pre-lubricated. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment.
Pros	Highly suitable for limited installation spaces Assembled, ready for use Pre-lubricated
Product details	Inner bearing has extended inner ring on both sides with 2 adjusting screws Regreasable Self-aligning ball bearing Wide inner ring ball bearing
Includes	Bearing block Bearing Grease nipple
Housing type	Pillow block
dBearing inside diameter	90 mm
aTotal length	327 mm
bHousing width	88 mm
WTotal height	200 mm
BiBearing inner ring width	96 mm
hShaft vertical distance	101.6 mm
nBearing balls distance to mounting surface	39.7 mm
eMounting holes distance	262 mm
Grease nipple thread diameter	M6
