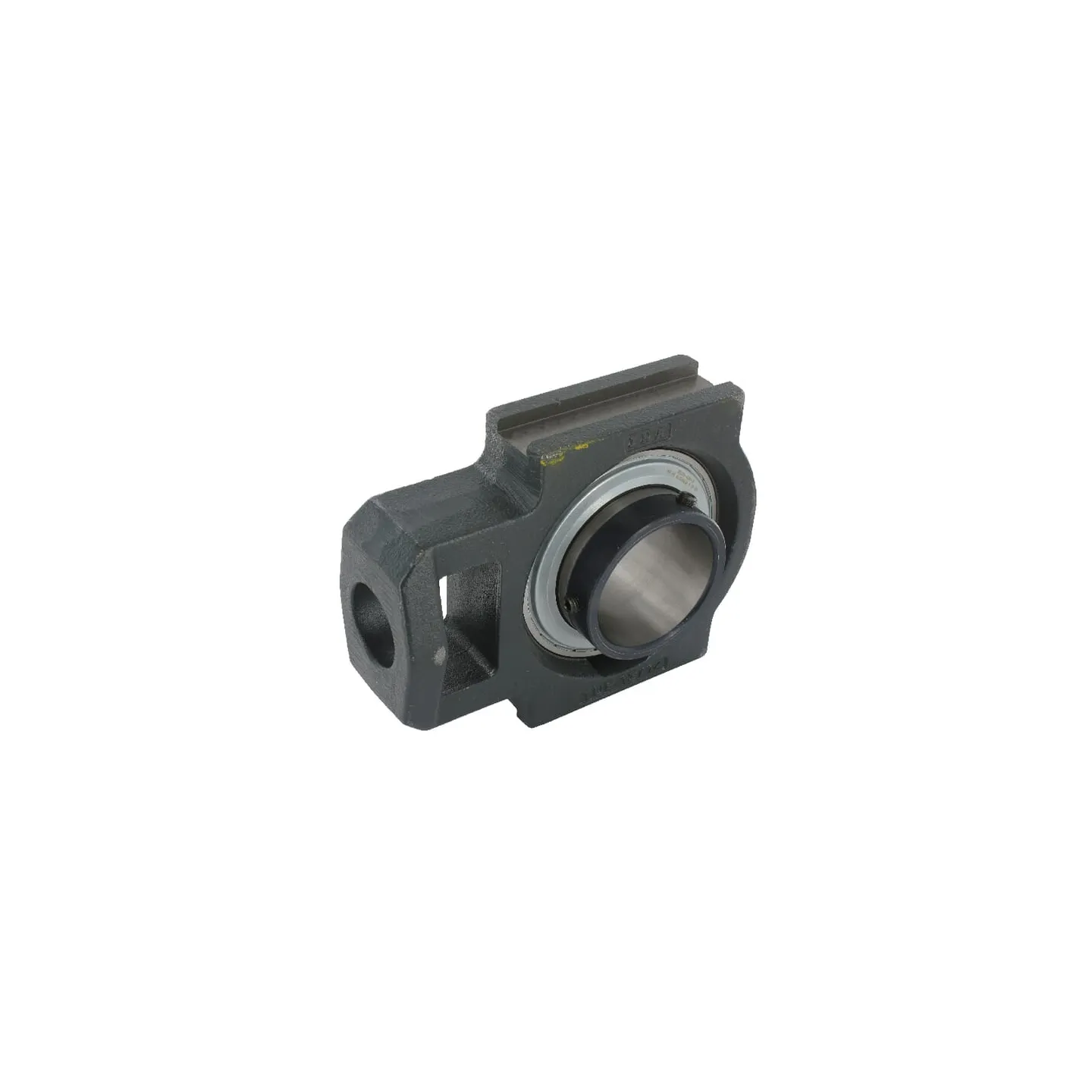

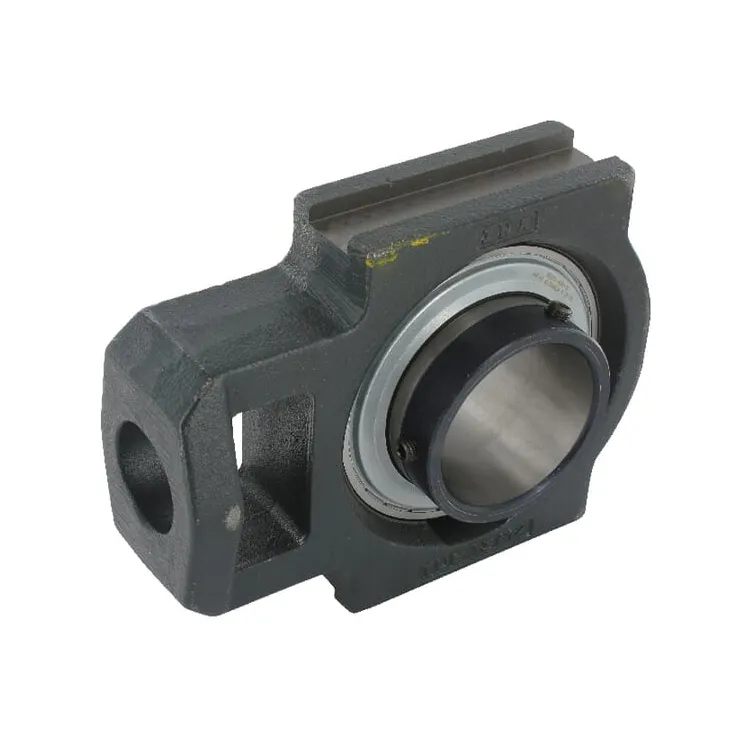

Korpuss UCT UCT206

Name: Korpuss UCT UCT206
Brand: INA/FAG
SKU: UCT206
Price: 34.3 EUR
Availability: InStock

Apmaksas iespējas

34,30 €

AR PVN

4-5 Darba dienas

Korpuss UCT UCT206 INA/FAG

IR NOLIKTAVĀ

ID: 65444

Apraksts

Part number	UCT206
EAN	4054366899392
Unit	Each
Long description	These "Take-Up" ball bearing units with clamping screw fastening are already pre-assembled and lubricated. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment.
Pros	Highly suitable for limited installation spaces Assembled, ready for use Pre-lubricated Easy tensioning of belt drives.
Product details	Inner bearing has extended inner ring on both sides with 2 adjusting screws Regreasable Self-aligning ball bearing Wide inner ring ball bearing
dBearing inside diameter	30 mm
Total length	113 mm
aHousing width	102 mm
eHousing length	89 mm
BiBearing inner ring width	38.1 mm
hShaft vertical distance	70 mm
Bearing balls distance to mounting surface	15.9 mm
Mounting holes diameter	22 mm
Grease nipple thread diameter	M6
Guide groove width	12 mm
bGuide groove length	57 mm
Original number equivalent	UCT206-J7
