Korpuss UCT UCT205

Name: Korpuss UCT UCT205
Brand: INA/FAG
SKU: UCT205
Price: 27.16 EUR
Availability: InStock

Apmaksas iespējas

27,16 €

AR PVN

4-5 Darba dienas

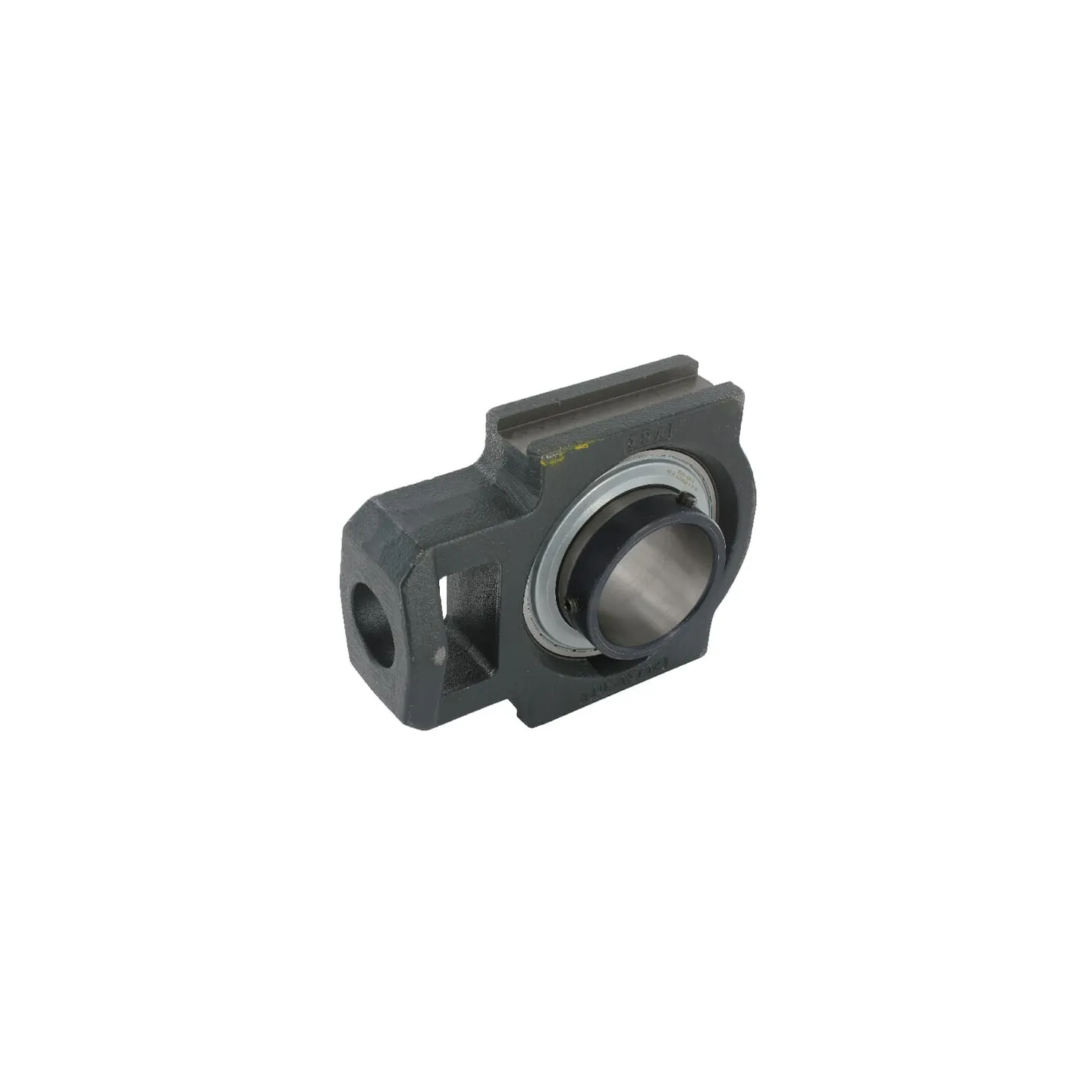

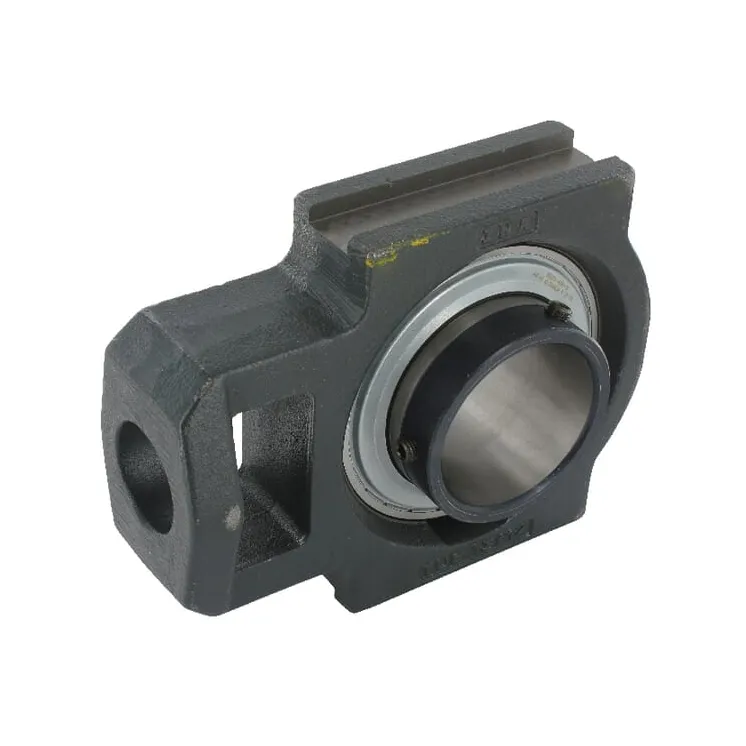

Korpuss UCT UCT205 INA/FAG

IR NOLIKTAVĀ

ID: 65446

Apraksts

Part number	UCT205
EAN	4054366899088
Unit	Each
Long description	These "Take-Up" ball bearing units with clamping screw fastening are already pre-assembled and lubricated. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment.
Pros	Highly suitable for limited installation spaces Assembled, ready for use Pre-lubricated Easy tensioning of belt drives.
Product details	Inner bearing has extended inner ring on both sides with 2 adjusting screws Regreasable Self-aligning ball bearing Wide inner ring ball bearing
dBearing inside diameter	25 mm
Total length	97 mm
aHousing width	89 mm
eHousing length	76 mm
BiBearing inner ring width	34 mm
hShaft vertical distance	62 mm
Bearing balls distance to mounting surface	14.3 mm
Mounting holes diameter	19 mm
Grease nipple thread diameter	M6
Guide groove width	12 mm
bGuide groove length	51 mm
Original number equivalent	UCT205-J7
