Dzīvojamā vienība UCPA UCPA204 UCPA204NB

Name: Dzīvojamā vienība UCPA UCPA204 UCPA204NB
Brand: INA/FAG
SKU: UCPA204
Price: 22.2 EUR
Availability: InStock

Apmaksas iespējas

22,20 €

AR PVN

4-5 Darba dienas

Dzīvojamā vienība UCPA UCPA204 INA/FAG UCPA204NB

IR NOLIKTAVĀ

ID: 65449

Apraksts

Part number	UCPA204
EAN	4047643337519
Unit	Each

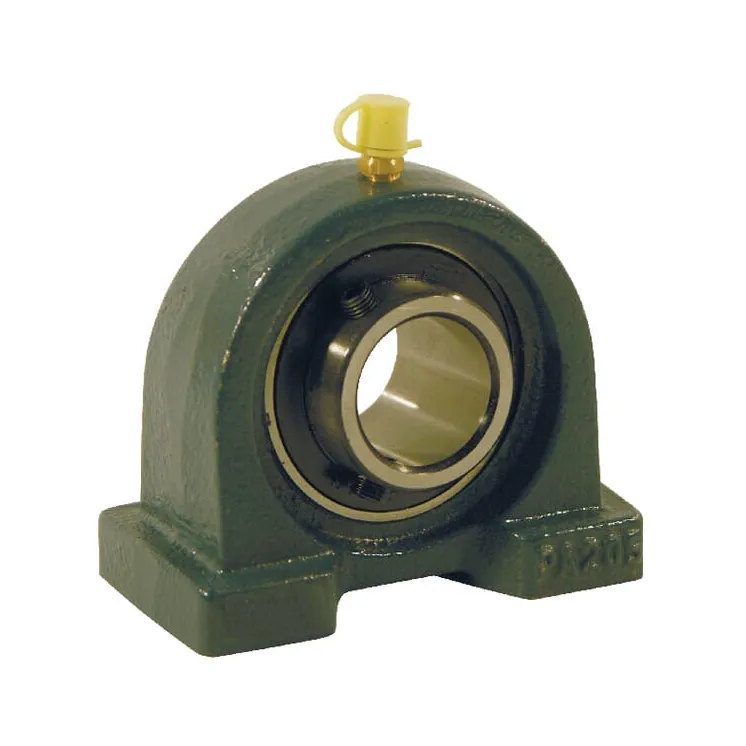

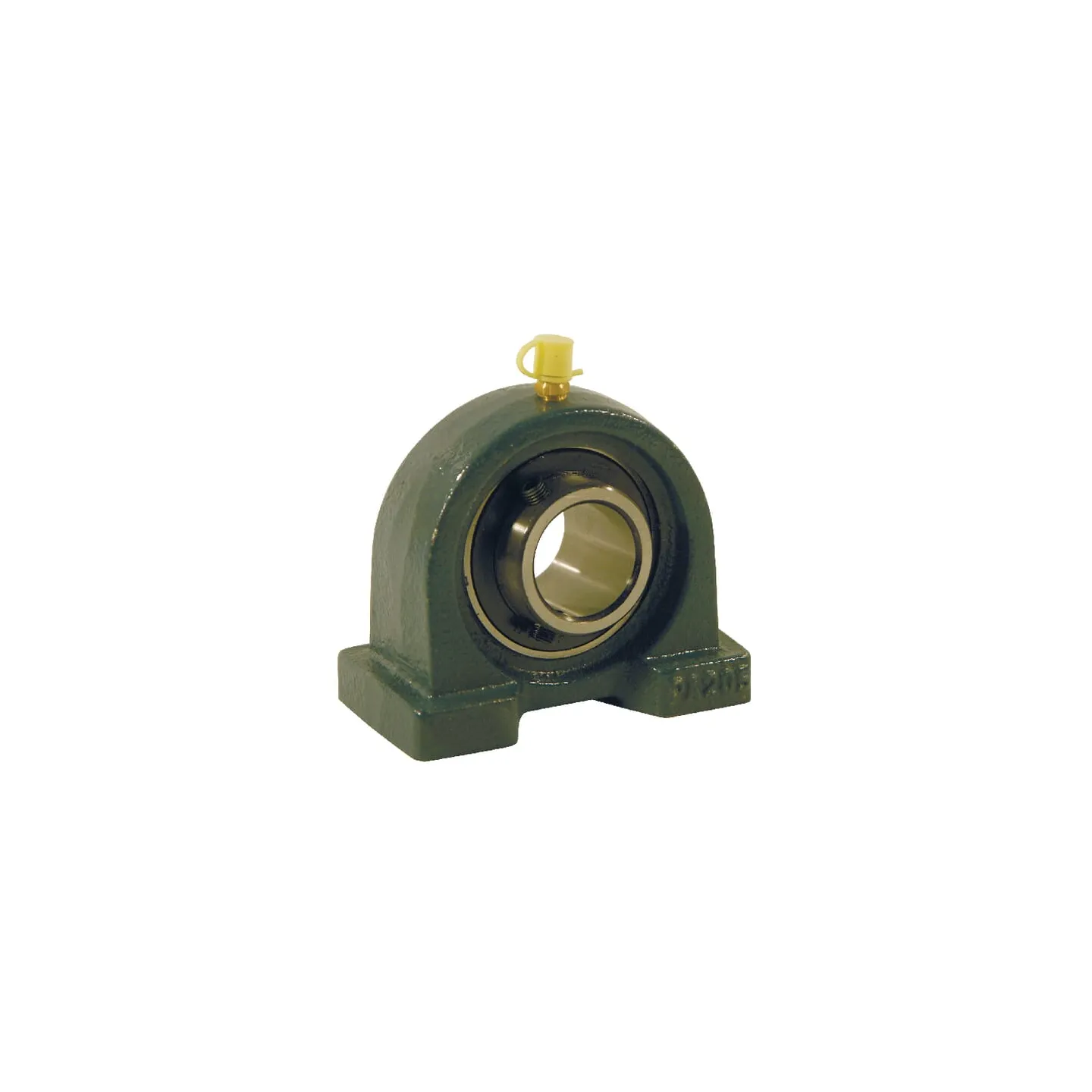

Long description	Ball bearing units, series UCPA 200
Properties	Inner bearing has extended inner ring with 2 adjusting screws on both sides Can be subsequently lubricated
Housing type	Pillow block
dBearing inside diameter	20 mm
aTotal length	76 mm
bHousing width	38 mm
wTotal height	62 mm
BiBearing inner ring width	31 mm
hShaft vertical distance	30.2 mm
nBearing balls distance to mounting surface	12.7 mm
Mounting holes distance	52 mm
Mounting thread diameter	M10
gMounting thread length	12.5 mm
