| Part number | UCFL203J7 | |
|---|---|---|
| EAN | 4047643337359 | |
| Unit | Each | |

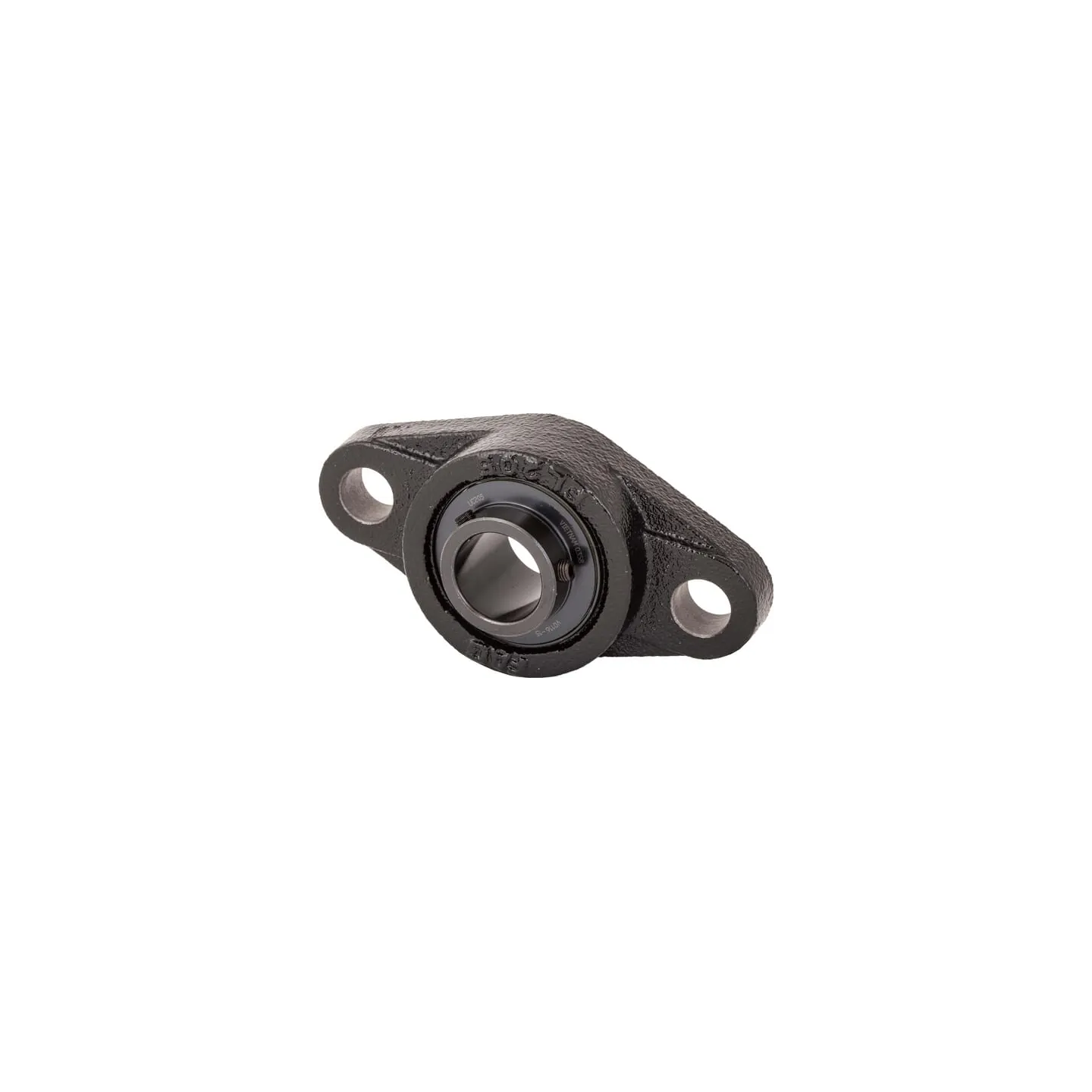

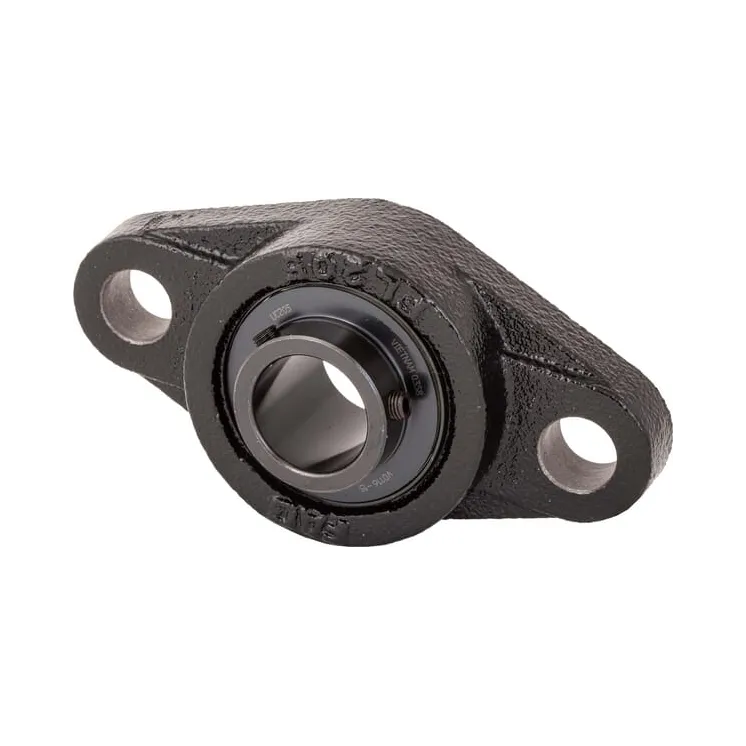

| Long description | These ball bearing units with oval flange are pre-assembled and pre-lubricated. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment. | |
| Pros |
| |
| Product details |
| |
| Includes |
| |
| Housing type | Oval flange | |
| dBearing inside diameter | 17 mm | |
| aTotal length | 60 mm | |
| bHousing width | 113 mm | |
| ZTotal height | 33.3 mm | |
| Total width | 31 mm | |
| lHousing height | 25.5 mm | |
| BiBearing inner ring width | 31 mm | |
| iBearing balls distance to locking side end | 15 mm | |
| eMounting holes distance | 90 mm | |
| SMounting holes diameter | 12 mm | |
| QGrease nipple thread diameter | M6 | |
| Weight | 0.45 kg | |
| Basic radial load static | 6600 N | |
| Basic radial load dynamic | 12800 N | |
| Original number equivalent | UCFL203-J7 |
