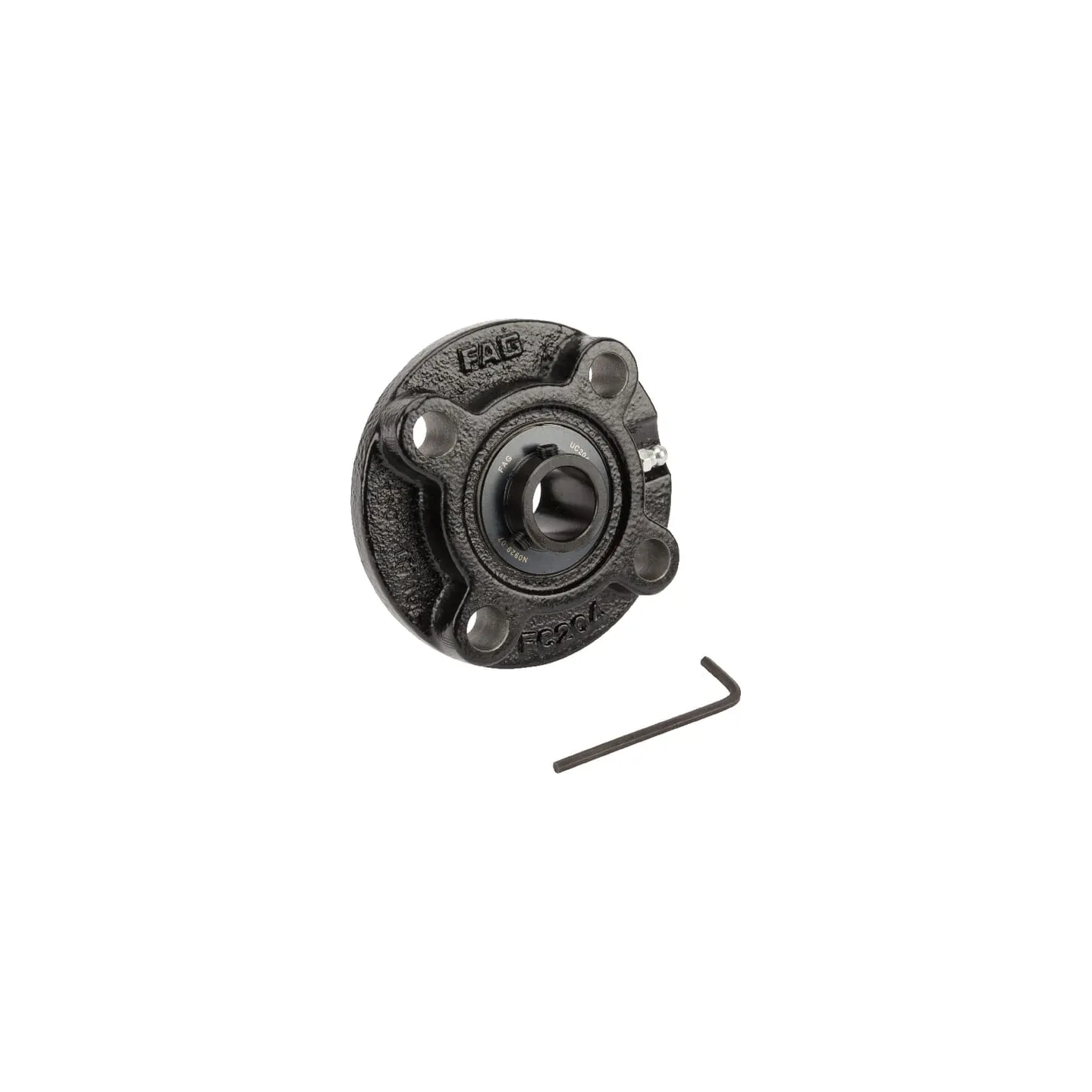

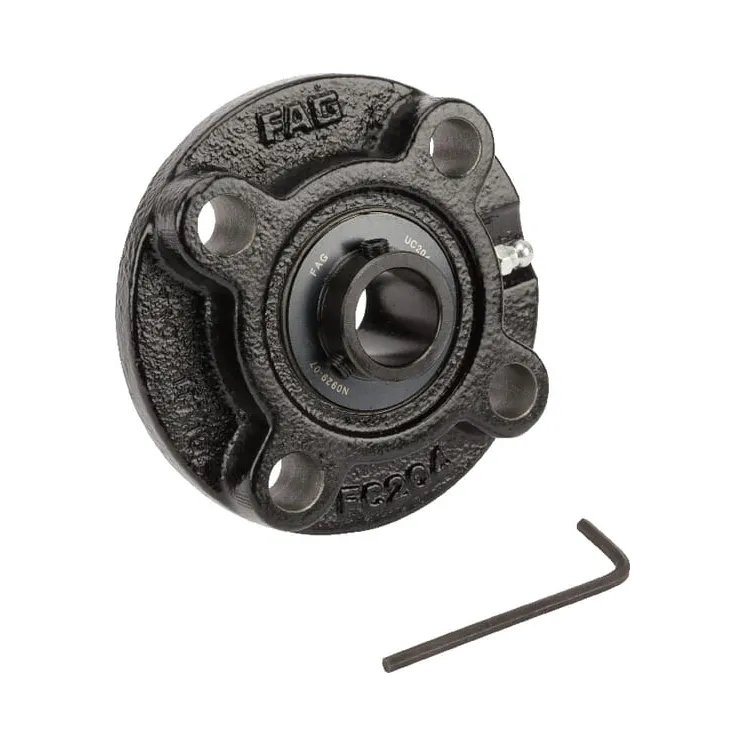

Korpuss UCFC204J7

Name: Korpuss UCFC204J7
Brand: INA/FAG
SKU: UCFC204J7
Price: 26.85 EUR
Availability: InStock

Apmaksas iespējas

26,85 €

AR PVN

4-5 Darba dienas

Korpuss UCFC204J7 INA/FAG

IR NOLIKTAVĀ

ID: 65464

Apraksts

Part number	UCFC204J7
EAN	4047643337496
Unit	Each
Pros	Precise shaft alignment possible Fixing points are relieved
Product details	Bearing housing has a locating shoulder Inner bearing has extended inner ring on both sides with 2 adjusting screws Regreasable
Housing type	Round flange
dBearing inside diameter	20 mm
Housing width	100 mm
Total height	28.3 mm
Total width	28.3 mm
gHousing height	25.5 mm
BiBearing inner ring width	31 mm
kFlange thickness	8 mm
Mounting holes/bolts circle diameter	78 mm
Mounting holes diameter	12 mm
Grease nipple thread diameter	M6
Fitting edge diameter	62 mm
Weight	0.72 kg
Bearing material	Steel
Basic radial load static	6600 N
Basic radial load dynamic	12800 N
Original number equivalent	UCFC204-J7
