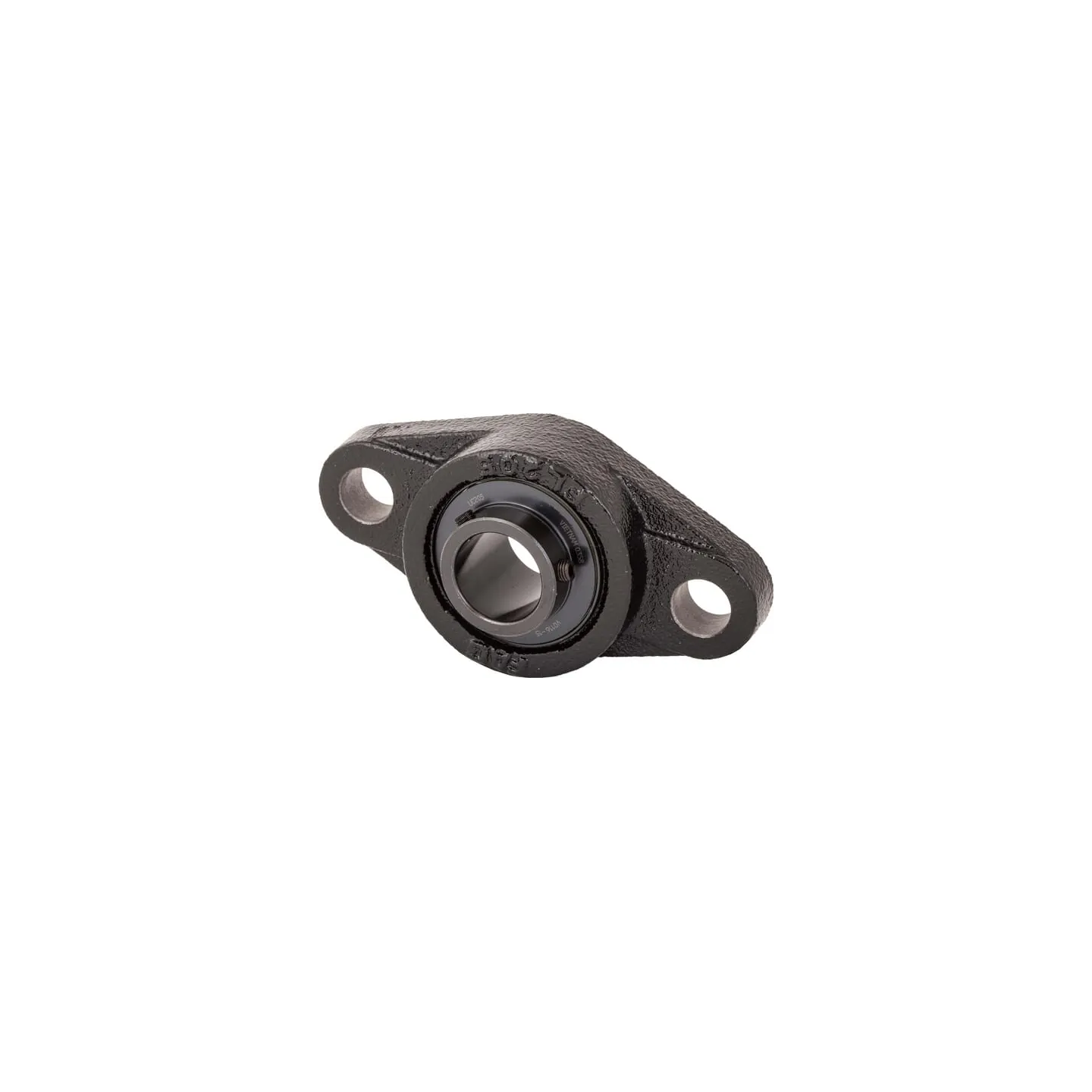

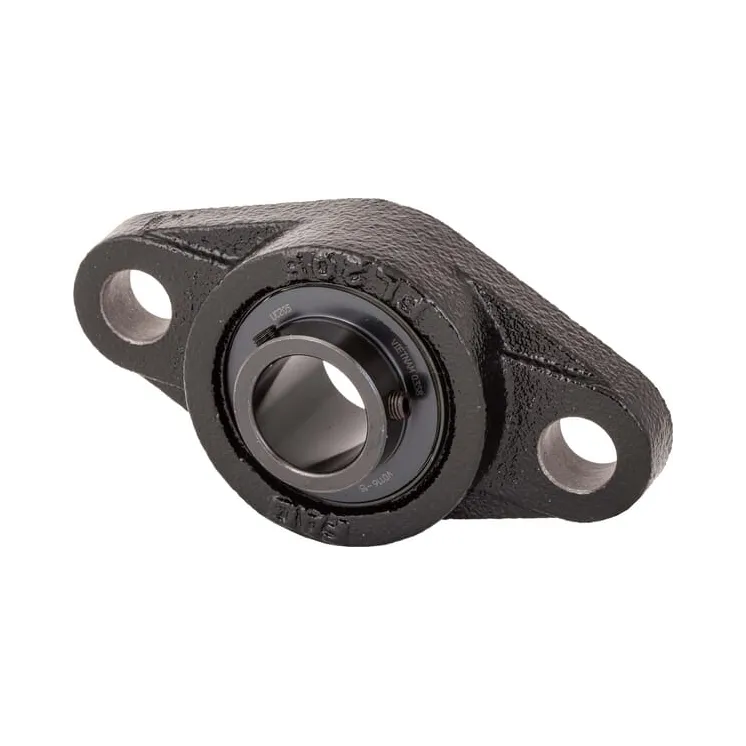

Korpuss UCFL UCFL211

Name: Korpuss UCFL UCFL211
Brand: INA/FAG
SKU: UCFL211
Price: 67.59 EUR
Availability: InStock

Apmaksas iespējas

67,59 €

AR PVN

4-5 Darba dienas

Korpuss UCFL UCFL211 INA/FAG

IR NOLIKTAVĀ

ID: 65465

Apraksts

Part number	UCFL211
EAN	4047643243841
Unit	Each
Long description	These ball bearing units with oval flange are pre-assembled and pre-lubricated. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment.
Pros	Highly suitable for limited installation spaces Assembled, ready for use Pre-lubricated
Product details	Inner bearing has extended inner ring on both sides with 2 adjusting screws Regreasable Self-aligning ball bearing Wide inner ring ball bearing
Includes	Bearing block Bearing Grease nipple
Housing type	Oval flange
dBearing inside diameter	55 mm
aTotal length	224 mm
bHousing width	130 mm
ZTotal height	58.4 mm
lHousing height	43 mm
BiBearing inner ring width	55.6 mm
iBearing balls distance to locking side end	25 mm
nBearing balls distance to mounting surface	22.2 mm
eMounting holes distance	184 mm
SMounting holes diameter	19 mm
QGrease nipple thread diameter	M6
Original number equivalent	UCFL211-J7
