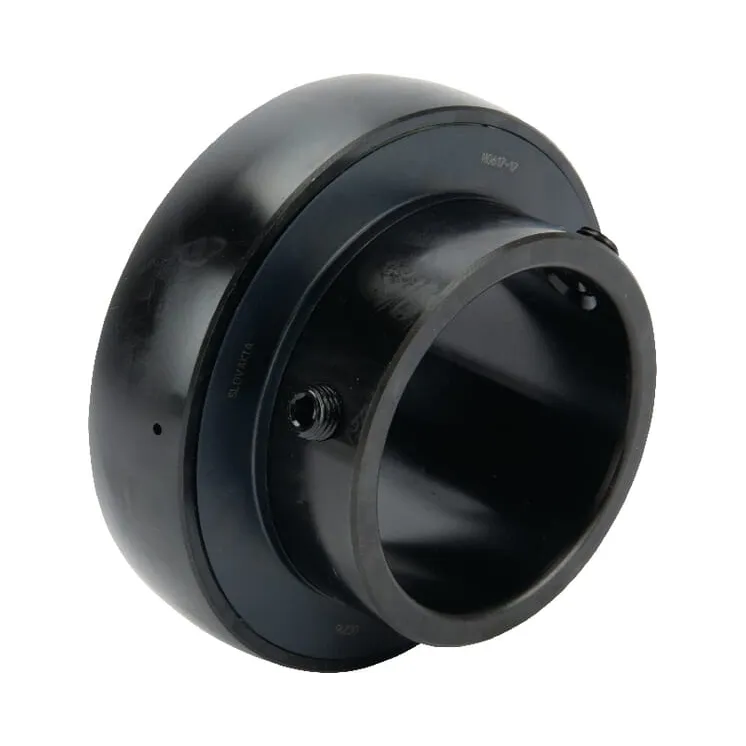

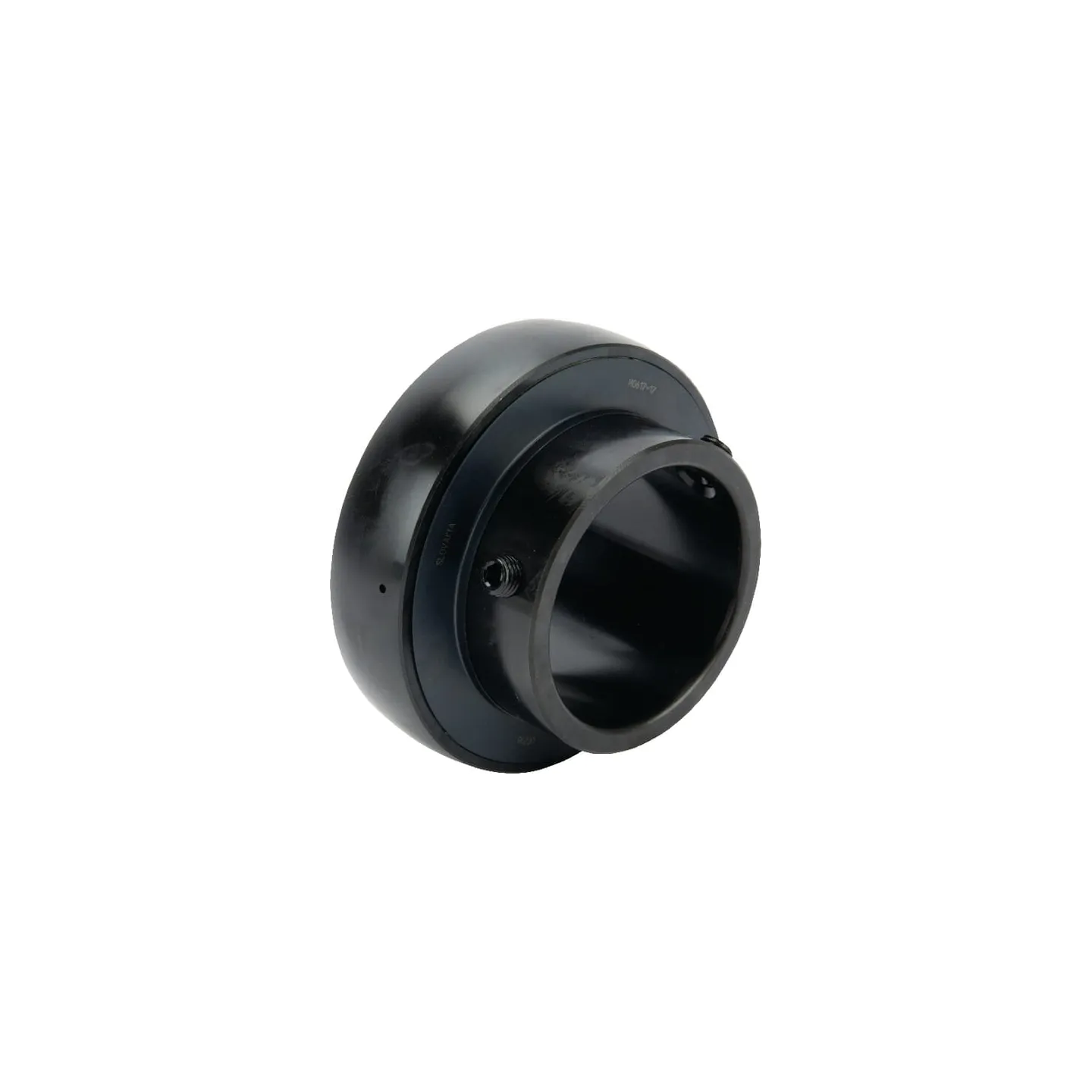

Gultņa ieliktnis 2 / 50,8x100x25mm UC21132INA INA/FAG UC21132 UC21132TR

Gultņa ieliktnis 2 / 50,8x100x25mm UC21132INA UC21132 UC21132TR

Name: Gultņa ieliktnis 2 / 50,8x100x25mm UC21132INA UC21132 UC21132TR
Brand: INA/FAG
SKU: UC21132INA
Price: 35.65 EUR
Availability: InStock

Apmaksas iespējas

35,65 €

AR PVN

4-5 Darba dienas

Gultņa ieliktnis 2 / 50,8x100x25mm UC21132INA INA/FAG UC21132 UC21132TR

IR NOLIKTAVĀ

ID: 65466

Apraksts

Part number	UC21132INA
EAN	4012802630961
Unit	Each
Long description	Ball bearing inserts Koyo, series UC 200 imperial
Application range	Mobile mechanical engineering Stationary mechanical engineering
Properties	Both sides: extended inner ring with 2 adjusting screws Convex outer ring with lubricating holes Sealed on both sides
dInside diameter	50.8 mm
Inside diameter	2 Inch
DOutside diameter	100 mm
COuter ring width	25 mm
BInner ring width	55.6 mm
Locking screw centre to end distance	10 mm
Basic radial load static	29000 N
Basic radial load dynamic	46000 N
Thread diameter	3/16 Inch
Thread type	Inch
Ball centre to grease hole distance	7 mm
Ball centre to end distance	22.2 mm
Ball centre to inner ring end distance	33.4 mm
