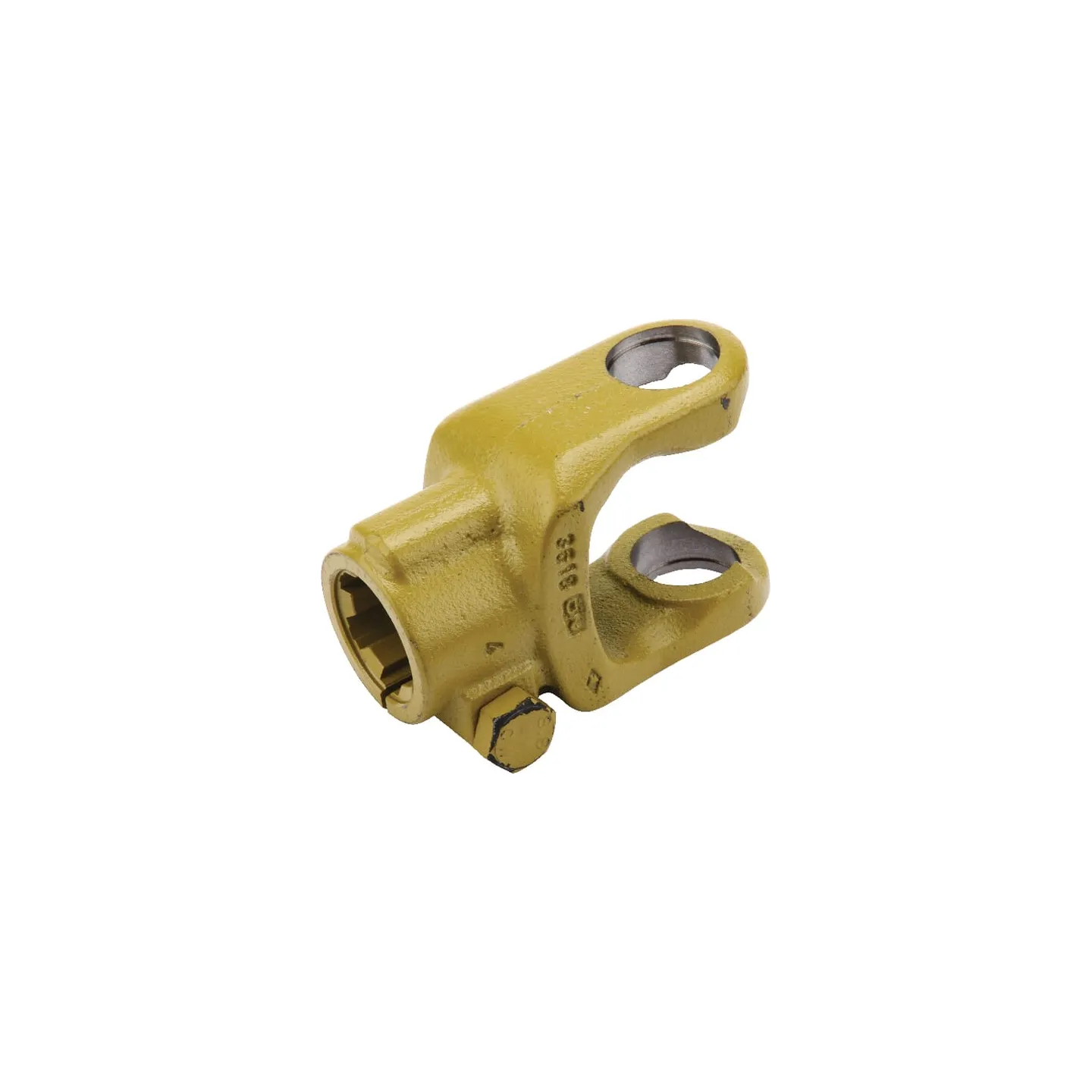

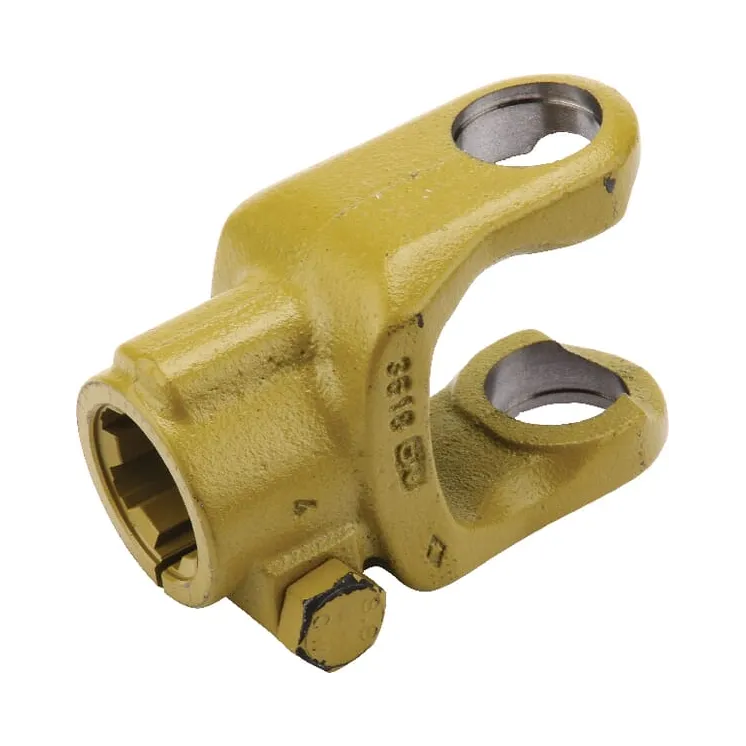

Sjūgs, skavas skrūve, 1-3/8-6 spline, W2100/W100E 101006HE

Name: Sjūgs, skavas skrūve, 1-3/8-6 spline, W2100/W100E 101006HE
Brand: Walterscheid
SKU: 101006HE
Price: 115.58 EUR
Availability: InStock

Apmaksas iespējas

115,58 €

AR PVN

4-5 Darba dienas

Sjūgs, skavas skrūve, 1-3/8-6 spline, W2100/W100E 101006HE Walterscheid

IR NOLIKTAVĀ

ID: 65533

Apraksts

Part number	101006HE
EAN	8435194010443
Unit	Each
Long description	Yokes with clamp bolt closure W series / Power Drive
Details	Clamping pin provides effective clamping effect on the shaft
Pros	Clamp bolt ensures good hold on the shaft
Product details	Slack-free installation Interfering
Application range	Rotary tillers Shredders Wood shredders Stump grinders
Properties	- Double clamp bolt
Technical info	In accordance with safety standard EN12965, do not use yoke on tractor side for machines which were produced after 2005
Benefits	Assembly with no play
Includes	Yoke Clamp bolts
Type	Clamp bolt
Outside connection diameter	34.93 mm
Outside connection diameter	1-3/8 Inch
Consists of	Fork Clamping pin
Connection number of splines/grooves	6
Shaft size code	W2100 W100E
Locking system	Clamp bolt (interfering)
Length	89 mm
D2Bolt thread diameter	M12
Original number equivalent	1040162
