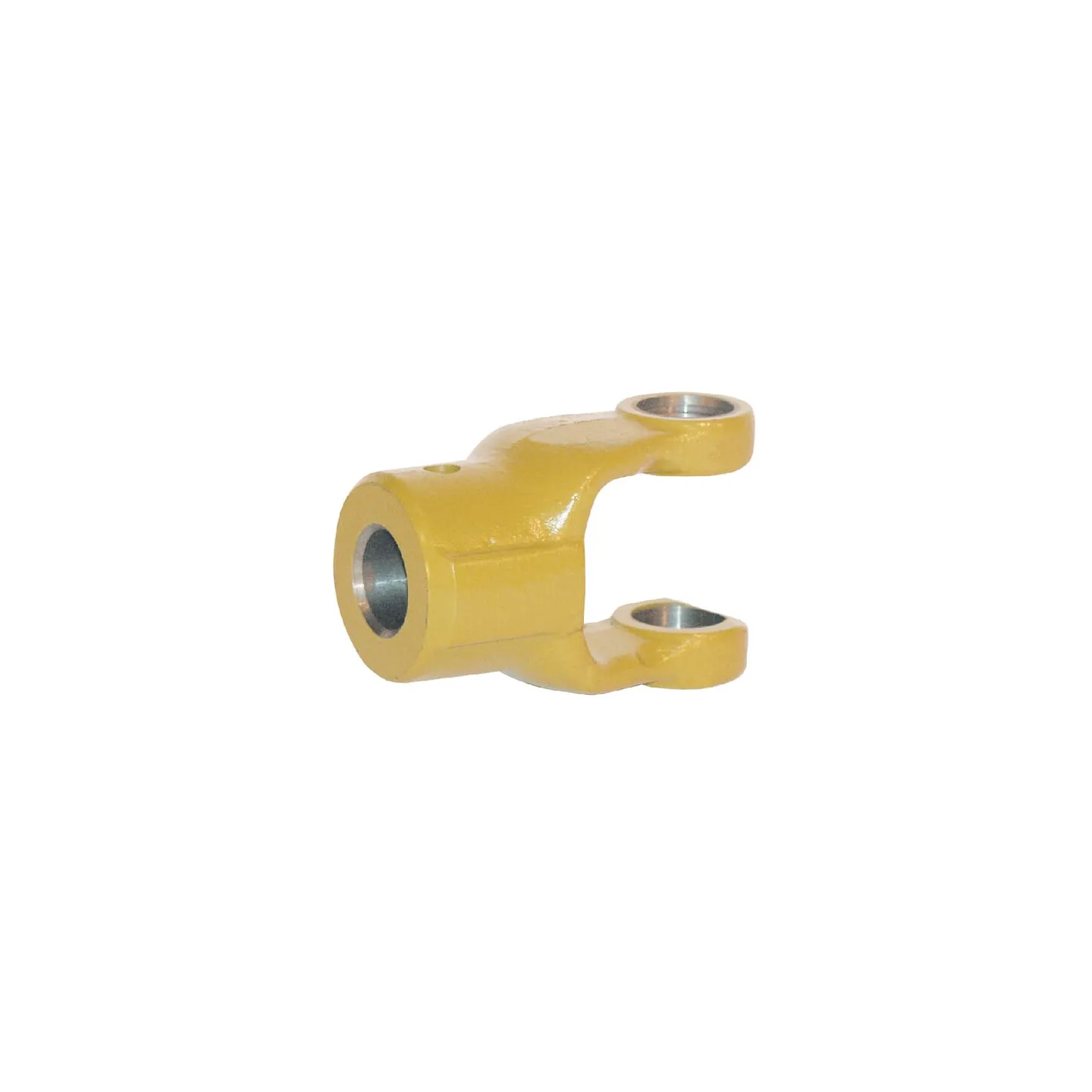

Sjūgs, rumba, 30 mm, W2100/W100E 1022108

Name: Sjūgs, rumba, 30 mm, W2100/W100E 1022108
Brand: Walterscheid
SKU: 1022108
Price: 90 EUR
Availability: InStock

Apmaksas iespējas

90,00 €

AR PVN

4-5 Darba dienas

Sjūgs, rumba, 30 mm, W2100/W100E 1022108 Walterscheid

IR NOLIKTAVĀ

ID: 65573

Apraksts

Part number	1022108
EAN	8435194010603
Unit	Each
Long description	Spring pin yokes with bore series W 2000
Product details	Yoke must be secured with a spring pin Fit R7 = press fit Fit H8 = slide fit
Application range	Original Walterscheid PTO shafts
Technical info	Fork must be secured with a roll pin Fit R7 = press fit Fit H8= sliding fit
Includes	Yoke Excludes spring pin
Type	Hub
Outside connection diameter	30 mm
Consists of	Fork Roll pin not included
Connection diameter tolerance code	H8
Shaft size code	W2100 W100E
Locking system	Roll pin bore
d1Key width	10 mm
LLength	78 mm
BWidth	63 mm
dCross cap diameter	22 mm
Bolt thread diameter	M10
Original number equivalent	1040251
