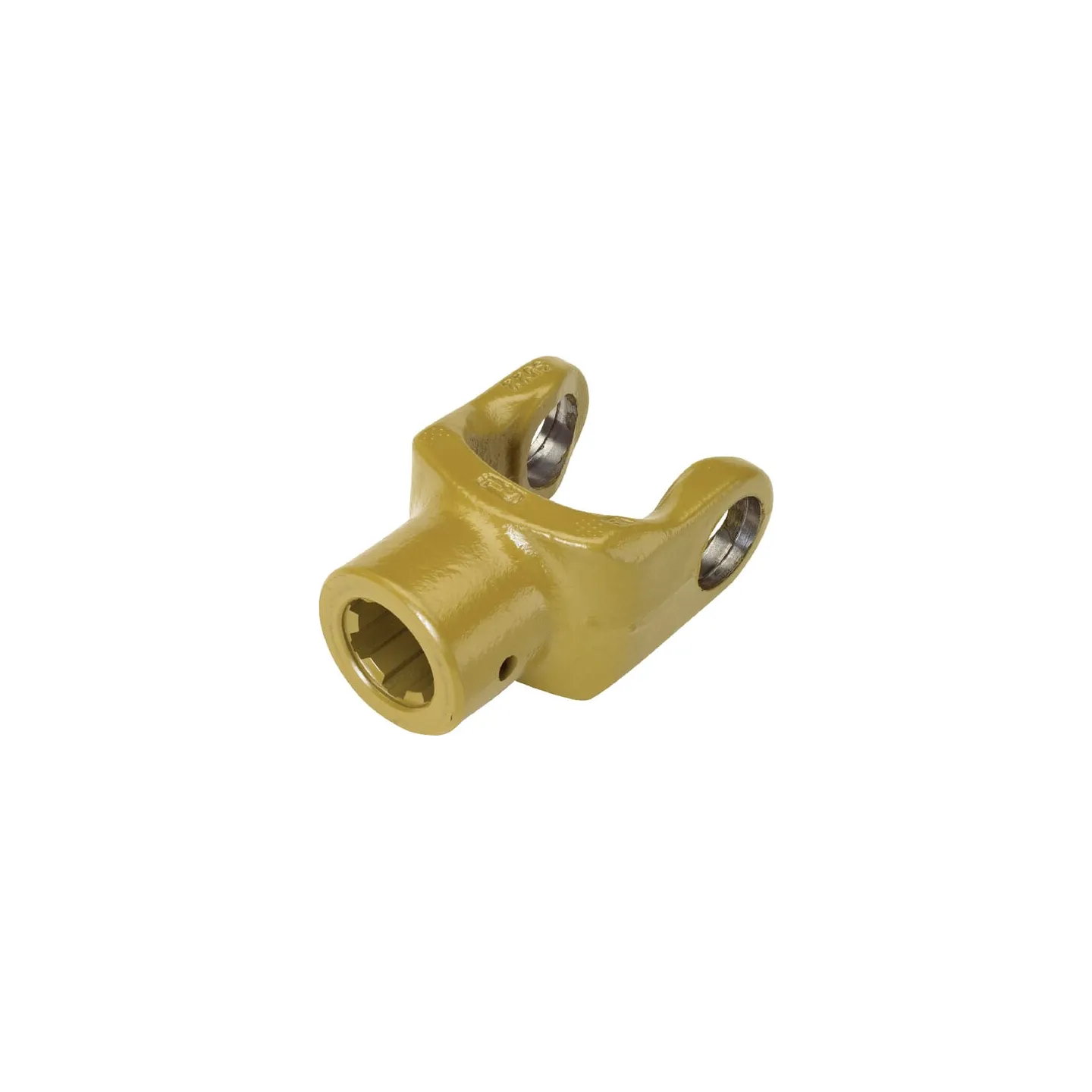

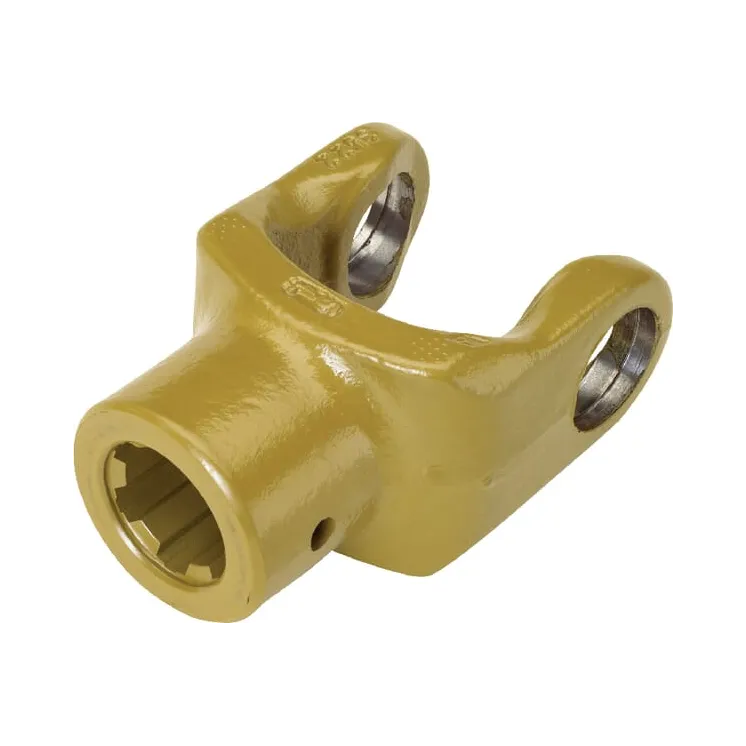

Sjūgs, rumbas, 1-1/8-6 spline, W2100/W100E 1022198 Walterscheid
search
  • Sjūgs, rumbas, 1-1/8-6 spline, W2100/W100E 1022198 Walterscheid

Sjūgs, rumbas, 1-1/8-6 spline, W2100/W100E 1022198

Apmaksas iespējas
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
145,30 €
AR PVN
Pēc pieprasījuma
Sjūgs, rumbas, 1-1/8-6 spline, W2100/W100E 1022198 Walterscheid
Uz pasūtījumu

65579

Part number
1022198
EAN8435194010672
Unit
Each
Long description
Spring pin yokes with bore series W 2000
Product details
  • Yoke must be secured with a spring pin
  • Fit R7 = press fit
  • Fit H8 = slide fit
Application range
Original Walterscheid PTO shafts
Technical info
  • Fork must be secured with a roll pin
  • Fit R7 = press fit
  • Fit H8= sliding fit
Includes
  • Yoke
  • Excludes spring pin
Type
Hub
Outside connection diameter
28.58 mm
Outside connection diameter
1-1/8 Inch
Consists of
  • Fork
  • Roll pin not included
Connection number of splines/grooves
6
Shaft size code
  • W2100
  • W100E
Locking system
Roll pin bore
d1Key width
8 mm
LLength
78 mm
BWidth
63 mm
dCross cap diameter
22 mm
Bolt thread diameter
M8
Original number equivalent
1040316
  • EAN
    8435194010672
