Sjūgs, profila caurule, 1-1/8-6 spline, W2100/W100E 1048103

Name: Sjūgs, profila caurule, 1-1/8-6 spline, W2100/W100E 1048103
Brand: Walterscheid
SKU: 1048103
Price: 136.85 EUR
Availability: InStock

Apmaksas iespējas

136,85 €

AR PVN

4-5 Darba dienas

Sjūgs, profila caurule, 1-1/8-6 spline, W2100/W100E 1048103 Walterscheid

IR NOLIKTAVĀ

ID: 65691

Apraksts

Part number	1048103
EAN	8432970126282
Unit	Each

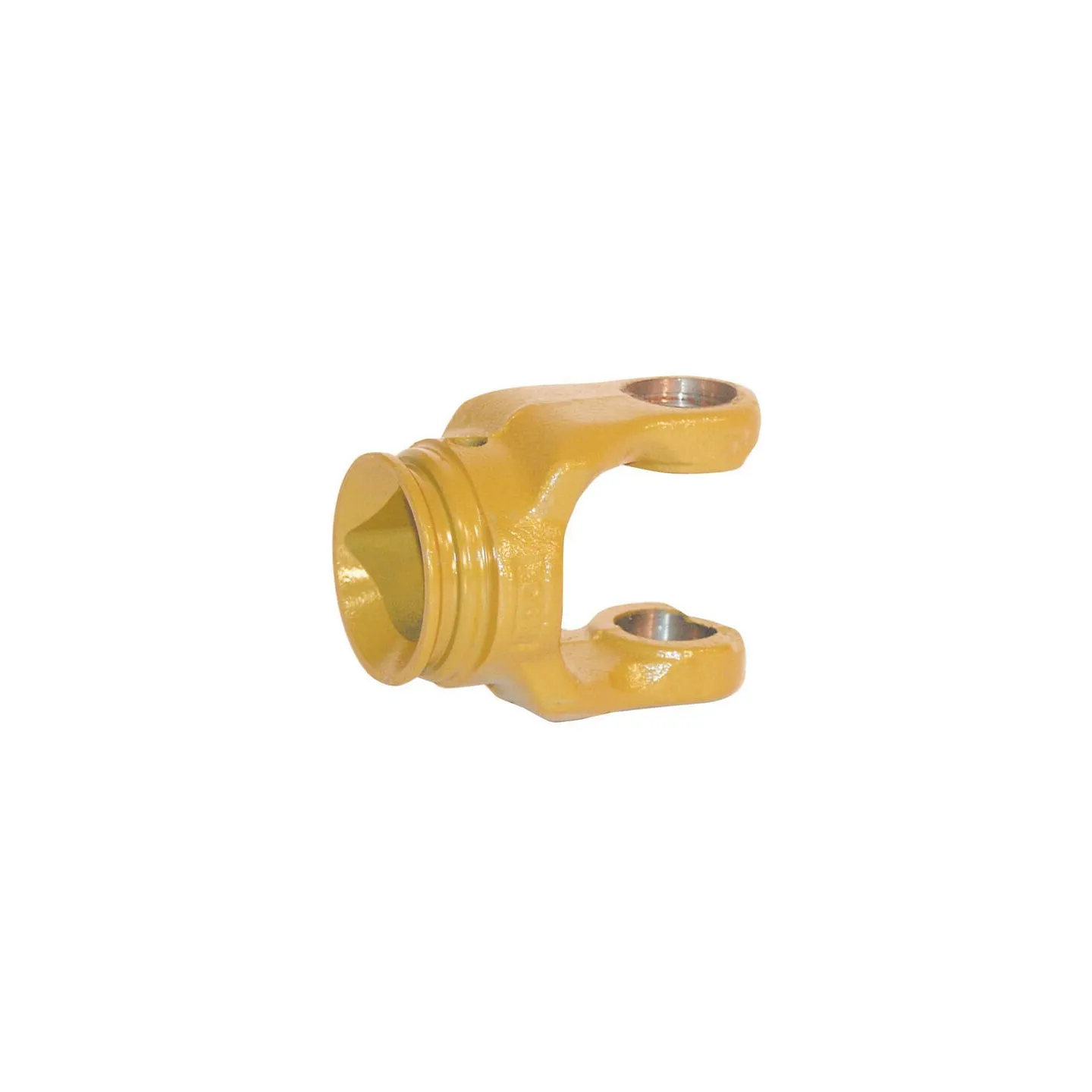

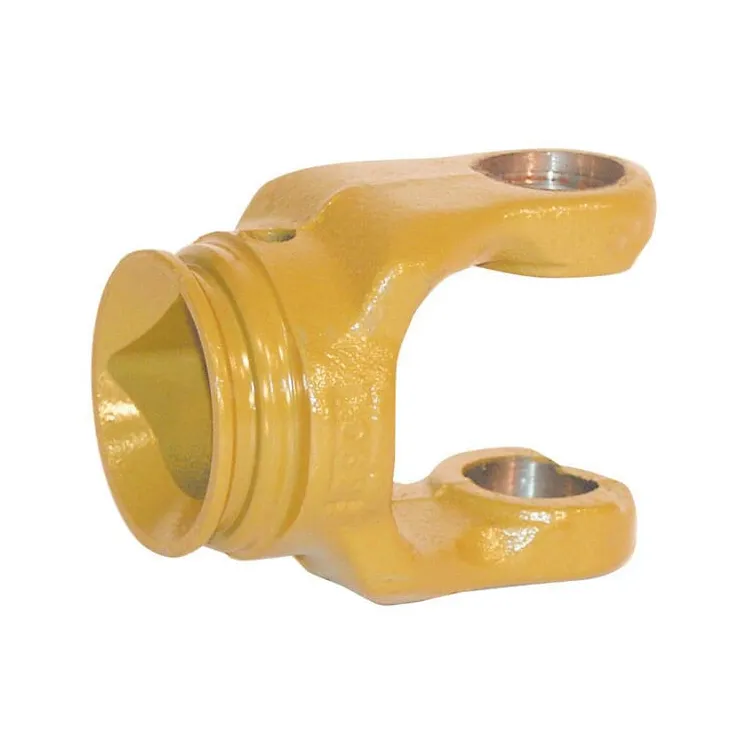

Long description	Profile tube yokes series W 2000
Product details	For connection of Walterscheid profile tube Profile tube must be secured with a spring pin
Application range	Original Walterscheid PTO shafts
Technical info	For connecting Walterscheid profile tubes Profile tube must be secured with a roll pin
Includes	Yoke Excludes spring pin
Type	Profile tube
Outside connection diameter	1-1/8 Inch
Outer tube diameter	28.6 mm
Consists of	Fork Roll pin not included
Connection number of splines/grooves	6
Shaft size code	W2100 W100E
Locking system	Roll pin bore
Length	66 mm
Original number equivalent	1040455
