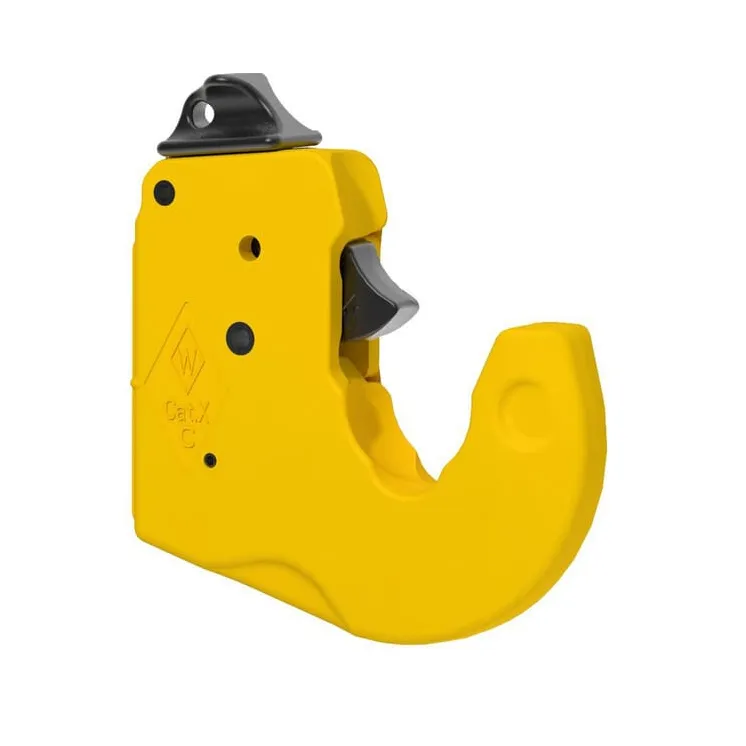

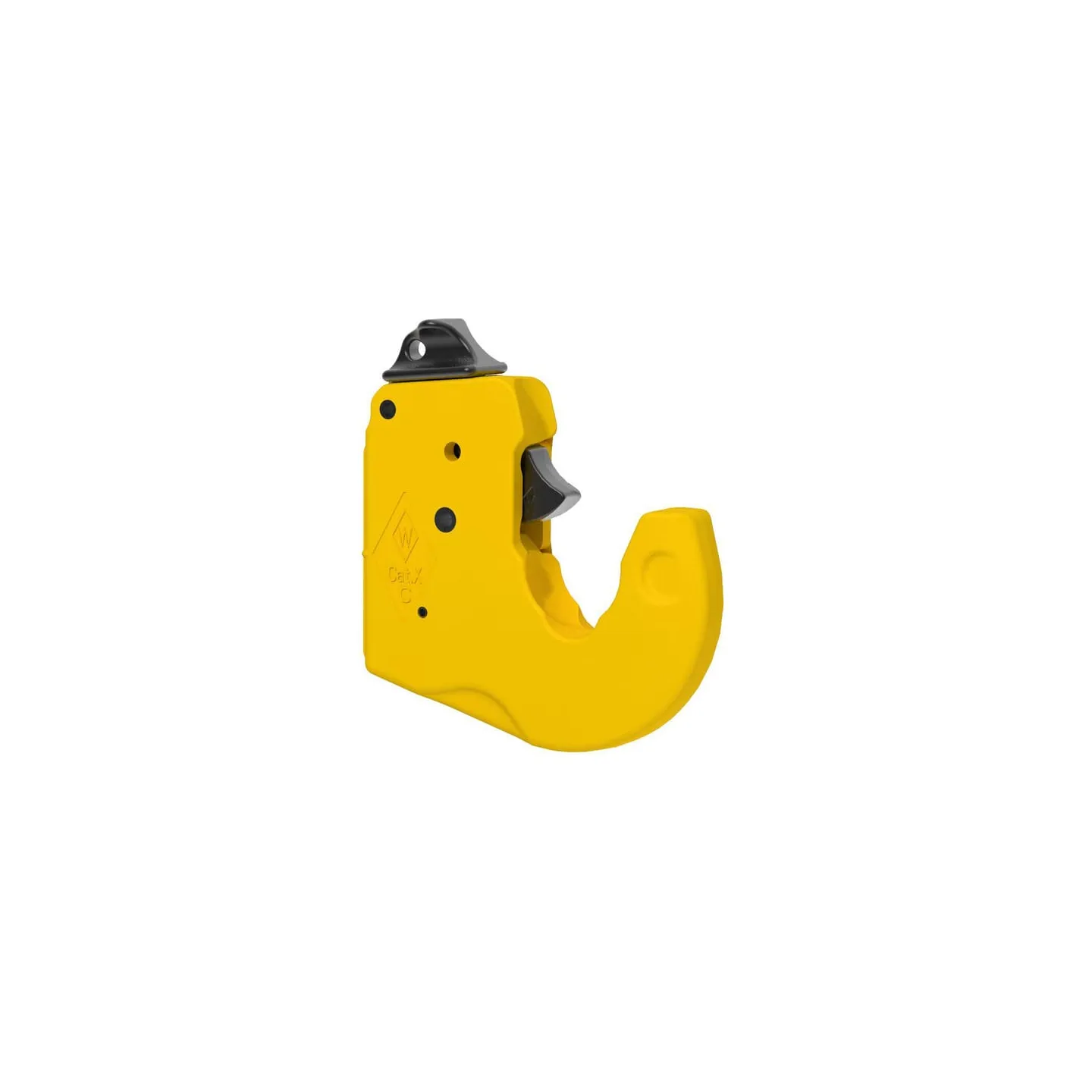

Apakšējo vilcējstieņu āķis C1 kat.1 1208552 Walterscheid 200182

Apakšējo vilcējstieņu āķis C1 kat.1 1208552 200182

Name: Apakšējo vilcējstieņu āķis C1 kat.1 1208552 200182
Brand: Walterscheid
SKU: 1208552
Price: 226.44 EUR
Availability: BackOrder

226,44 €

AR PVN

Pēc pieprasījuma

Apakšējo vilcējstieņu āķis C1 kat.1 1208552 Walterscheid 200182

Uz pasūtījumu

ID: 65725

Apraksts

Part number	1208552
EAN
Unit	Each
Details	Simple coupling without centring chamfers Safety lock prevents accidental opening Compact design guarantees clearance to the implement Insensitive to dirt due to low number of components and dirt discharge opening To ensure complete locking, the locking pawl can be secured with one 8 x 50 screw, for example
Application range	Category 1: for tractors up to 40 kW (55 HP) Category 2: for tractors up to 74 kW (100 HP) Category 3L: for tractors up to 92 kW (125 HP) Category 3: for tractors up to 165 kW (225 HP) Category 4: for tractors up to 294 kW (400 HP)
Properties	Made from high strength steel
Benefits	Designed to absorb high tensile, compressive and lateral forces Special shape facilitates the requisite angular mobility Mechanisms inside the hood are protected from impact and dirt The automatic safety lock can only be released by the opening lever Self actuated unlocking is impossible
Category	1
DHole diameter	44 mm
LHole centre to connection point distance	105 mm
BThickness	28 mm
Max.tractor power	40 kW
