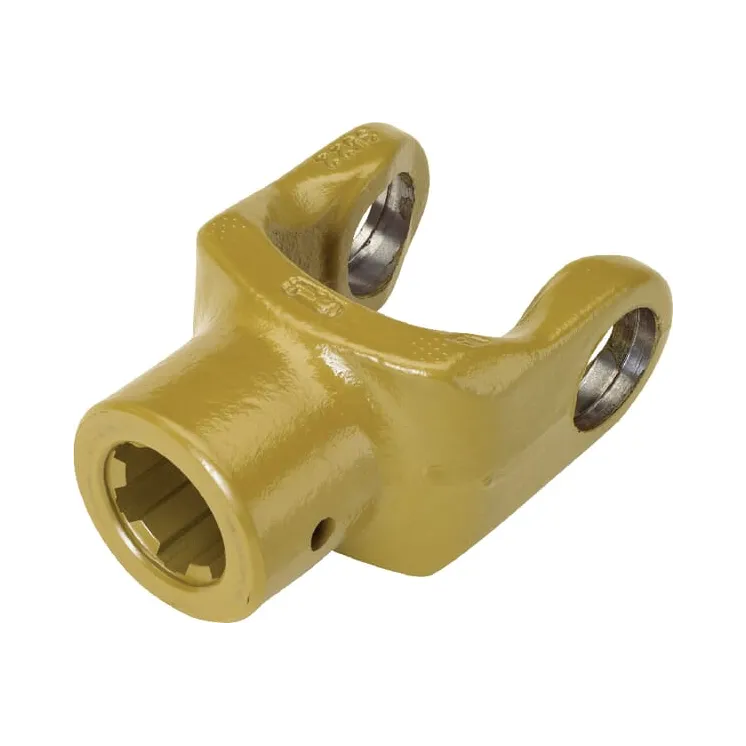

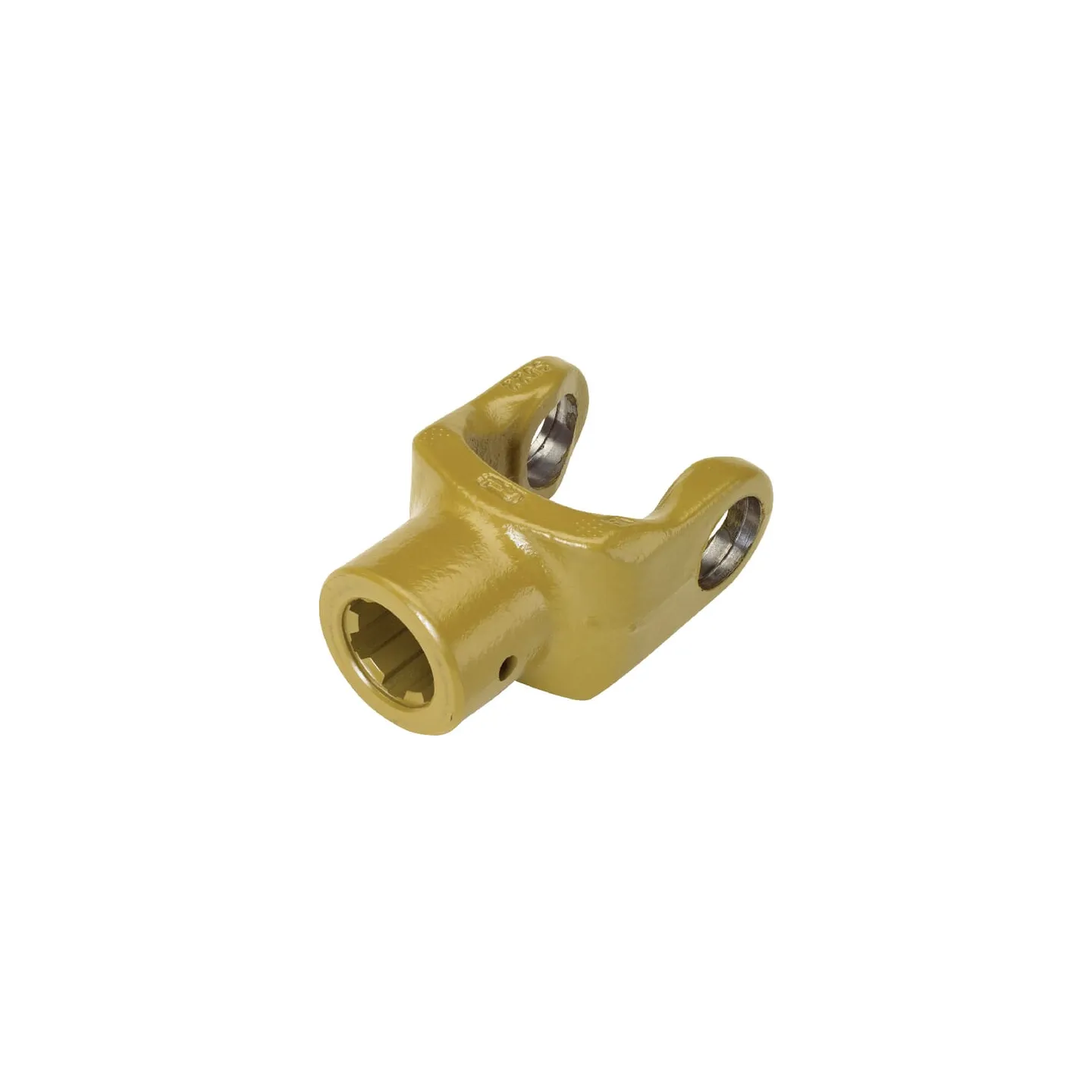

Sjūgs, rumba, 1-3/8-6 spline, W2400/P400/W400E 3522106

Name: Sjūgs, rumba, 1-3/8-6 spline, W2400/P400/W400E 3522106
Brand: Walterscheid
SKU: 3522106
Price: 221.79 EUR
Availability: InStock

Apmaksas iespējas

221,79 €

AR PVN

4-5 Darba dienas

Sjūgs, rumba, 1-3/8-6 spline, W2400/P400/W400E 3522106 Walterscheid

IR NOLIKTAVĀ

ID: 66420

Apraksts

Part number	3522106
EAN	8435194024020
Unit	Each
Long description	Spring pin yokes with bore series W 2000
Product details	Yoke must be secured with a spring pin Fit R7 = press fit Fit H8 = slide fit
Application range	Original Walterscheid PTO shafts
Technical info	Fork must be secured with a roll pin Fit R7 = press fit Fit H8= sliding fit
Includes	Yoke Excludes spring pin
Type	Hub
Outside connection diameter	34.93 mm
Outside connection diameter	1-3/8 Inch
Consists of	Fork Roll pin not included
Connection number of splines/grooves	6
Shaft size code	W2400 P400 W400E
Locking system	Roll pin bore
d1Key width	8 mm
LLength	105 mm
BWidth	86 mm
dCross cap diameter	32 mm
Bolt thread diameter	M8
Original number equivalent	1320693
