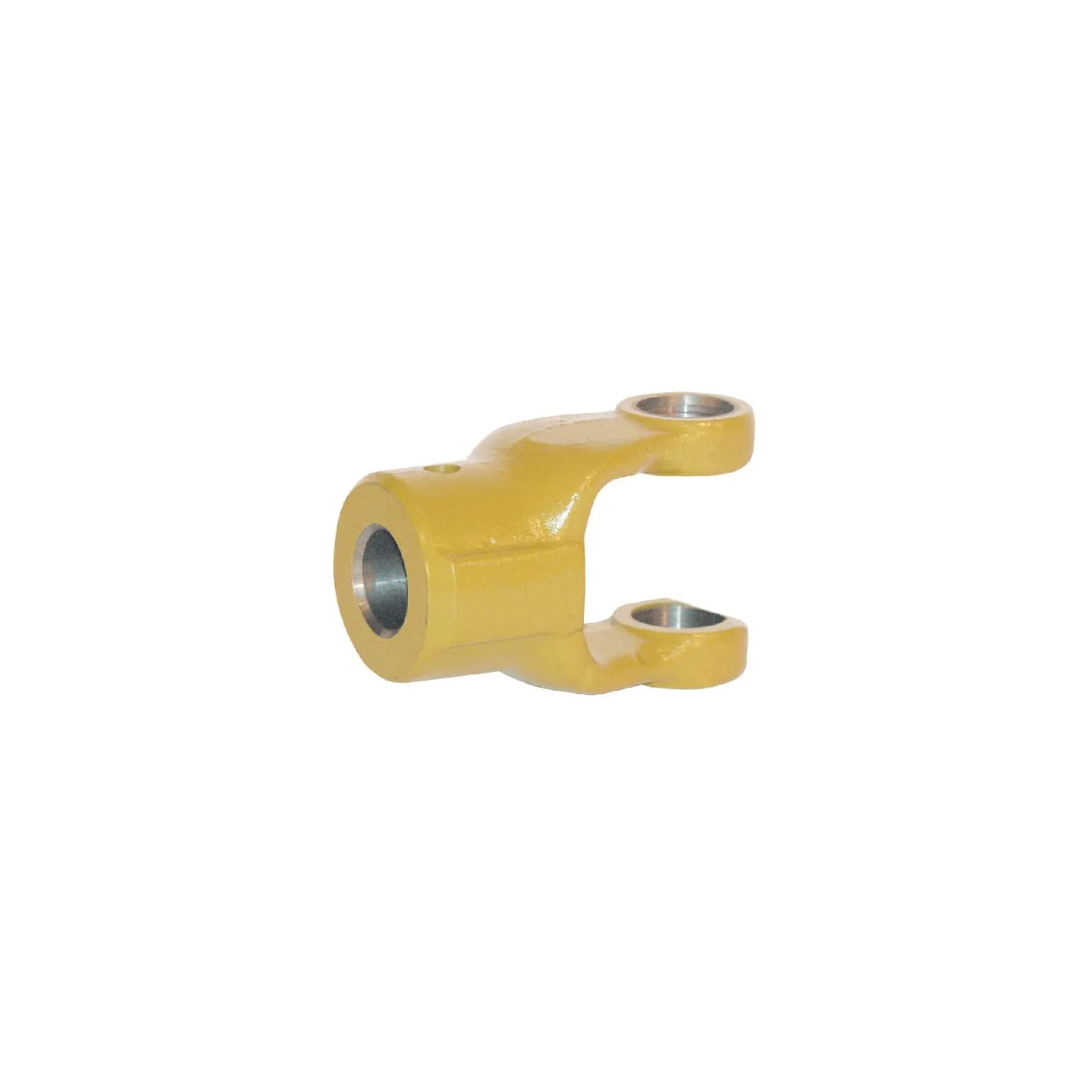

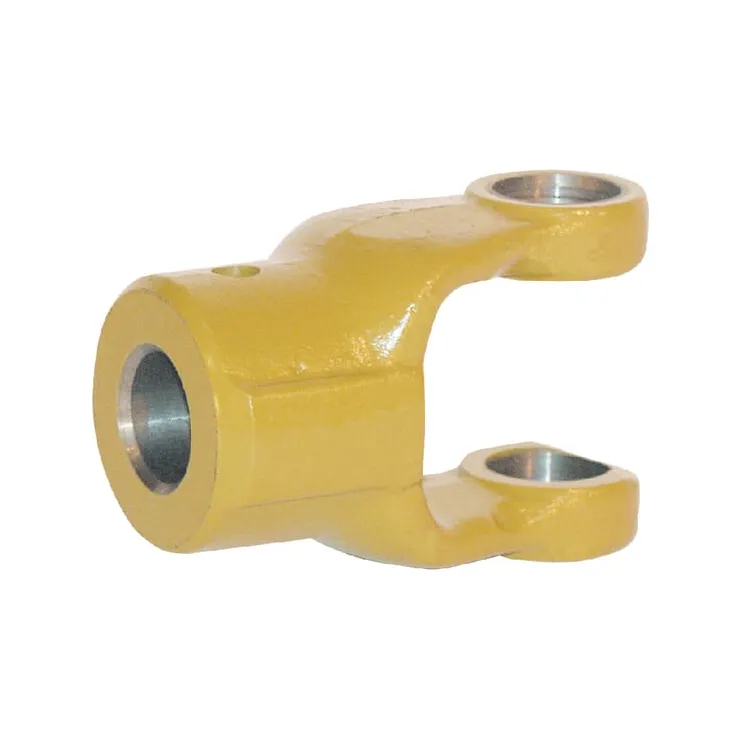

Sjūgs, rumbas, 35 mm, W2400/P400/W400E 352200

Name: Sjūgs, rumbas, 35 mm, W2400/P400/W400E 352200
Brand: Walterscheid
SKU: 352200
Price: 262.17 EUR
Availability: InStock

Apmaksas iespējas

262,17 €

AR PVN

4-5 Darba dienas

Sjūgs, rumbas, 35 mm, W2400/P400/W400E 352200 Walterscheid

IR NOLIKTAVĀ

ID: 66450

Apraksts

Part number	352200
EAN	8435194024006
Unit	Each
Long description	Spring pin yokes with bore series W 2000
Product details	Yoke must be secured with a spring pin Fit R7 = press fit Fit H8 = slide fit
Application range	Original Walterscheid PTO shafts
Technical info	Fork must be secured with a roll pin Fit R7 = press fit Fit H8= sliding fit
Includes	Yoke Excludes spring pin
Type	Hub
Outside connection diameter	35 mm
Consists of	Fork Roll pin not included
Connection diameter tolerance code	H8
Shaft size code	W2400 P400 W400E
Locking system	Roll pin bore
d1Key width	13 mm
LLength	105 mm
BWidth	86 mm
dCross cap diameter	32 mm
Bolt thread diameter	M13
Original number equivalent	1320688
