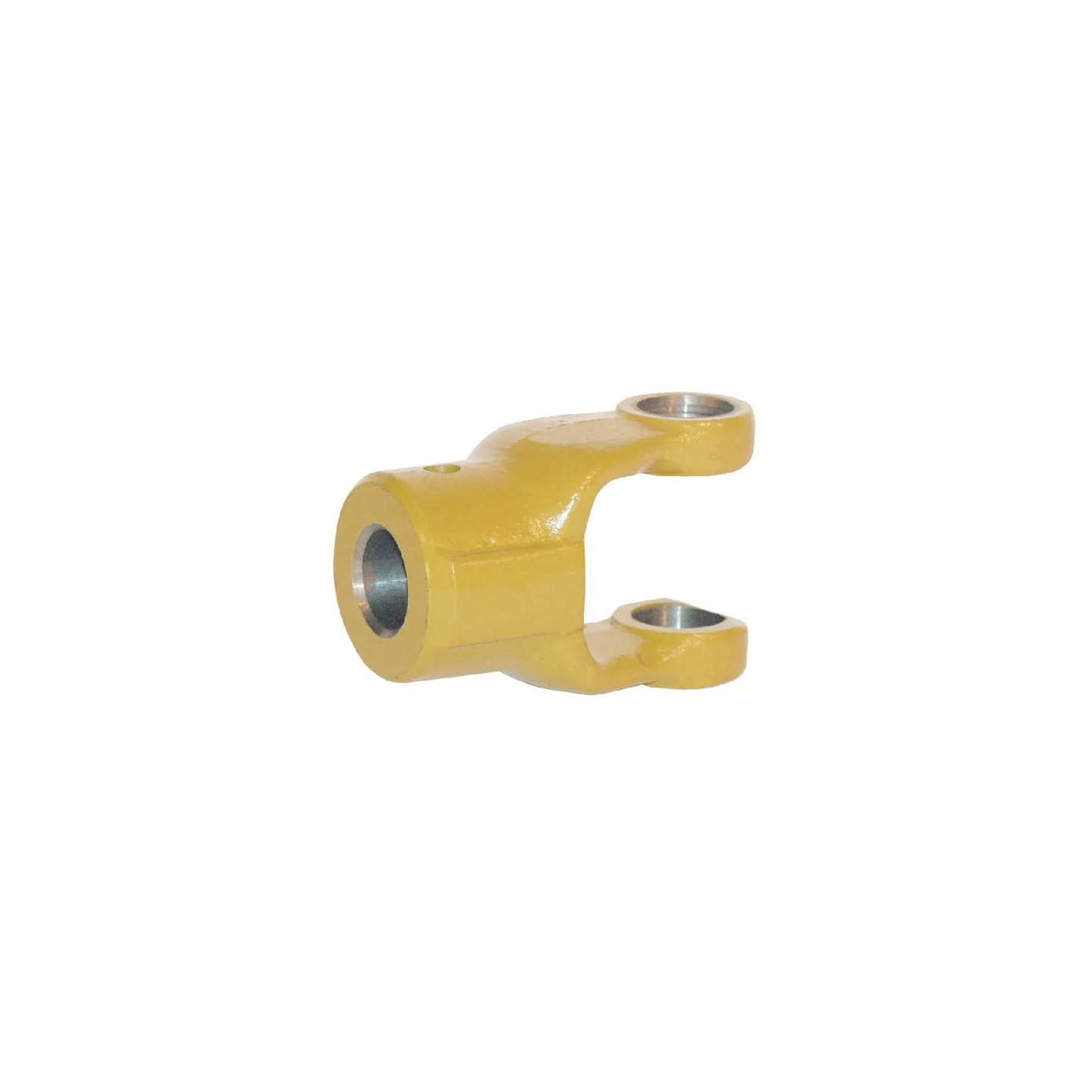

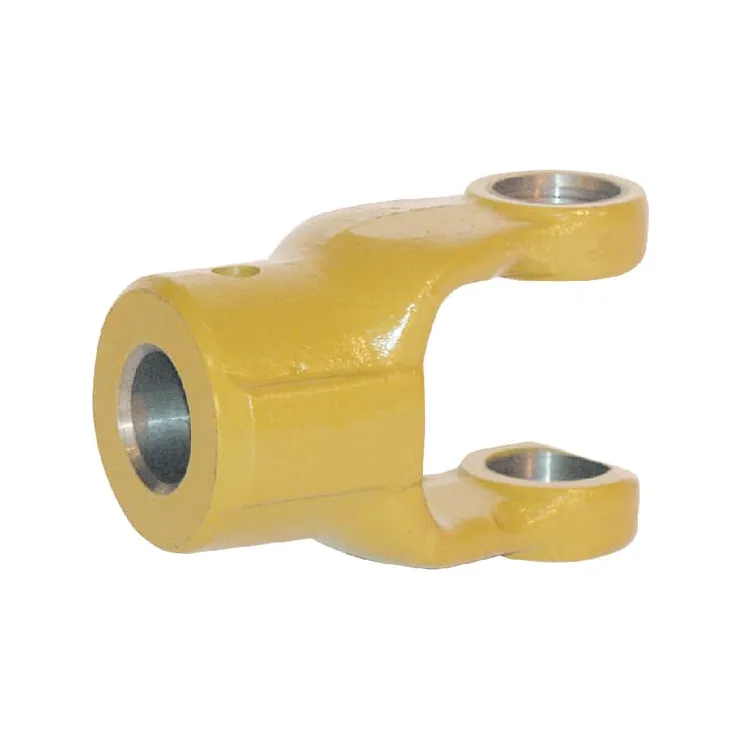

Sjūgs, rumba, 40 x 36 mm —20 sprauga, W2400/P400/W400E 3524140

Name: Sjūgs, rumba, 40 x 36 mm —20 sprauga, W2400/P400/W400E 3524140
Brand: Walterscheid
SKU: 3524140
Price: 219.86 EUR
Availability: InStock

Apmaksas iespējas

219,86 €

AR PVN

4-5 Darba dienas

Sjūgs, rumba, 40 x 36 mm —20 sprauga, W2400/P400/W400E 3524140 Walterscheid

IR NOLIKTAVĀ

ID: 66456

Apraksts

Part number	3524140
EAN	8432970132788
Unit	Each
Long description	Spring pin yokes with bore series W 2000
Product details	Yoke must be secured with a spring pin Fit R7 = press fit Fit H8 = slide fit
Application range	Original Walterscheid PTO shafts
Technical info	Fork must be secured with a roll pin Fit R7 = press fit Fit H8= sliding fit
Includes	Yoke Excludes spring pin
Type	Hub
Outside connection diameter	40 mm
Consists of	Fork Roll pin not included
AInside connection diameter	36 mm
Connection number of splines/grooves	20
Shaft size code	W2400 P400 W400E
Locking system	Roll pin bore
LLength	126 mm
BWidth	86 mm
dCross cap diameter	32 mm
Original number equivalent	1103802
