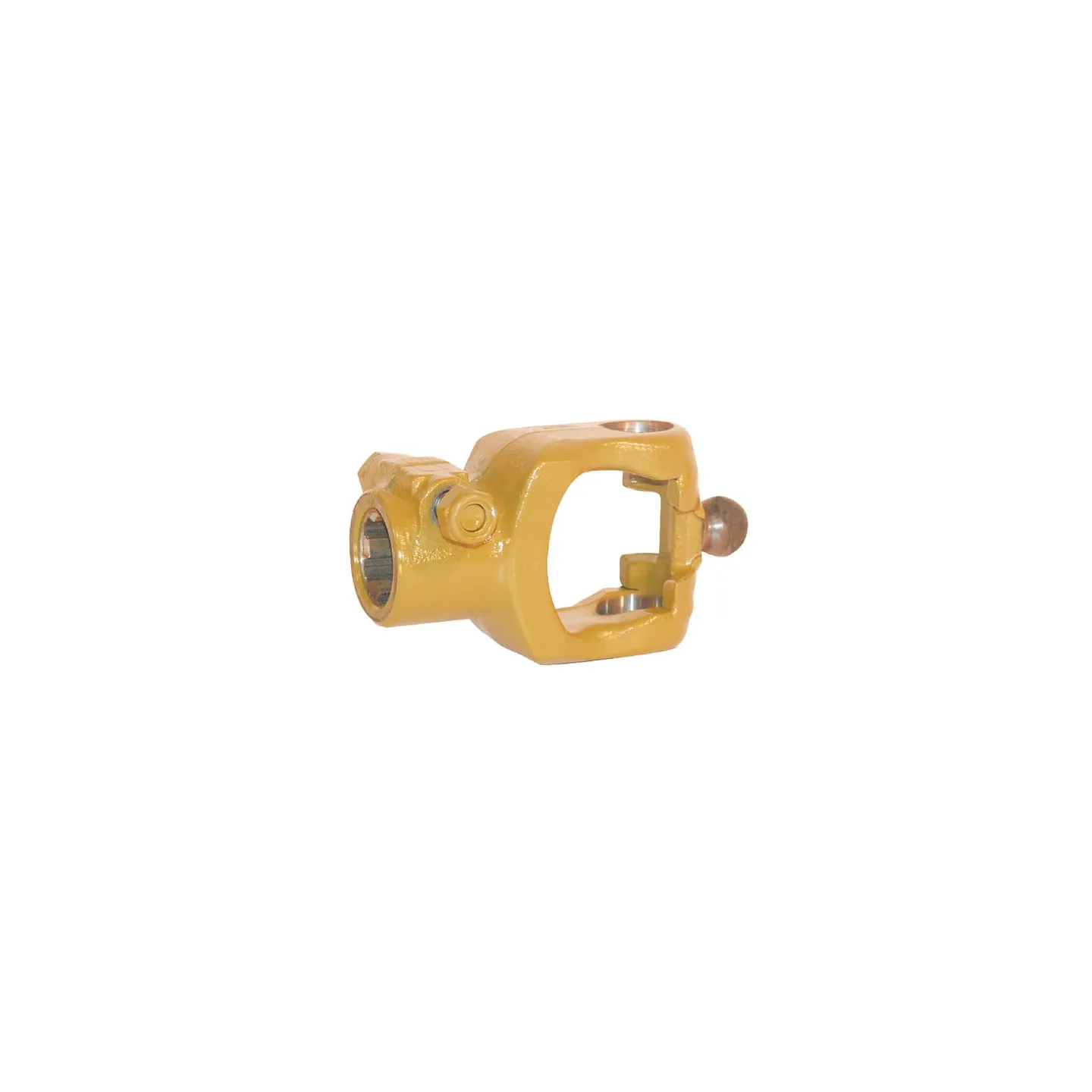

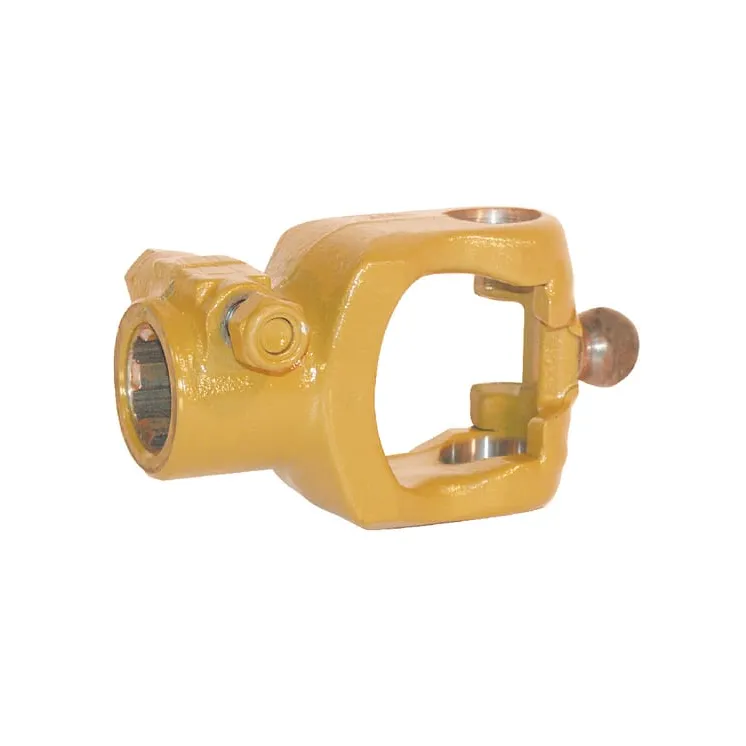

Sjūgs, skavas skrūve, 1-3/8-6 spline, W2480 351014

Name: Sjūgs, skavas skrūve, 1-3/8-6 spline, W2480 351014
Brand: Walterscheid
SKU: 351014
Price: 483.56 EUR
Availability: InStock

Apmaksas iespējas

483,56 €

AR PVN

4-5 Darba dienas

Sjūgs, skavas skrūve, 1-3/8-6 spline, W2480 351014 Walterscheid

IR NOLIKTAVĀ

ID: 66470

Apraksts

Part number	351014
EAN	8435194027427
Unit	Each
Long description	Wide-angle clamping cone yokes series W 2280 / 80°
Details	Clamping pin provides effective clamping effect on the shaft
Application range	Rotary tillers Shredders Wood shredders Stump grinders
Properties	Clamp cone bolt
Technical info	In accordance with safety standard EN12965, do not use yoke on tractor side for machines which were produced after 2005
Benefits	Assembly with no play
Type	Clamp bolt
Outside connection diameter	34.93 mm
Outside connection diameter	1-3/8 Inch
Consists of	Fork with clipbolt
Connection number of splines/grooves	6
Shaft size code	W2480
Locking system	Clamp bolt (interfering)
Length	112 mm
Ball diameter	27 mm
D2Bolt thread diameter	M12
Original number equivalent	1366828
