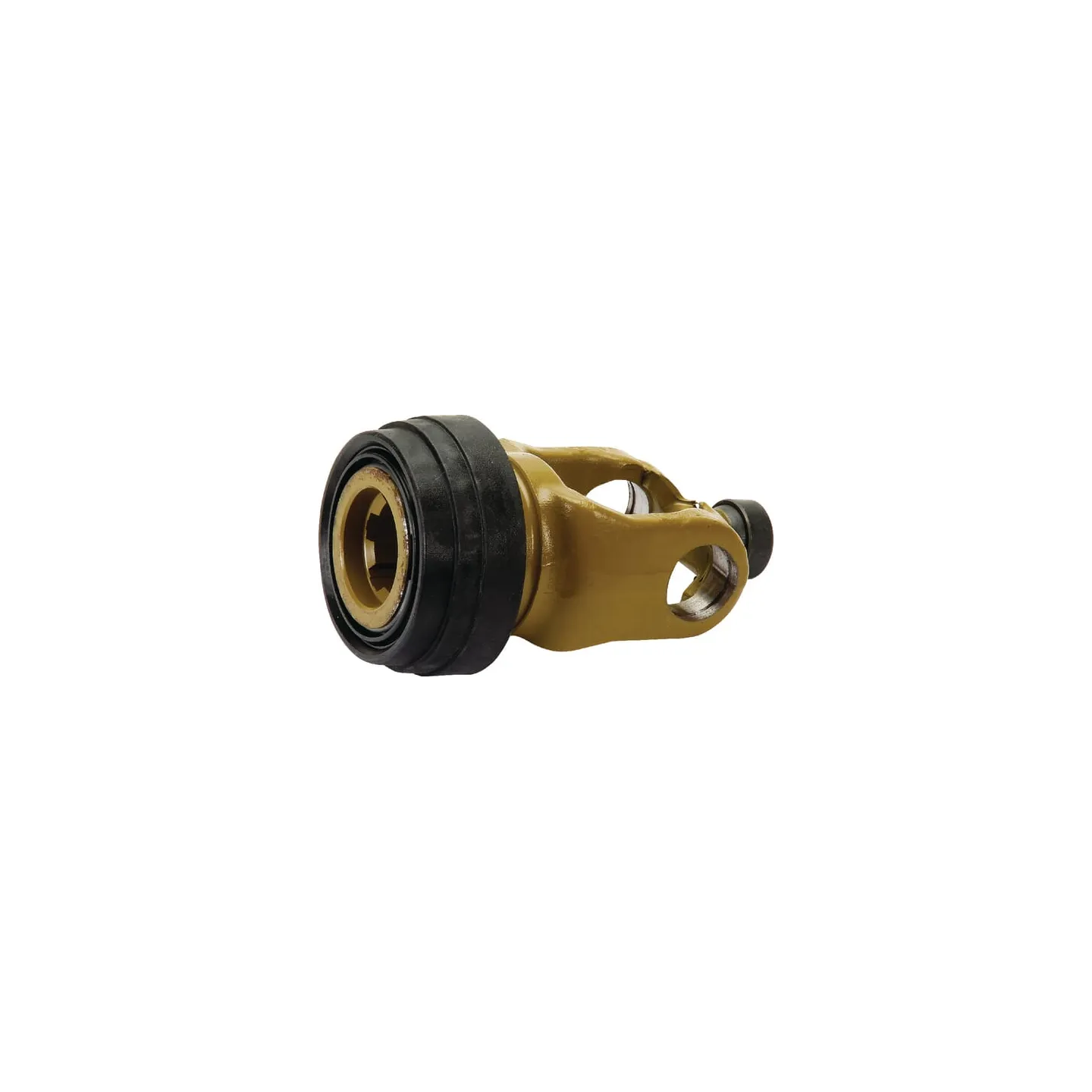

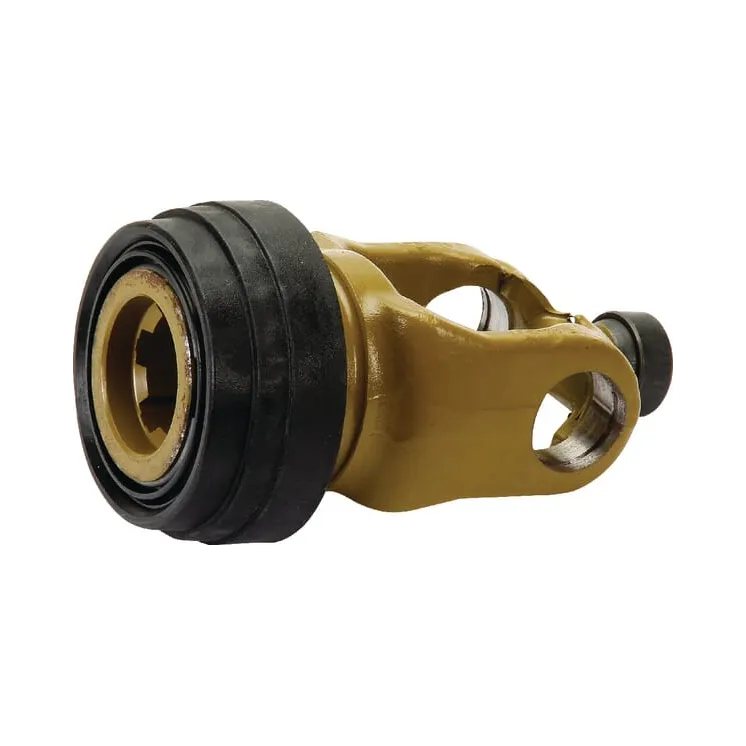

Sjūgs, ātra atvienošana, 1-3/4-6 spline, P480 3584310M Walterscheid 3584310

Sjūgs, ātra atvienošana, 1-3/4-6 spline, P480 3584310M 3584310

Name: Sjūgs, ātra atvienošana, 1-3/4-6 spline, P480 3584310M 3584310
Brand: Walterscheid
SKU: 3584310M
Price: 751.72 EUR
Availability: BackOrder

Apmaksas iespējas

751,72 €

AR PVN

Pēc pieprasījuma

Sjūgs, ātra atvienošana, 1-3/4-6 spline, P480 3584310M Walterscheid 3584310

Uz pasūtījumu

ID: 66483

Apraksts

Part number	3584310M
EAN
Unit	Each
Long description	Wide-angle QS quick-disconnect yokes series P 80°
Details	Quick release coupling with stopper
Application range	Original Walterscheid PTO shafts
Properties	Plastic collar clip
Benefits	Easier to couple (automatic collar)
Type	Quick disconnect
Outside connection diameter	44.45 mm
Outside connection diameter	1-3/4 Inch
Connection number of splines/grooves	6
Shaft size code	P480
Locking system	Automatic collar lock
Length	132 mm
Ball diameter	33 mm
Original number equivalent	1137014
