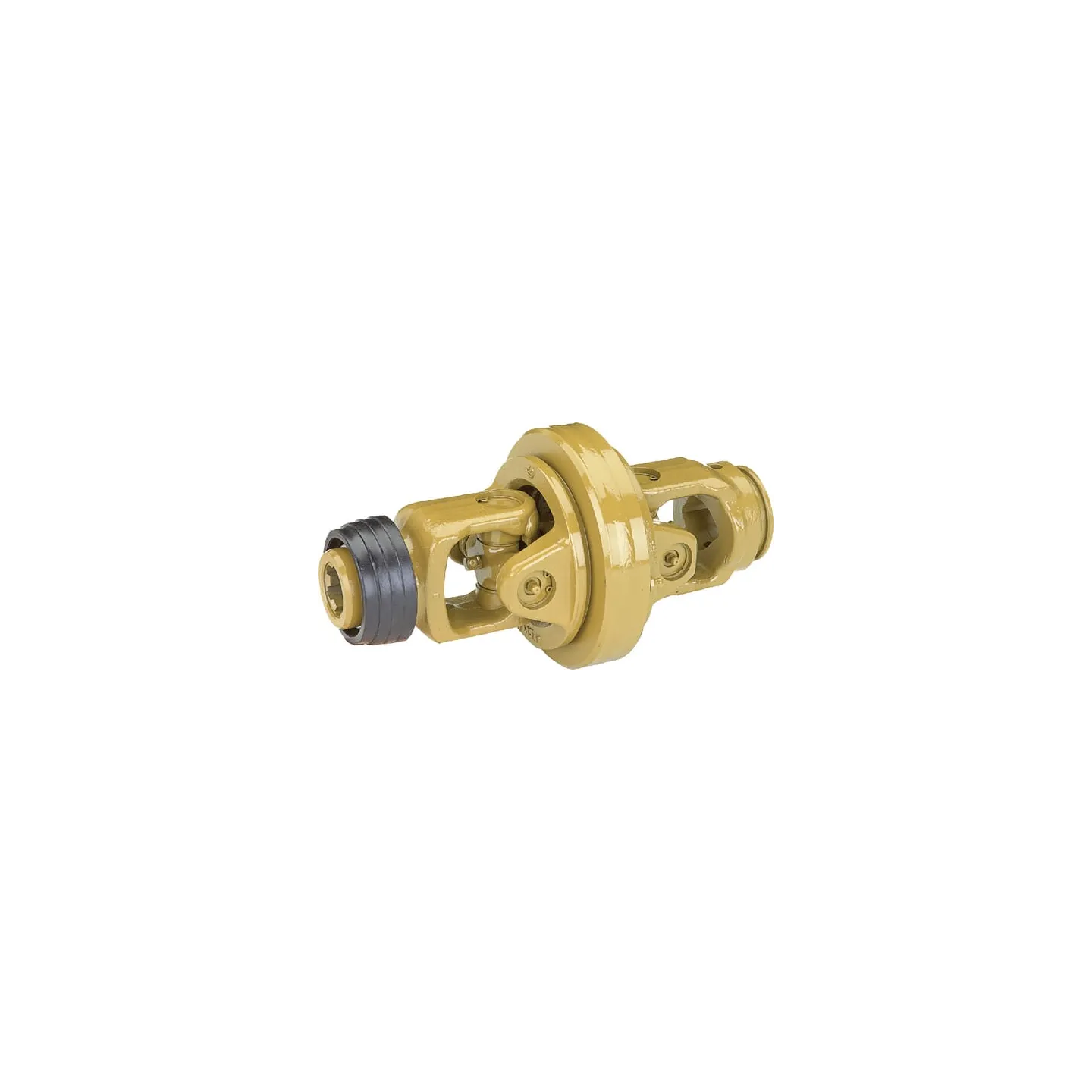

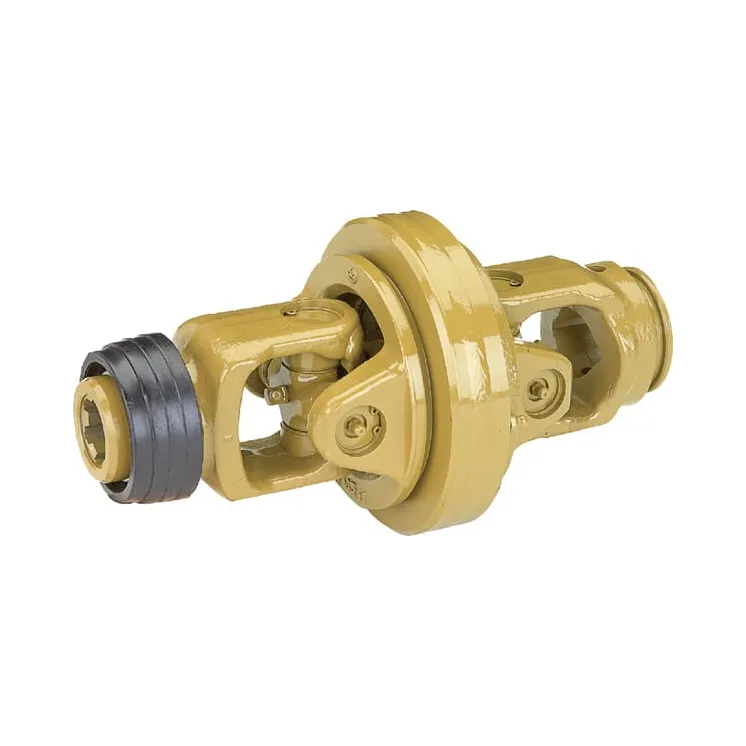

Platleņķa cv savienojums W2480-S4 3583123513109 Walterscheid 35838323513109

Platleņķa cv savienojums W2480-S4 3583123513109 35838323513109

Name: Platleņķa cv savienojums W2480-S4 3583123513109 35838323513109
Brand: Walterscheid
SKU: 3583123513109
Price: 925.52 EUR
Availability: InStock

Apmaksas iespējas

925,52 €

AR PVN

4-5 Darba dienas

Platleņķa cv savienojums W2480-S4 3583123513109 Walterscheid 35838323513109

IR NOLIKTAVĀ

ID: 66488

Apraksts

Part number	3583123513109
EAN
Unit	Each
Application range	Walterscheid PTO shafts
Connection 1, outside diameter	1-3/8 Inch
Consists of	Wide-angle yoke Wide-angle cross journal (2x) Wide-angle double yoke Wide-angle profile tube yoke
Connection 1, number of splines	21
Connection 1, locking type	Collar lock
Connection 2, tube profile type code	S4
Original number equivalent	1113318
Max. working angle	80 °
Shaft size code	W2480
