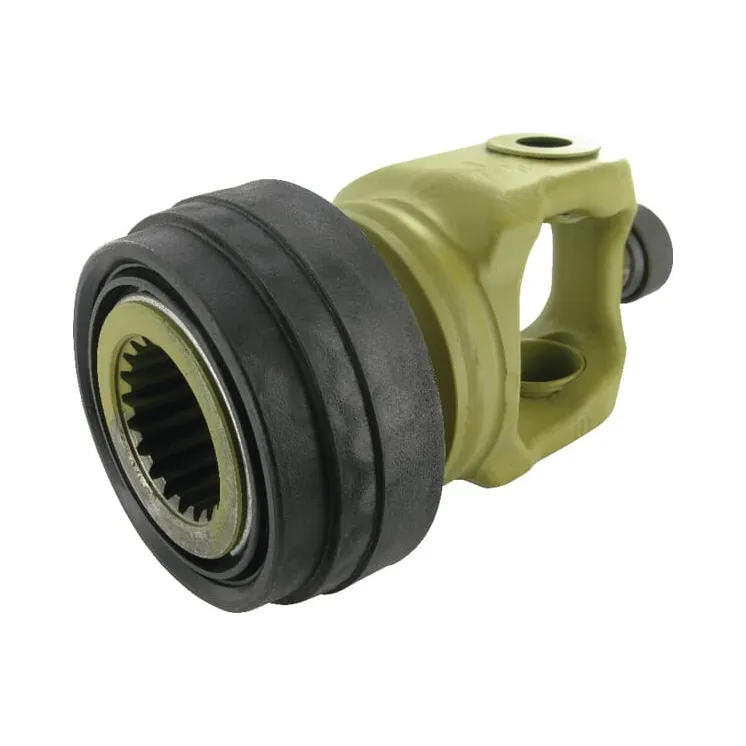

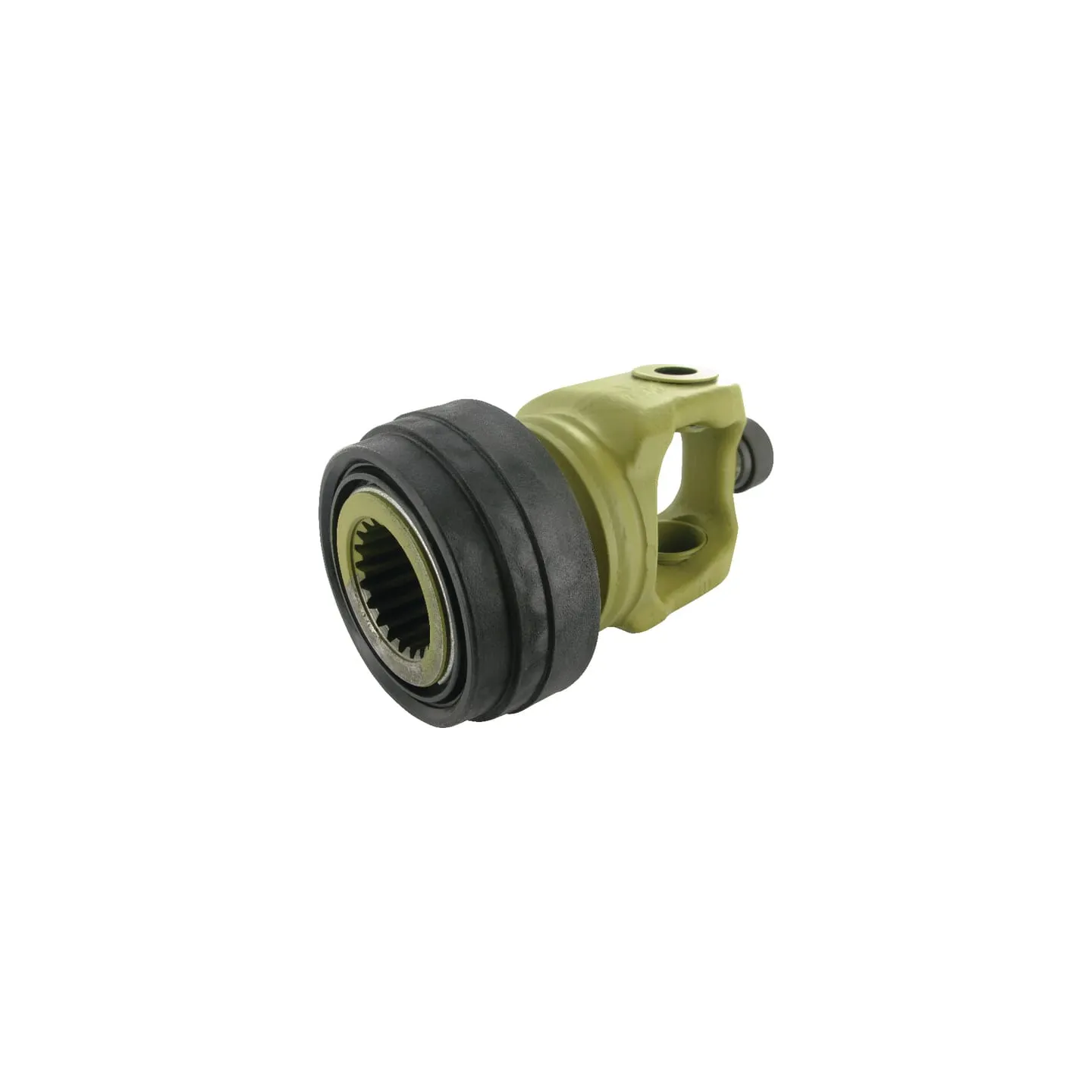

Jūga, ātra atvienošana, 1-3/4-20 spline, P480 3584312M Walterscheid 3584312

Jūga, ātra atvienošana, 1-3/4-20 spline, P480 3584312M 3584312

Name: Jūga, ātra atvienošana, 1-3/4-20 spline, P480 3584312M 3584312
Brand: Walterscheid
SKU: 3584312M
Price: 641 EUR
Availability: InStock

Apmaksas iespējas

641,00 €

AR PVN

4-5 Darba dienas

Jūga, ātra atvienošana, 1-3/4-20 spline, P480 3584312M Walterscheid 3584312

IR NOLIKTAVĀ

ID: 66489

Apraksts

Part number	3584312M
EAN	8432970287884
Unit	Each
Long description	Wide-angle QS quick-disconnect yokes series P 80°
Details	Quick release coupling with stopper
Application range	Original Walterscheid PTO shafts
Properties	Plastic collar clip
Benefits	Easier to couple (automatic collar)
Type	Quick disconnect
Outside connection diameter	44.45 mm
Outside connection diameter	1-3/4 Inch
Connection number of splines/grooves	20
Shaft size code	P480
Locking system	Automatic collar lock
Length	132 mm
Ball diameter	33 mm
Original number equivalent	1137016
