| Part number | 361814 | |
|---|---|---|
| EAN | 8432970171428 | |
| Unit | Each | |

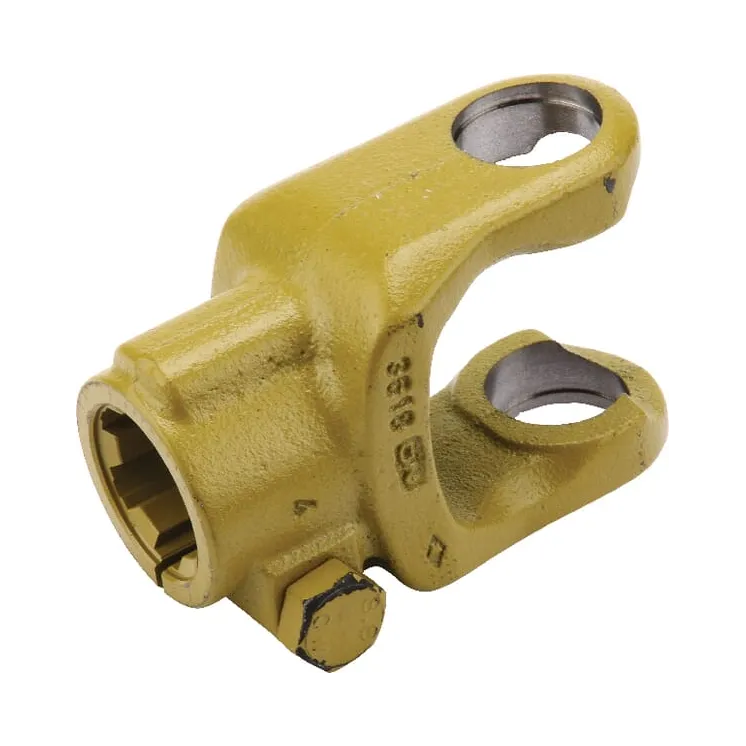

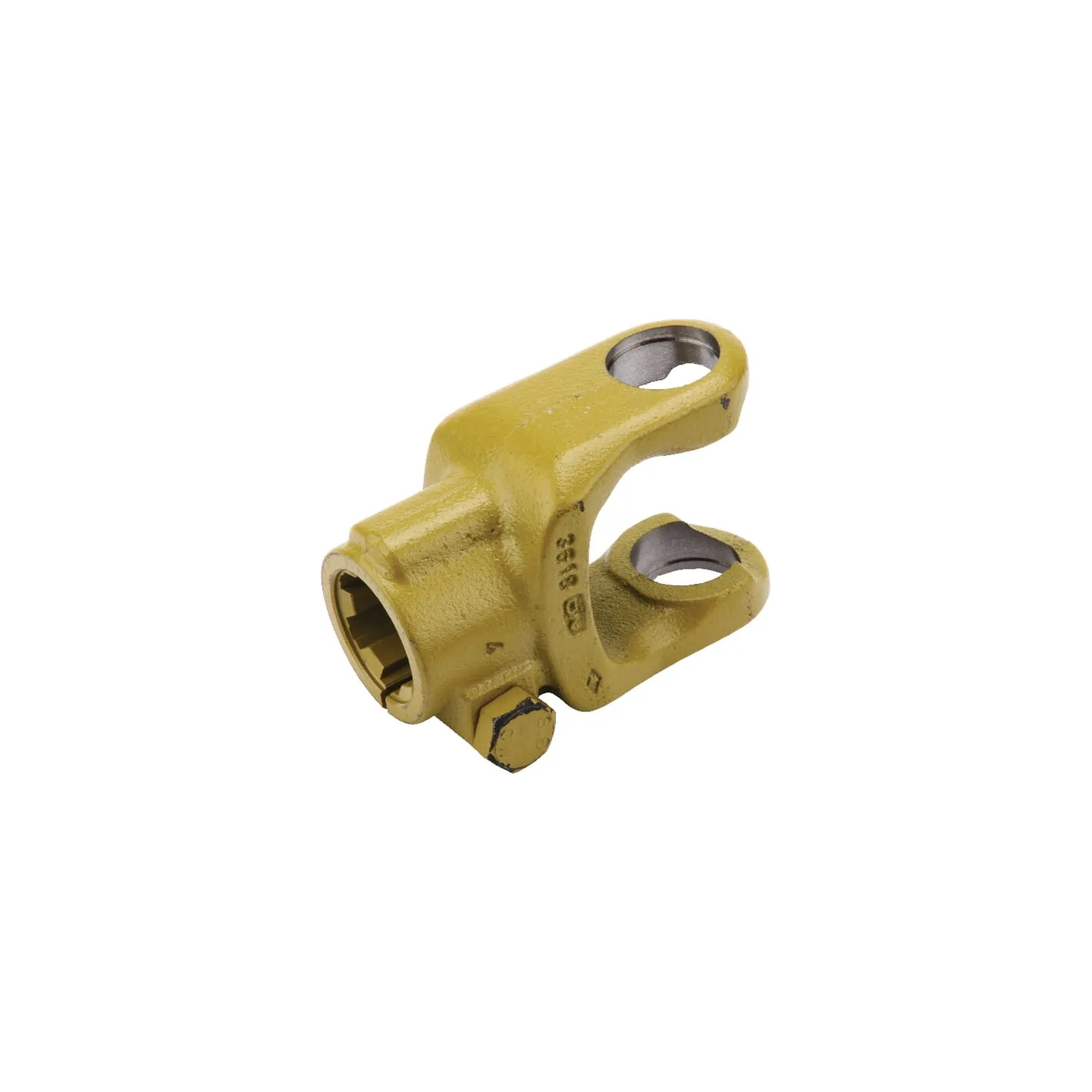

| Long description | Yokes with clamp bolt closure W series / Power Drive | |
| Details | Clamping pin provides effective clamping effect on the shaft | |
| Pros | Clamp bolt ensures good hold on the shaft | |
| Product details |
| |
| Application range |
| |
| Properties |
| |
| Technical info | In accordance with safety standard EN12965, do not use yoke on tractor side for machines which were produced after 2005 | |
| Benefits | Assembly with no play | |
| Includes |
| |
| Type | Clamp bolt | |
| Outside connection diameter | 35 mm | |
| Consists of |
| |
| Connection diameter tolerance code | H8 | |
| Shaft size code |
| |
| Locking system | Clamp bolt (interfering) | |
| NKey width | 10 mm | |
| Length | 118 mm | |
| D2Bolt thread diameter | M12 | |
| Original number equivalent | 1314921 |
