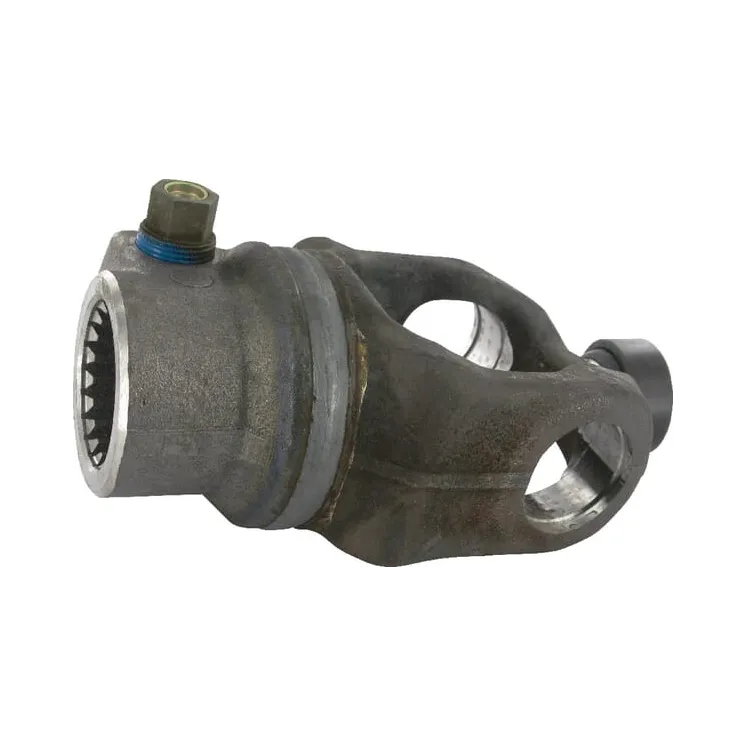

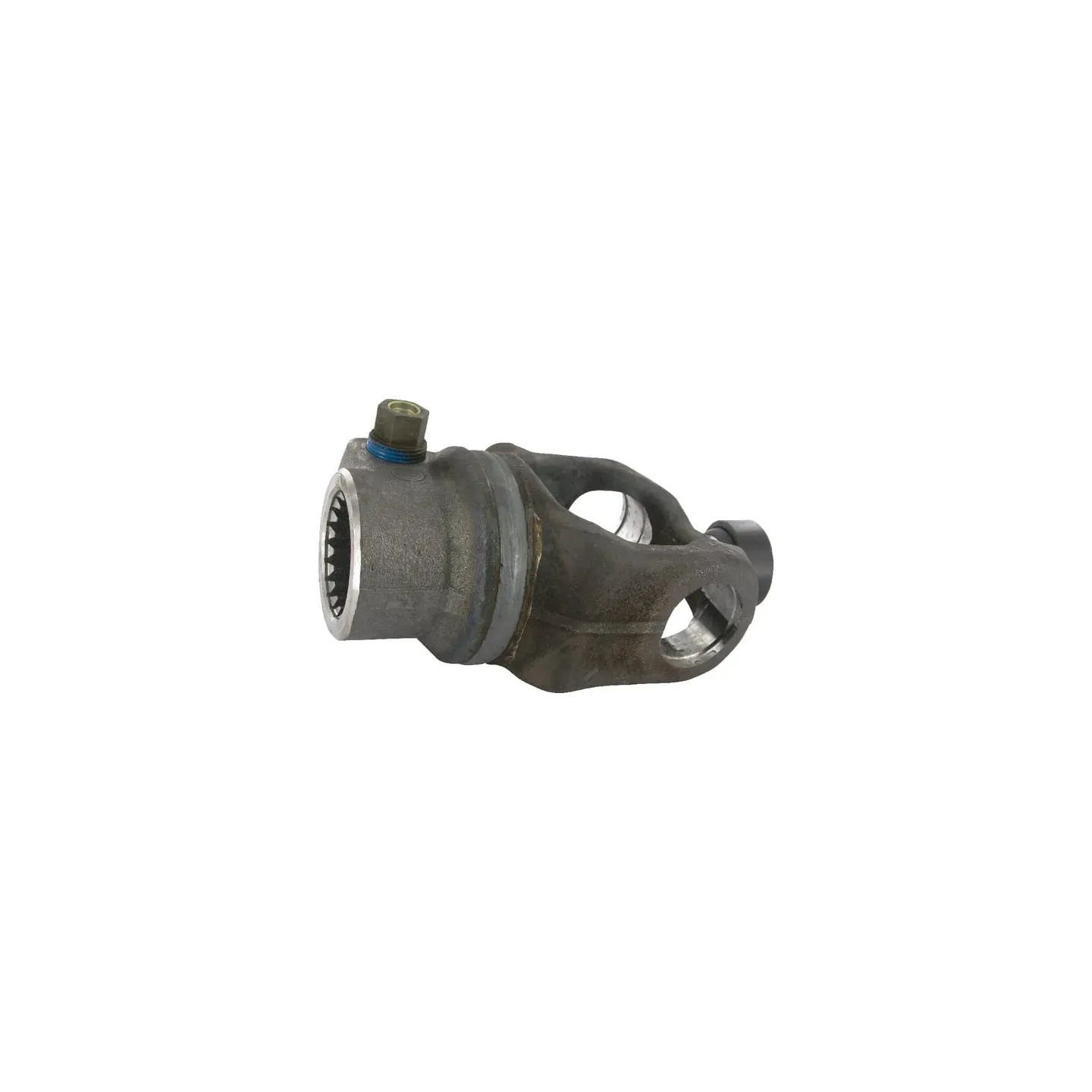

Sjūgs, skavas skrūve, 1-3/4-20 spline, P580 3618332M

Name: Sjūgs, skavas skrūve, 1-3/4-20 spline, P580 3618332M
Brand: Walterscheid
SKU: 3618332M
Price: 671.6 EUR
Availability: InStock

Apmaksas iespējas

671,60 €

AR PVN

4-5 Darba dienas

Sjūgs, skavas skrūve, 1-3/4-20 spline, P580 3618332M Walterscheid

IR NOLIKTAVĀ

ID: 66537

Apraksts

Part number	3618332M
EAN	8432970290303
Unit	Each
Long description	Wide-angle clamping cone yokes with CC lock series P580 / 80°
Details	Conical pin provides effective clamping effect Housing without slot
Application range	Rotary tillers Shredders Wood shredders Stump grinders
Properties	Clamp cone bolt
Technical info	In accordance with safety standard EN12965, do not use yoke on tractor side for machines which were produced after 2005
Benefits	Assembly with no play Clamping pin is not loaded for stretching
Type	Clamp bolt
Consists of	Fork Conical clamping pin
Inside connection diameter	44.45 mm
Inside connection diameter	1-3/4 Inch
Connection number of splines/grooves	20
Shaft size code	P580
Locking system	Clamp cone
Original number equivalent	1134657
