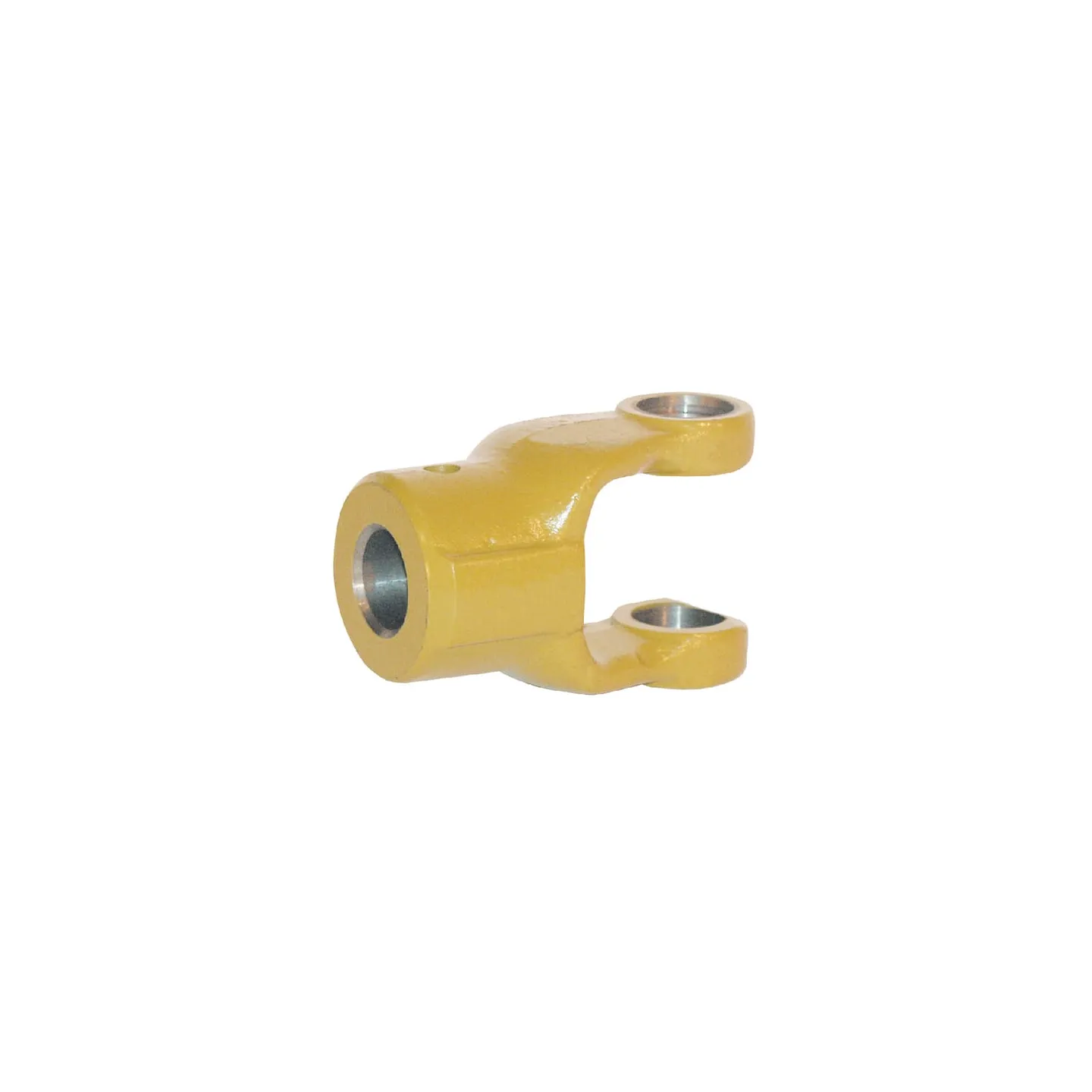

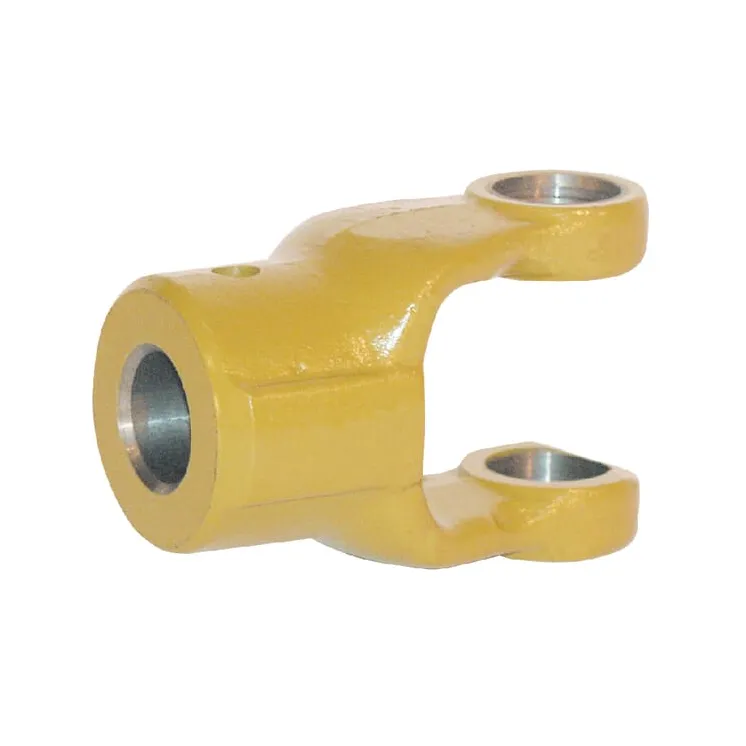

Sjūgs, rumba, 40 mm, W2500/P500 362400

Name: Sjūgs, rumba, 40 mm, W2500/P500 362400
Brand: Walterscheid
SKU: 362400
Price: 267.23 EUR
Availability: InStock

Apmaksas iespējas

267,23 €

AR PVN

4-5 Darba dienas

Sjūgs, rumba, 40 mm, W2500/P500 362400 Walterscheid

IR NOLIKTAVĀ

ID: 66548

Apraksts

Part number	362400
EAN	8435194189798
Unit	Each
Long description	Spring pin yokes with bore series W 2000
Product details	Yoke must be secured with a spring pin Fit R7 = press fit Fit H8 = slide fit
Application range	Original Walterscheid PTO shafts
Technical info	Fork must be secured with a roll pin Fit R7 = press fit Fit H8= sliding fit
Includes	Yoke Excludes spring pin
Type	Hub
Outside connection diameter	40 mm
Consists of	Fork Roll pin not included
Connection diameter tolerance code	H8
Shaft size code	W2500 P500
Locking system	Roll pin bore
d1Key width	13 mm
LLength	118 mm
BWidth	100 mm
dCross cap diameter	36 mm
Bolt thread diameter	M13
Original number equivalent	1320792
