• Sjūgs, skavas skrūve, 1-3/8-21 spline, W2500/P500 361032 Walterscheid

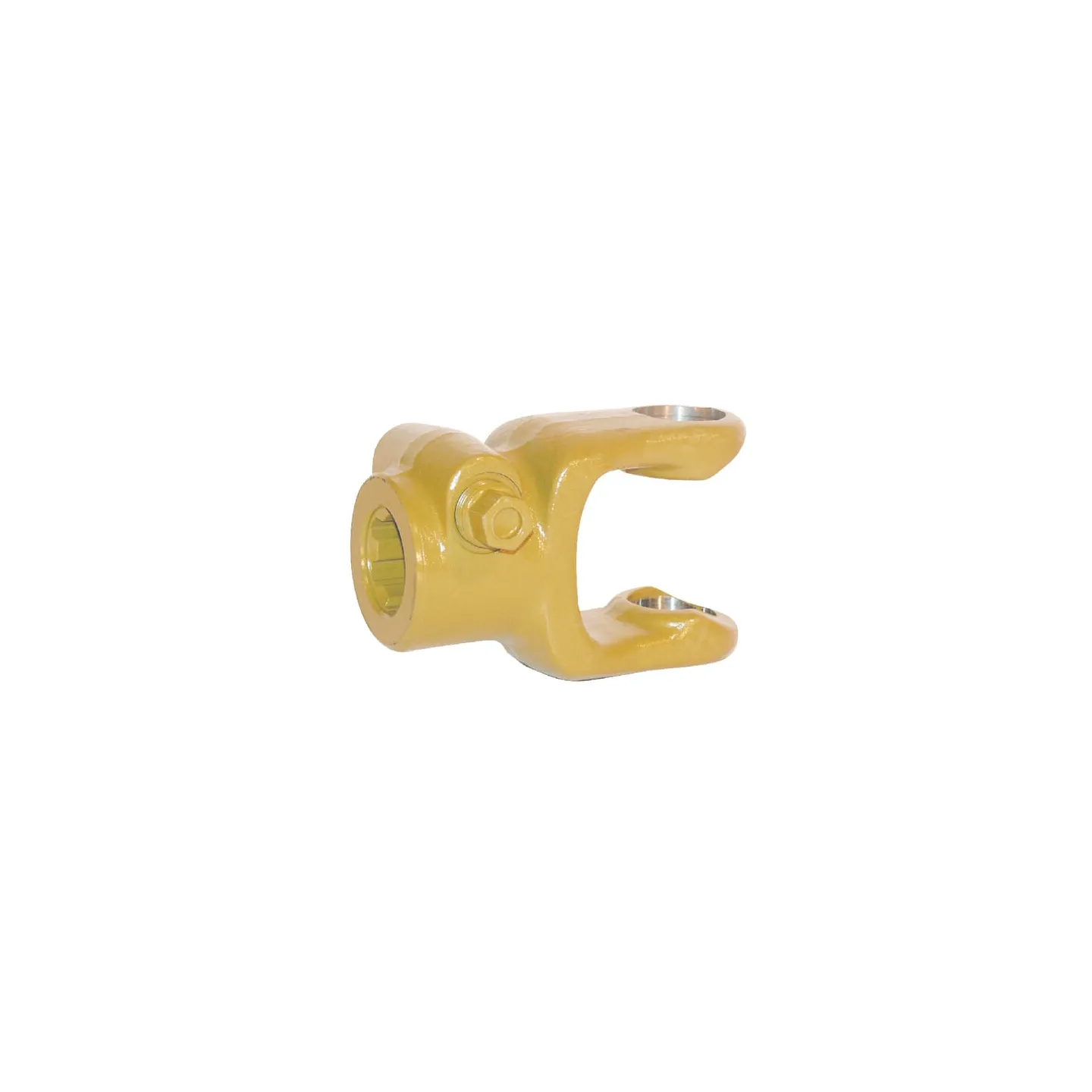

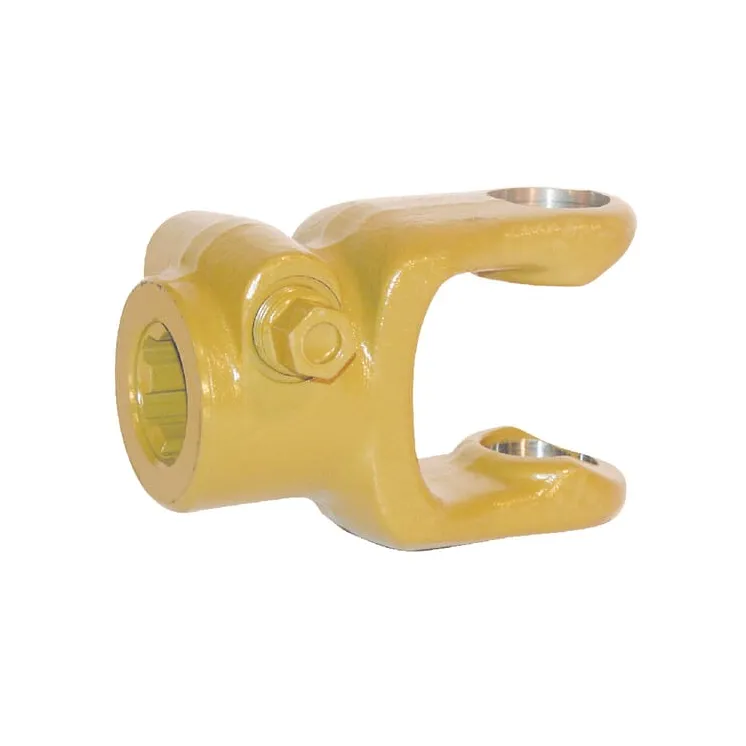

Sjūgs, skavas skrūve, 1-3/8-21 spline, W2500/P500 361032

Apmaksas iespējas
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
310,58 €
AR PVN
4-5 Darba dienas
Sjūgs, skavas skrūve, 1-3/8-21 spline, W2500/P500 361032 Walterscheid
IR NOLIKTAVĀ

66563

Part number
361032
EAN8432970163782
Unit
Each
Long description
Yokes with CC closure (clamp cone) series W / Power Drive
Details
  • Conical pin provides effective clamping effect
  • Housing without slot
Pros
  • Slack-free installation
  • Clamp bolt is not stretched under load
Product details
  • Do not use yoke on tractor side with machines produced after 2005 according to safety standard EN12965
  • Conical screw ensures good hold
  • Housing without saw cut
Application range
  • Rotary tillers
  • Shredders
  • Wood shredders
  • Stump grinders
Properties
Clamp cone bolt
Technical info
In accordance with safety standard EN12965, do not use yoke on tractor side for machines which were produced after 2005
Benefits
  • Assembly with no play
  • Clamping pin is not loaded for stretching
Type
Clamp bolt
Outside connection diameter
12.5 mm
Outside connection diameter
1-3/8 Inch
Consists of
  • Fork
  • Conical clamping pin
Connection number of splines/grooves
21
Shaft size code
  • W2500
  • P500
Locking system
Clamp cone
Length
118 mm
Original number equivalent
1194063
  • Zīmols
  • Norāde
    361032
  • Pieejamās vispirms
    2 vienības:
  • Stāvoklis
    Jauns
  • EAN
    8432970163782
