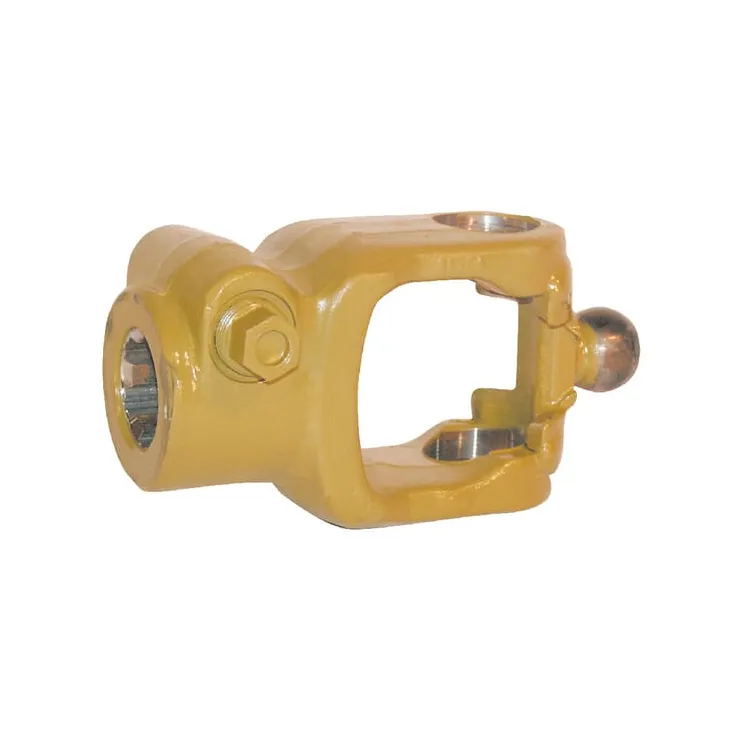

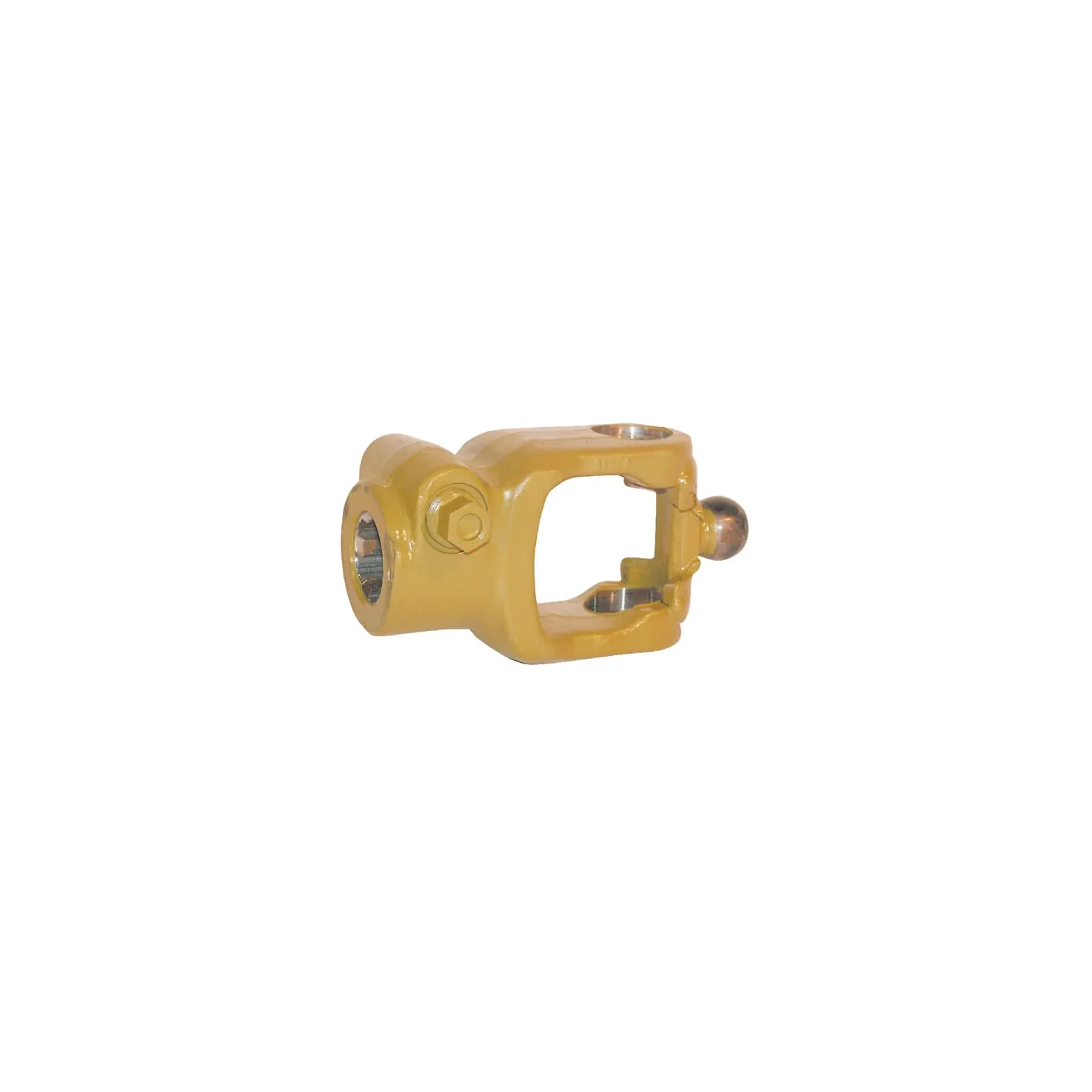

Sjūgs, skavas skrūve, 1-3/8-6 spline, W2580 3610830M Walterscheid 361016 3610830

Sjūgs, skavas skrūve, 1-3/8-6 spline, W2580 3610830M 361016 3610830

Name: Sjūgs, skavas skrūve, 1-3/8-6 spline, W2580 3610830M 361016 3610830
Brand: Walterscheid
SKU: 3610830M
Price: 503.21 EUR
Availability: InStock

Apmaksas iespējas

503,21 €

AR PVN

4-5 Darba dienas

Sjūgs, skavas skrūve, 1-3/8-6 spline, W2580 3610830M Walterscheid 361016 3610830

IR NOLIKTAVĀ

ID: 66566

Apraksts

Part number	3610830M
EAN	8432970334755
Unit	Each
Long description	Wide-angle clamping cone yokes with CC lock series W 2450 / 50°
Details	Conical pin provides effective clamping effect Housing without slot
Application range	Rotary tillers Shredders Wood shredders Stump grinders
Properties	Clamp cone bolt
Technical info	In accordance with safety standard EN12965, do not use yoke on tractor side for machines which were produced after 2005
Benefits	Assembly with no play Clamping pin is not loaded for stretching
Type	Clamp bolt
Outside connection diameter	34.93 mm
Outside connection diameter	1-3/8 Inch
Consists of	Fork Conical clamping pin
Connection number of splines/grooves	6
Shaft size code	W2580
Locking system	Clamp cone
Length	118 mm
Ball diameter	30 mm
Original number equivalent	1135317
