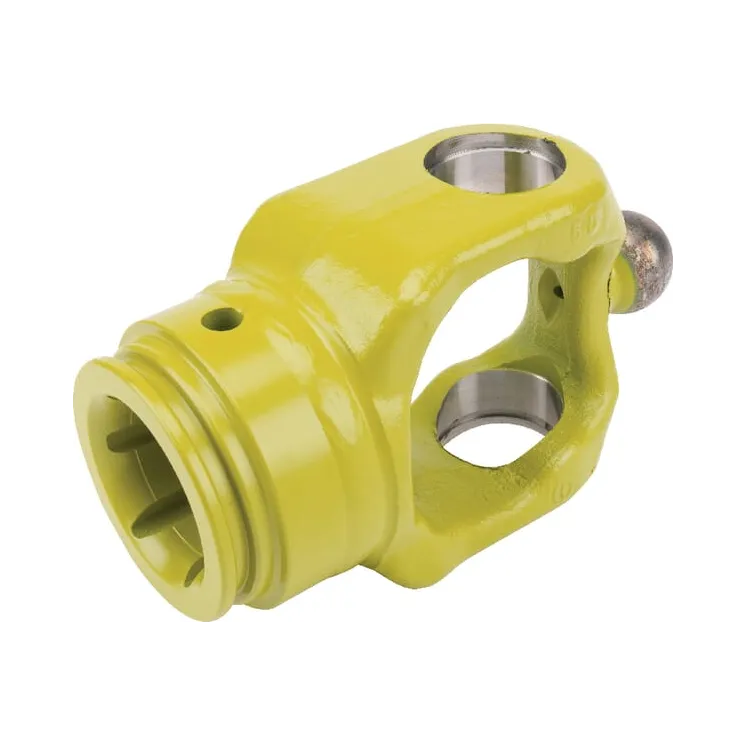

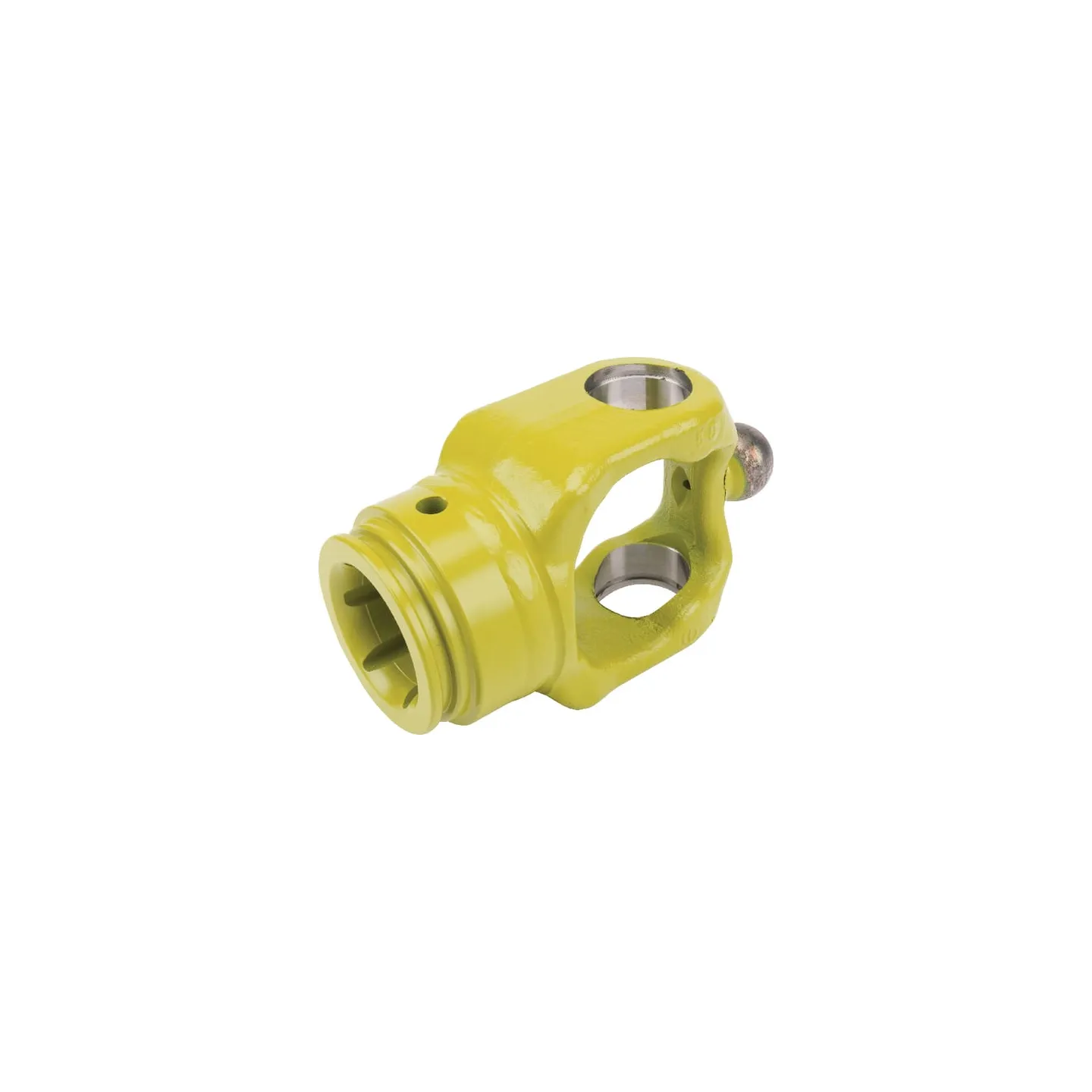

Sjūgs, profila caurule, 51x37mm, W2580 3613116M

Name: Sjūgs, profila caurule, 51x37mm, W2580 3613116M
Brand: Walterscheid
SKU: 3613116M
Price: 453.68 EUR
Availability: InStock

Apmaksas iespējas

453,68 €

AR PVN

4-5 Darba dienas

Sjūgs, profila caurule, 51x37mm, W2580 3613116M Walterscheid

IR NOLIKTAVĀ

ID: 66576

Apraksts

Part number	3613116M
EAN
Unit	Each
Long description	Wide-angle inboard yokes with spring pin hole series W 2480 / 80° with central lubrication
Application range	Original Walterscheid PTO shafts
Properties	Ball has a bore for central lubrication from the cross journal
Technical info	For connecting Walterscheid profile tubes Profile tube must be secured with a roll pin
Type	Profile tube
Outer tube diameter	51 mm
Consists of	Fork Roll pin not included
Inside connection diameter	37 mm
Shaft size code	W2580
Locking system	Roll pin bore
Profile tube code	S4
Length	106 mm
Ball diameter	30 mm
Original number equivalent	1133993
