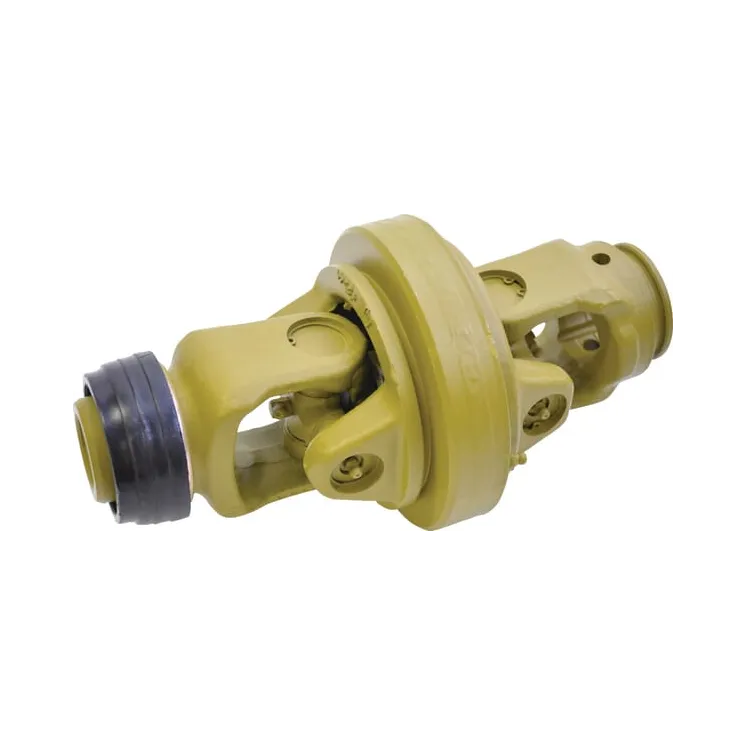

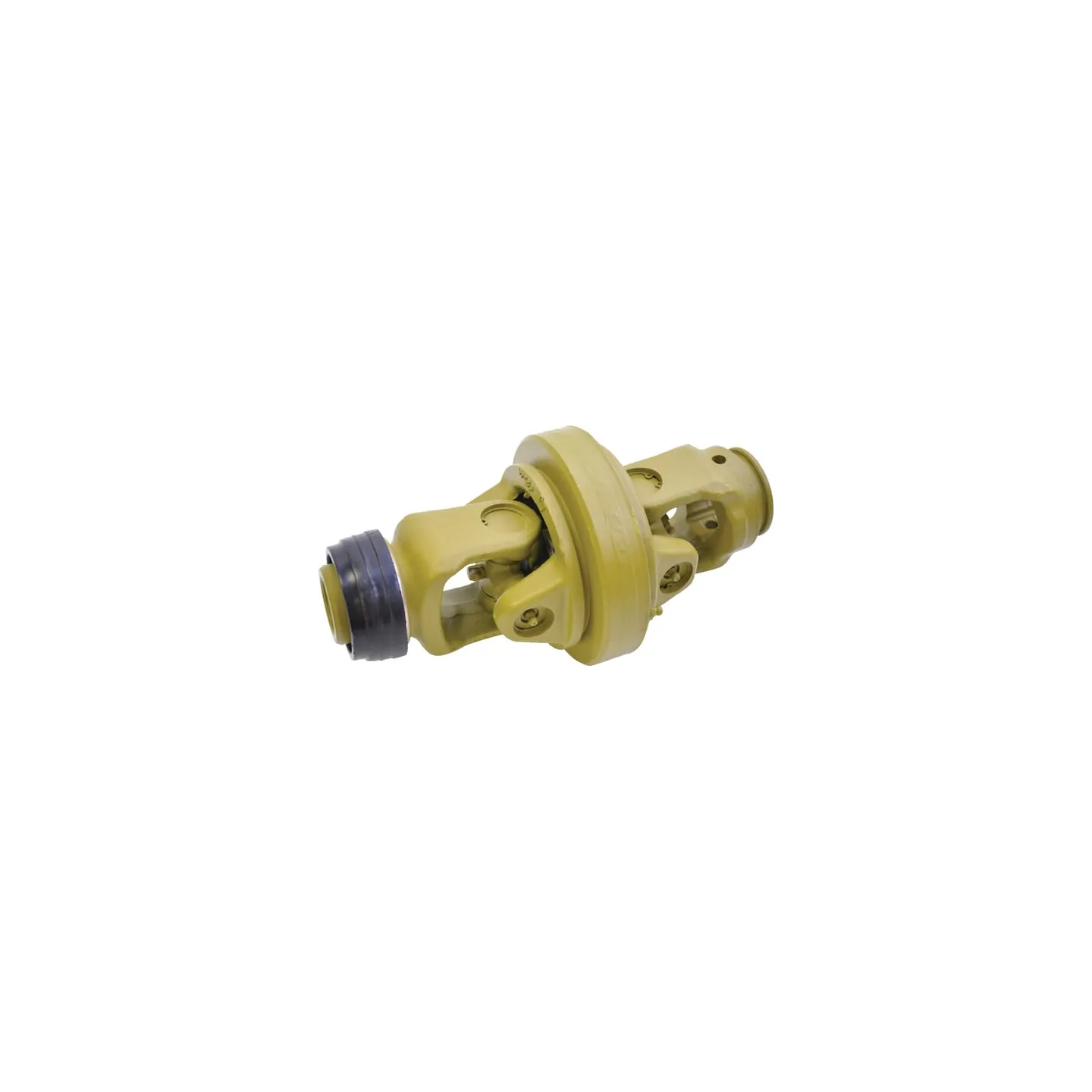

Platleņķa cv savienojums W2580-S4 36831303613104 Walterscheid 138969 3610103613104 36831103613104 VTE1963

Platleņķa cv savienojums W2580-S4 36831303613104 138969 3610103613104 36831103613104 VTE1963

Name: Platleņķa cv savienojums W2580-S4 36831303613104 138969 3610103613104 36831103613104 VTE1963
Brand: Walterscheid
SKU: 36831303613104
Price: 1178.59 EUR
Availability: InStock

Apmaksas iespējas

1 178,59 €

AR PVN

4-5 Darba dienas

Platleņķa cv savienojums W2580-S4 36831303613104 Walterscheid 138969 3610103613104 36831103613104 VTE1963

IR NOLIKTAVĀ

ID: 66593

Apraksts

Part number	36831303613104
EAN
Unit	Each
Application range	Walterscheid PTO shafts
Connection 1, outside diameter	1-3/8 Inch
Consists of	Wide-angle yoke Wide-angle cross journal (2x) Wide-angle double yoke Wide-angle profile tube yoke
Connection 1, number of splines	6
Connection 1, locking type	Collar lock
Connection 2, tube profile type code	S4GA
Total length	345 mm
Original number equivalent	1113319
Max. working angle	80 °
Shaft size code	W2580
Flange outside diameter	180 mm
