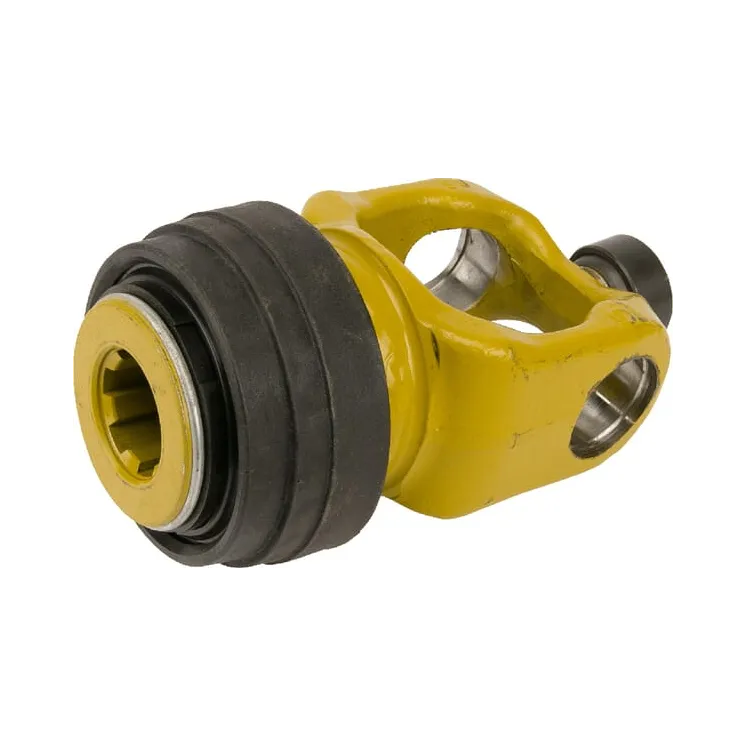

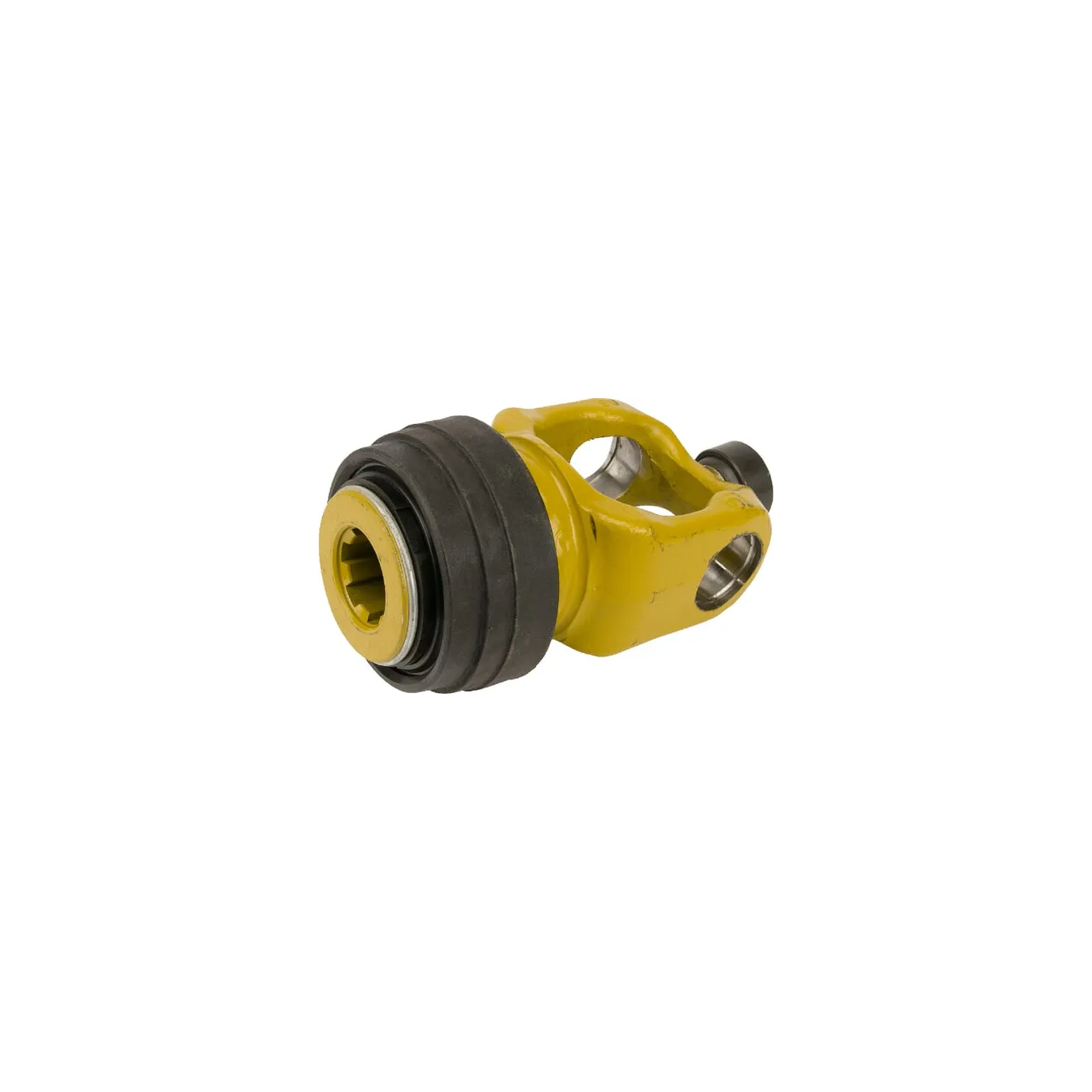

Jaka, ātra atvienošana, 1-3/8-6 spline, P580 3683318M Walterscheid 3683318

Jaka, ātra atvienošana, 1-3/8-6 spline, P580 3683318M 3683318

Name: Jaka, ātra atvienošana, 1-3/8-6 spline, P580 3683318M 3683318
Brand: Walterscheid
SKU: 3683318M
Price: 448.16 EUR
Availability: InStock

Apmaksas iespējas

448,16 €

AR PVN

4-5 Darba dienas

Jaka, ātra atvienošana, 1-3/8-6 spline, P580 3683318M Walterscheid 3683318

IR NOLIKTAVĀ

ID: 66606

Apraksts

Part number	3683318M
EAN	8432970287709
Unit	Each
Long description	Wide-angle QS quick-disconnect yokes series P 80°
Details	Quick release coupling with stopper
Application range	Original Walterscheid PTO shafts
Properties	Plastic collar clip
Benefits	Easier to couple (automatic collar)
Type	Quick disconnect
Outside connection diameter	34.93 mm
Outside connection diameter	1-3/8 Inch
Connection number of splines/grooves	6
Shaft size code	P580
Locking system	Automatic collar lock
Length	139 mm
Ball diameter	39 mm
Original number equivalent	1136908
