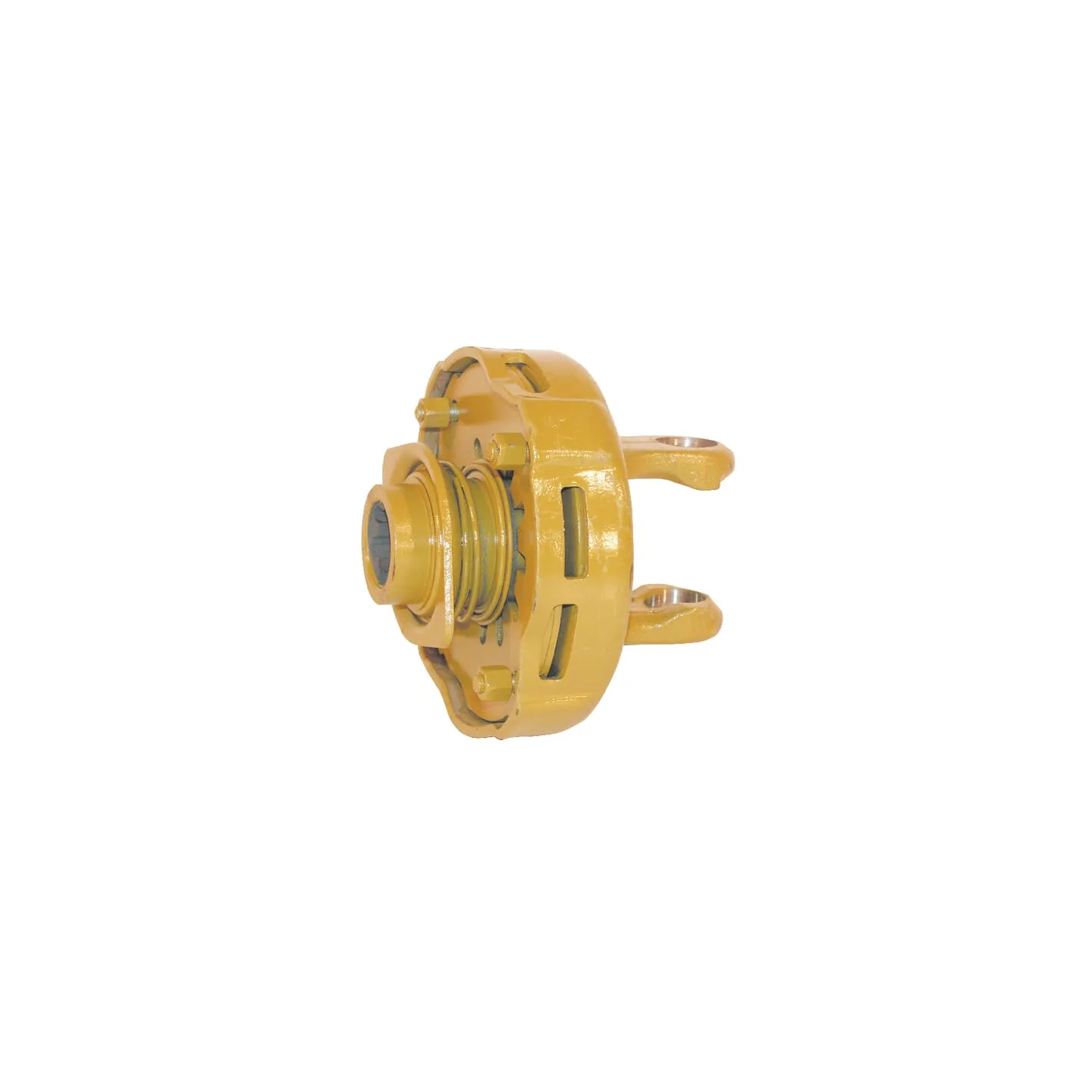

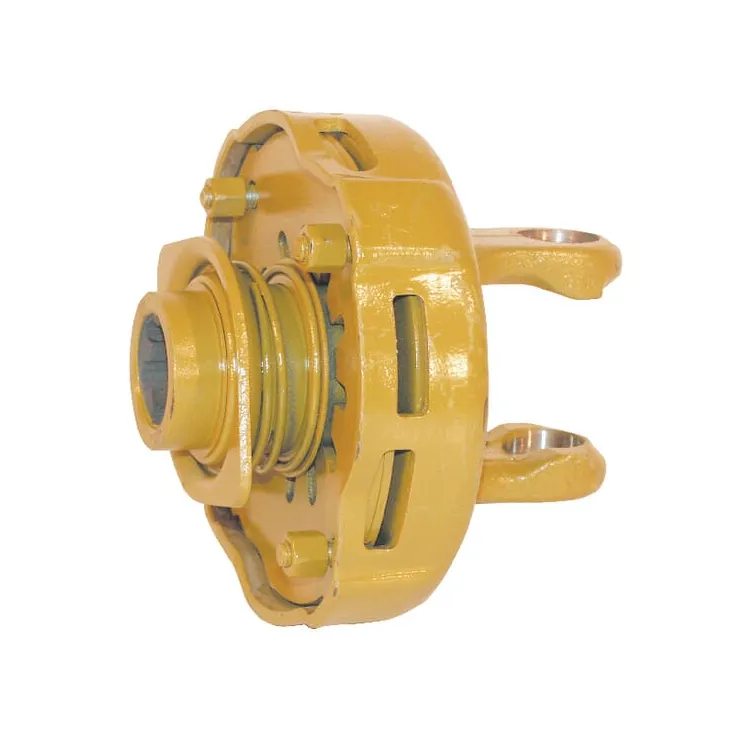

Berzes sajūgs K92 561151675

Name: Berzes sajūgs K92 561151675
Brand: Walterscheid
SKU: 561151675
Price: 616.18 EUR
Availability: InStock

Apmaksas iespējas

616,18 €

AR PVN

4-5 Darba dienas

Berzes sajūgs K92 561151675 Walterscheid

IR NOLIKTAVĀ

ID: 66674

Apraksts

Part number	561151675
EAN	8435194013277
Unit	Each
Long description	Friction clutches with Belleville springs K92 cpl. 2200, 2300, 2400, I
Details	Compact construction -No interruption of power transmission Absorb peak loads for a short time
Application range	Mowers Rotary harrows Pick-up
Properties	Independent of direction of rotation Power transmission via friction discs Not adjustable Suitable as a starting clutch
Technical info	Observe maintenance instructions
Benefits	Small installation space Torque retention Smooth transition
Clutch type code	K92
Connection locking type	Collar lock
Outside connection diameter	1-3/8 Inch 1.375 Inch
Connection number of splines/grooves	6
Shaft size code	W2300 P300
Max. rotation speed	1000 r/min
Max static torque	750 N·m
Cross cap diameter	27 mm
Cross length	84 mm
Outside diameter	170 mm
LClutch part length	44 mm
Original number equivalent	1053333
Suitable for machine/vehicle brand	Freudendahl Matsui Jernsen Carroy Herriau Kubota Glaenzer
