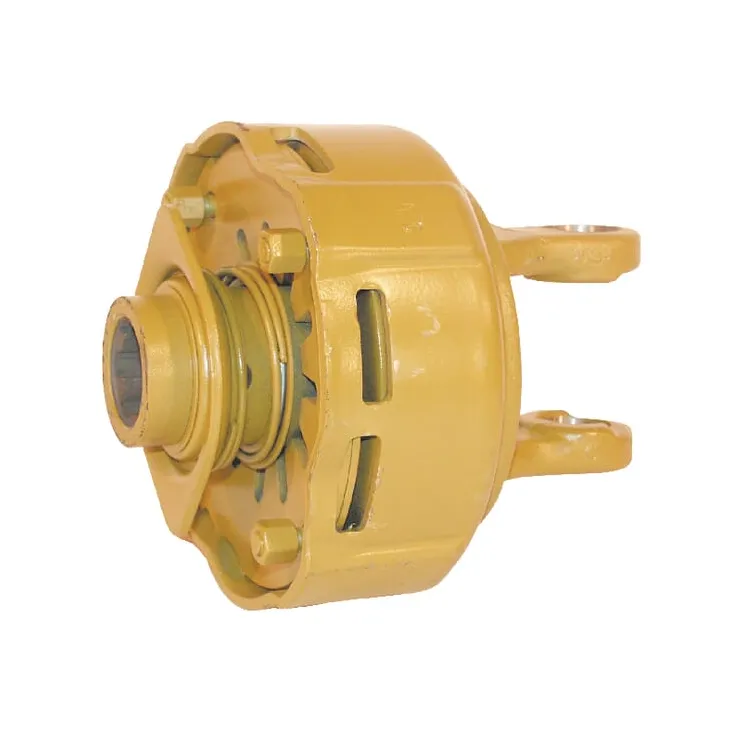

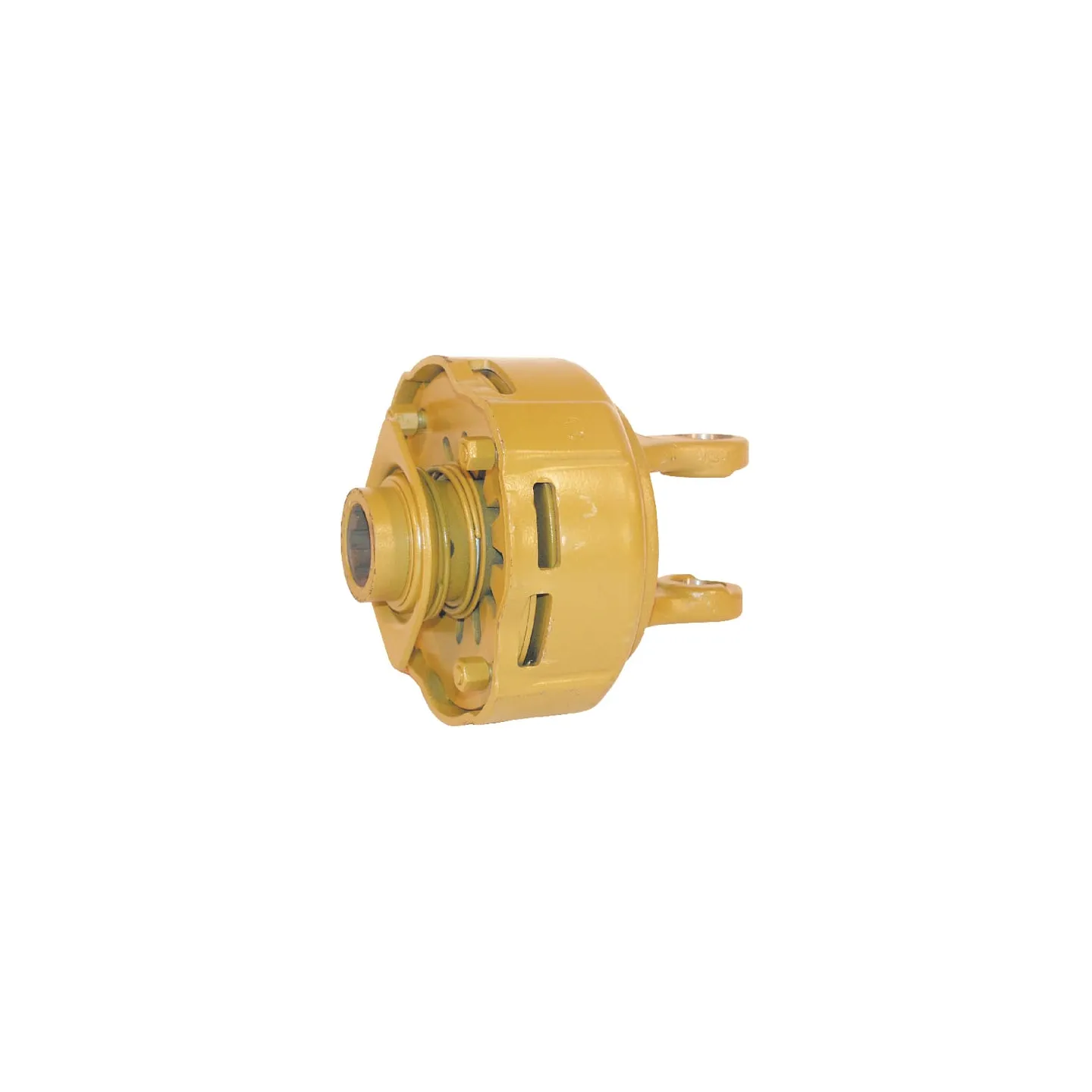

Berzes sajūgs. K92/4 W2300 120daNm 5621816120

Name: Berzes sajūgs. K92/4 W2300 120daNm 5621816120
Brand: Walterscheid
SKU: 5621816120
Price: 720.74 EUR
Availability: InStock

Apmaksas iespējas

720,74 €

AR PVN

4-5 Darba dienas

Berzes sajūgs. K92/4 W2300 120daNm 5621816120 Walterscheid

IR NOLIKTAVĀ

ID: 66693

Apraksts

Part number	5621816120
EAN	8435194018760
Unit	Each
Long description	Friction clutches with Belleville springs K92 / 4 cpl. 2300, 2400, 2500
Details	Compact construction -No interruption of power transmission Absorb peak loads for a short time
Application range	Mowers Rotary harrows Pick-up
Properties	Independent of direction of rotation Power transmission via friction discs Not adjustable Suitable as a starting clutch
Technical info	Observe maintenance instructions
Benefits	Small installation space Torque retention Smooth transition
Clutch type code	K92/4
Connection locking type	Collar lock
Outside connection diameter	1-3/8 Inch 1.375 Inch
Shaft size code	W2300
Max. rotation speed	1000 r/min
Max static torque	1200 N·m
Cross cap diameter	27 mm
Cross length	75 mm
Outside diameter	173 mm
LClutch part length	64 mm
Original number equivalent	1167035
Suitable for machine/vehicle brand	John Deere Kuhn Kverneland
