Berzes sajūgs K90TF W2300 561003890 561000890

Name: Berzes sajūgs K90TF W2300 561003890 561000890
Brand: Walterscheid
SKU: 561003890
Price: 719.01 EUR
Availability: InStock

Apmaksas iespējas

719,01 €

AR PVN

4-5 Darba dienas

Berzes sajūgs K90TF W2300 561003890 Walterscheid 561000890

IR NOLIKTAVĀ

ID: 66695

Apraksts

Part number	561003890
EAN
Unit	Each

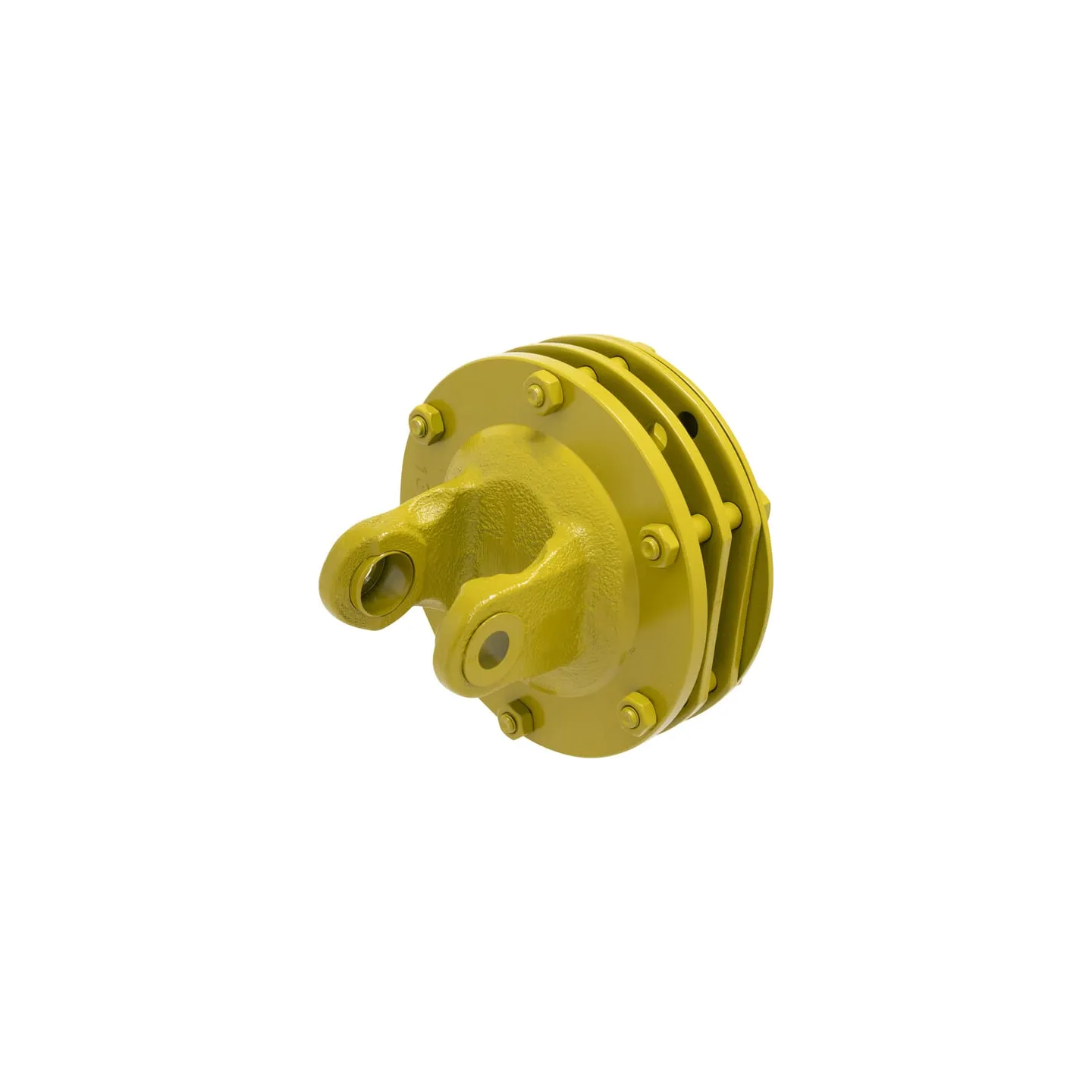

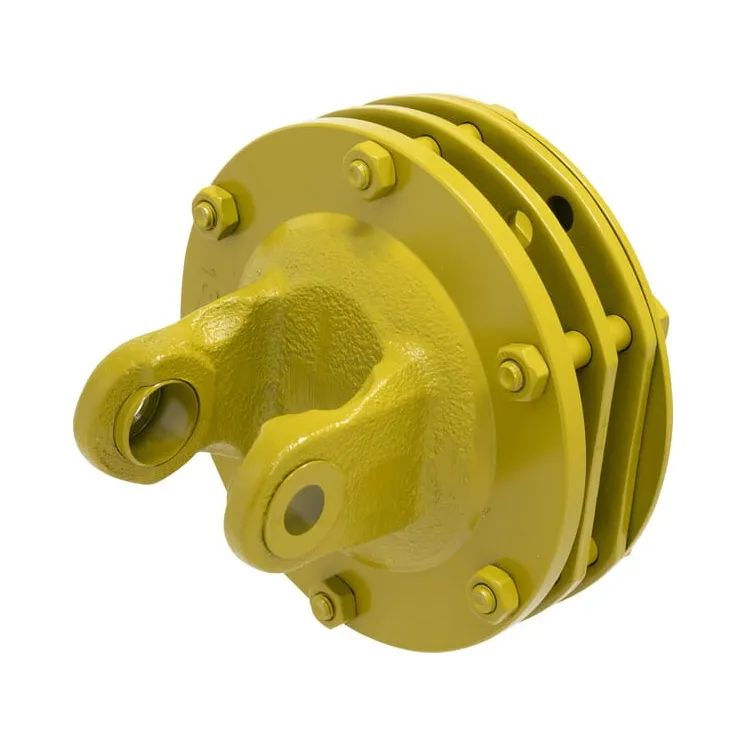

Long description	Friction plate clutches with plate springs K90TF/K90/4TF
Pros	No power interruption Catches peak loads for short periods of time Maintains torque Smooth running
Product details	Independent rotation direction Power transmission via skid plates Adjustable Suitable as starting torque Mowers Power harrows Pick-up
Clutch type code	K90
Connection locking type	Clamp bolt (interfering)
Outside connection diameter	1-3/8 Inch 1.375 Inch
Connection number of splines/grooves	6
Shaft size code	W2300 P300
Max. rotation speed	1000 r/min
Max static torque	900 N·m
Cross cap diameter	27 mm
Cross length	84 mm
Outside diameter	190 mm
Clutch part length	45 mm
Original number equivalent	1605578
Suitable for machine/vehicle brand	IFA
