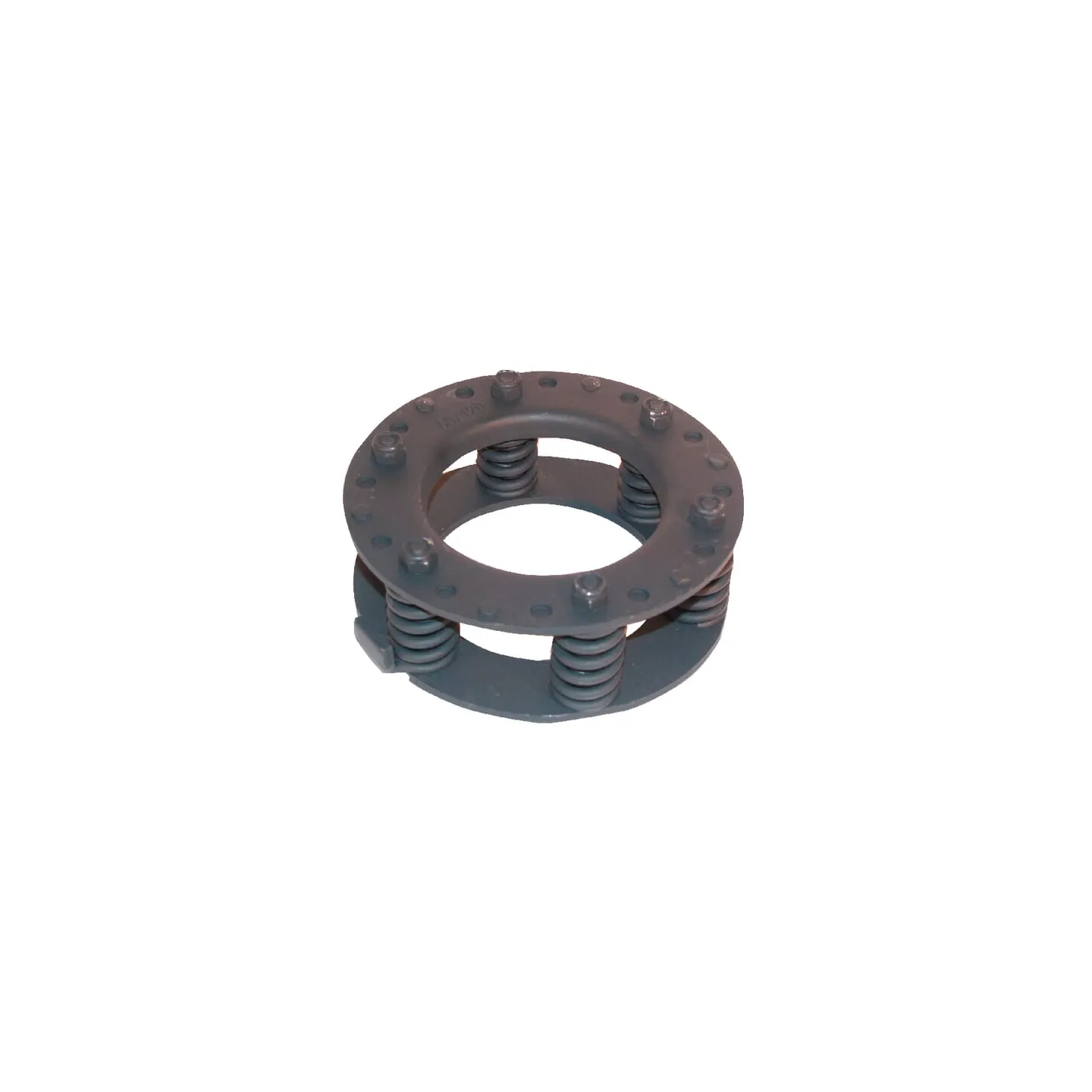

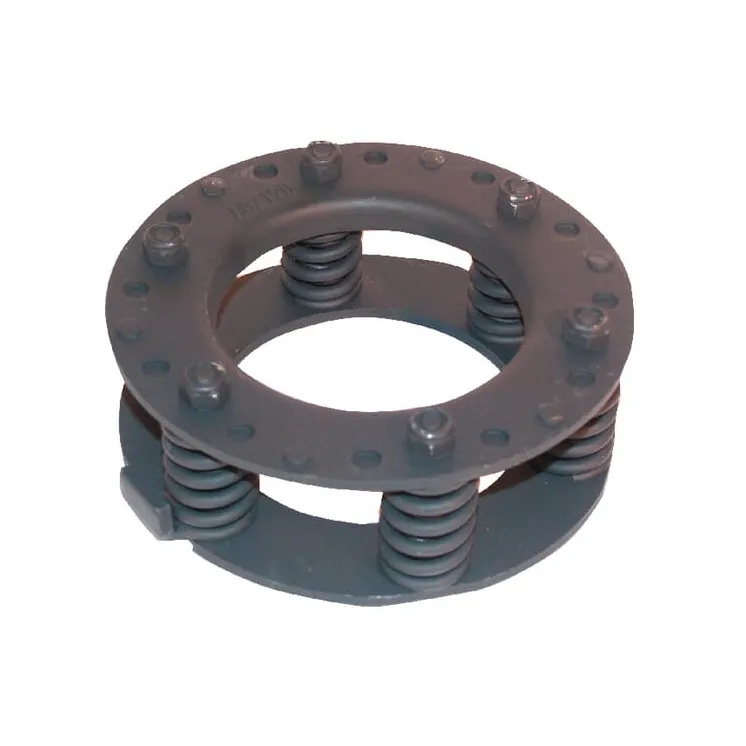

Atsperu komplekts K96 60/120 daNm 56350160120

Name: Atsperu komplekts K96 60/120 daNm 56350160120
Brand: Walterscheid
SKU: 56350160120
Price: 243.96 EUR
Availability: InStock

Apmaksas iespējas

243,96 €

AR PVN

4-5 Darba dienas

Atsperu komplekts K96 60/120 daNm 56350160120 Walterscheid

IR NOLIKTAVĀ

ID: 66703

Apraksts

Part number	56350160120
EAN	8435194028592
Unit	Each
Properties	The circlip has 4 different assembly positions, each with a different maximum torque Position 1 = circlip at minimum in state 1 Position 2 = circlip at maximum in state 1 Position 3 = circlip at minimum in state 2 Position 4 = circlip at maximum in state 2
Position 1 torque for K96 clutch	53 daNm
Position 1 torque for K96/4 clutch	105 daNm
Position 2 torque for K96 clutch	60 daNm
Position 2 torque for K96/4 clutch	120 daNm
Position 3 torque for K96 clutch	70 daNm
Position 3 torque for K96/4 clutch	138 daNm
Position 4 torque for K96 clutch	78 daNm
Position 4 torque for K96/4 clutch	153 daNm
Input torque	60 daNm 120 daNm
Original number equivalent	1377675
